Quick Details
-
Model Number:
-
XT-31B
-
Max. Current:
-
15A
-
Mechanical Life:
-
500,000times above, 500,000times above
-
Terminal Type:
-
Screw Terminals & Quick connection terminals
-
Contact Form:
-
TPST
-
DC voltage:
-
15a 12vdc
-
Rating load:
-
15A 250VAC /25A 250VAC
-
Electrical Life:
-
100,000times above
-
Protection degree:
-
IP40
-
Mouting Hole size:
-
12mm
-
Material:
-
PC crust, brass terminal and silver contact
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XURUI
-
Model Number:
-
XT-31B
-
Max. Current:
-
15A
-
Mechanical Life:
-
500,000times above, 500,000times above
-
Terminal Type:
-
Screw Terminals & Quick connection terminals
-
Contact Form:
-
TPST
-
DC voltage:
-
15a 12vdc
-
Rating load:
-
15A 250VAC /25A 250VAC
-
Electrical Life:
-
100,000times above
-
Protection degree:
-
IP40
-
Mouting Hole size:
-
12mm
-
Material:
-
PC crust, brass terminal and silver contact

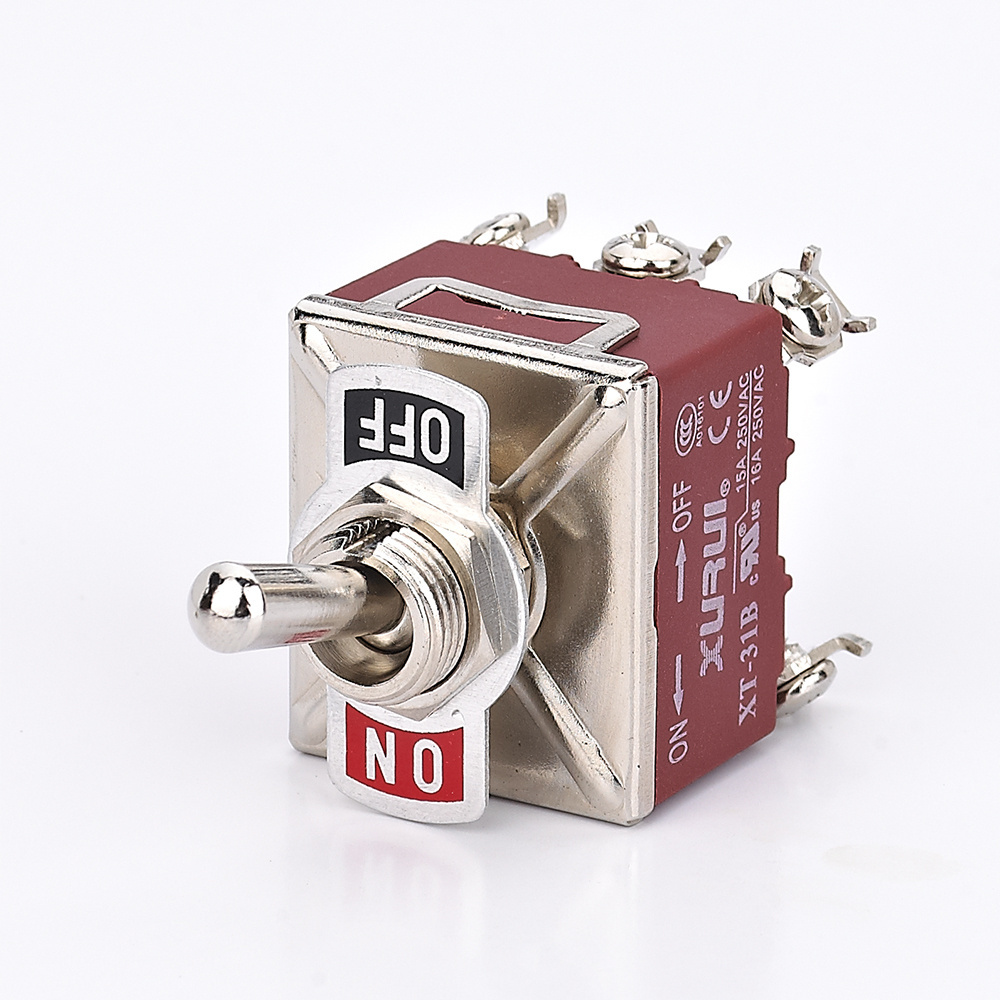

Tpst three pole single throw on off 15a 250v toggle switch with 6.3mm connection faston
CHARACTERISTICS:
Adopt thermoplastic crust,compact construction,and Simple installation;
May install the
protecting cap,can against oil and dustproof;
Hand reset and automatic reset for flexible choice;
Widely used in Electrical equipment,automatic machine,communication equipment and instrument,electro motion tool etc.
Technical Specification:
|
Item |
Data |
|
|
Rating load |
15A/250VAC,25A/250VAC
|
|
|
Operating frequency |
30times/min |
|
|
Insulation resistance |
100M Ω Above DC500V |
|
|
Contact resistance |
25m Ω initial value |
|
|
Withstand voltage |
Non-connection wire |
1000VAC |
|
Every terminal |
1500VAC |
|
|
Vibration |
Misoperation |
10-55Hz Amplitude 1.5mm |
|
Impact |
Durable |
1000m/s ² |
|
Misoperation |
300m/s ² |
|
|
Life |
Electrical |
100,000 above |
|
Mechanical |
500,000 above |
|
|
Protection degree |
IP40 |
|
|
Operating temperature |
-25~+80 ℃ |
|
|
Operating humidity |
< 85% |
|
Mounting Holes & Product Structure:
Terminal Form:
Dimension Drawing:
Model:XT-31B (ON-OFF, TPST)
Model: XT-31A (ON-OFF, TPST)
Our toggle switch full models:
Established in 2002, Zhejiang Xurui Electronic Co., Ltd is a factory specialized in the research, development and manufacture micro switch, limit switch, toggle switch, foot switch, solid state relay, reed switch, proximity switch and mercury switch.
We have attained many quality certifications like U L, T U V, C E, C C C and others by our strict quality management and perfect after-sale service system. Therefore, our products enjoy very high reputation in the market of America, Mexico, Brazil, Germany, UK, Spain, Turkey, the middle east, Southeast Asia, and other markets.
Our company is taking the quality first as the objective, the perfection as the policy.
It is our invariable purse to provide much better products and perfect service to our customers.
Our Service:
1. Factory supply directly and have competitive price.
2. Short delivery time: stock 2 days, order around 15-20days.
3. New packing design and new product reseach development.
4. Accept to customize products up to specification.
5. Provide prompt service and after-sale service.
