4MP competitive price 24 hours full color night vision IP67 Human body detection 2.8mm Internal mic Small Turret POE IP camera

4MP competitive price 24 hours full color night vision IP67 Human body detection 2.8mm Internal mic Small Turret POE IP camera

FOB Reference Price: Get Latest Price

≥2 Pieces

US $26

≥500 Pieces

US $25

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: YCX

Model Number:: W774CB93BA

Image Sensor:: 1/3" CMOS SC4336P

Effective Pixels:: 4 megapixels

WDR:: WDR / HDR

BLC /HLC:: Support

DNR:: 2D/3D DNR

Video Standard:: H.264/H.265/H.265+

Built-in Mic:: Yes

Led:: 2PCS Soft & Warm Supplemental Light

Distance:: 20-30 M

Focal length:: F1.0 2.8mm fixed lens

Quick Details

Special Features:: NIGHT VISION, Motion Detection, Waterproof / Weatherproof

Function:: Built-in Mic, Wide Angle, One-way Audio

Customized support:: Online technical support, Customized logo, OEM, ODM

Place of Origin:: Guangdong, China

Brand Name:: YCX

Model Number:: W774CB93BA

Image Sensor:: 1/3" CMOS SC4336P

Effective Pixels:: 4 megapixels

WDR:: WDR / HDR

BLC /HLC:: Support

DNR:: 2D/3D DNR

Video Standard:: H.264/H.265/H.265+

Built-in Mic:: Yes

Led:: 2PCS Soft & Warm Supplemental Light

Distance:: 20-30 M

Focal length:: F1.0 2.8mm fixed lens

4MP Competitive Price Full color POE IP camera

Product Description

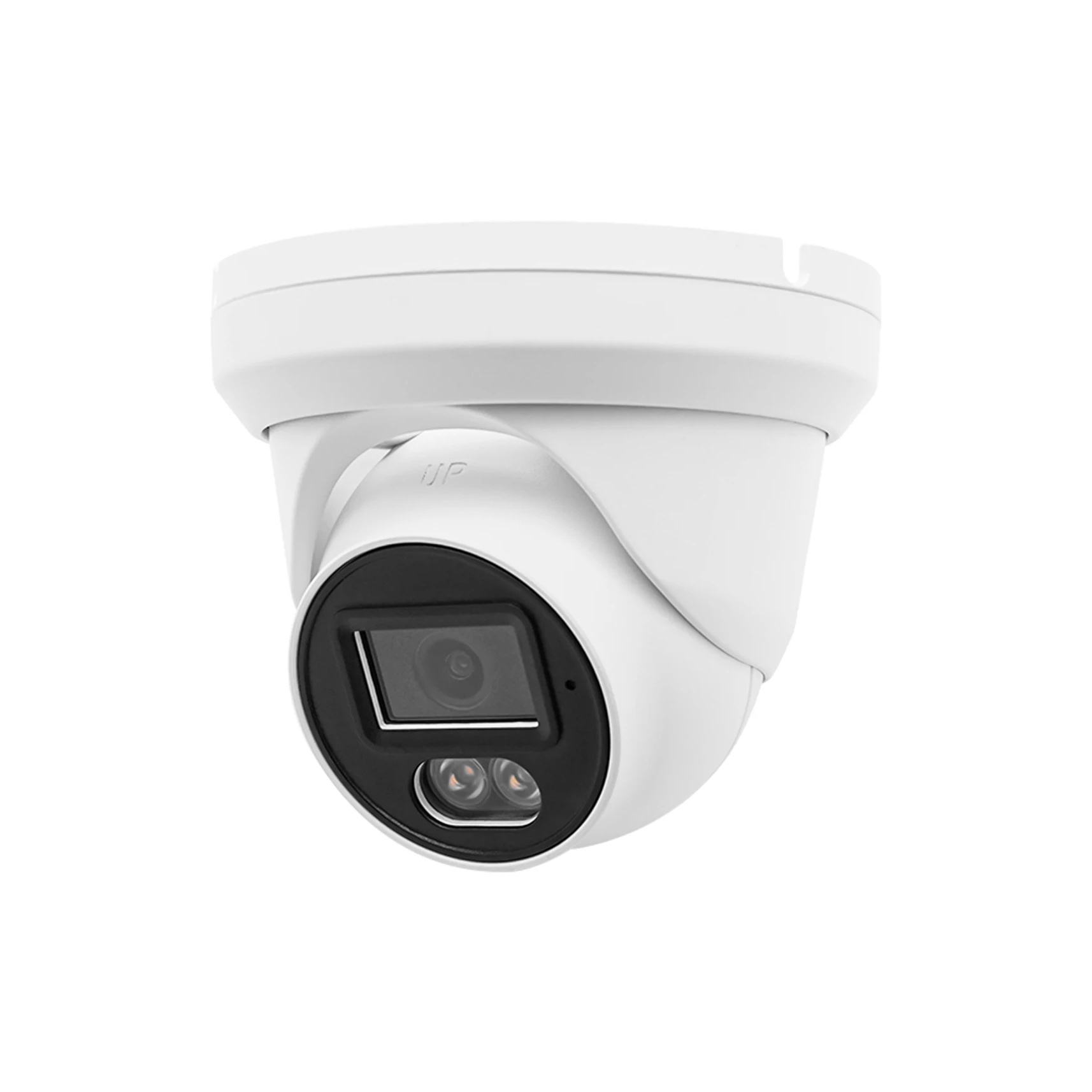

4MP Turret POE IP camera

* 1/3" CMOS sensor
* 2560x1440Presolution
* Low illumination 0.01Lux
* Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter, IR-CUT
* WDR, Mirror, Defogging
* Multiply Style OSD Overlay,Motion Detection, Privacy Mask
* RTSP and Onvif 17.06 compatible with many third-party NVR
* H.264/H.265 dual-stream media server
* Easy-to-use P2P Cloud service
* Lightning protection 4000V
* Strong water-proof housing, IP66
* 2PCS Soft & Warm Supplemental Light, Light distance 20-30 meters
* F1.0 2.8mm fixed lens
* Built in microphone

Specification

Model	W774CB93BA
Camera
Image Sensor	1/3" CMOS SC4336P
DSP	SigmarStar SSC377
Effective Pixels	4 megapixels
Electronic Shutter	AUTO, 1/25s ~ 1/100000s
Min. Illumination	0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/Night	Auto/Color/(B/W)/Timing
WDR	WDR / HDR
White Balance	Auto/Manual
BLC /HLC	Support
DNR	2D/3D DNR
Other	AGC,Motion Detection,Privacy Mask,Flip ,OSD overlay
Encode
Video Standard	H.264/H.265/H.265+
Video Resolution	MainStream:25fps@2560x1440,30fps@2304x1296/1080P/720P,etc. Sub stream:640x360P/cif@30fps,etc.
Video Bitrates	64Kbps - 6Mbps, VBR/CBR
Audio Standard	G.711-u/G.711-a/AAC
Built-in Mic	Yes
Smart Detection	Human Detection Motion Detection
Led
Led	2PCS Soft & Warm Supplemental Light
Distance	20-30 M
Lens
Focal length	F1.0 2.8mm fixed lens
Optional Function
PoE, Microphone
Network Services
Protocol	HTTP/RTSP/FTP/SMTP/DHCP/RTMP/NTP, etc.
P2P	Yes
Web	IE , Firefox (32bit esr), etc.
Media	CMS, Android, IOS
ONVIF	17.06 compatible
General
Network Port	1-RJ45, 100Mbps, POE optional
Power Supply	12 VDC ± 10%
Power Consumption	< 8 W
Operating Temp.	-30℃-(+60)℃, 10%-90%RH
