Quick Details
-
Output Voltage (V):
-
220V
-
Output Frequency:
-
50Hz
-
Pre-sales project design:
-
Yes
-
Generator type:
-
Three phase AC permanent magnet synchronous generator
-
Rated power:
-
5000W
-
Rated Voltage:
-
96V/120/220V
-
Rated wind speed:
-
11m/s
-
Blade Material:
-
Reinforced glass fiber
-
Certificate:
-
CE/ROHS/ISO9001:2008
-
Warranty:
-
2 Years
-
Keywords:
-
wind power system low rpm permanent generator 120v 5kw wind turbine
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WON
-
Model Number:
-
WON-WT-HG10000
-
Output Voltage (V):
-
220V
-
Output Frequency:
-
50Hz
-
Pre-sales project design:
-
Yes
-
Generator type:
-
Three phase AC permanent magnet synchronous generator
-
Rated power:
-
5000W
-
Rated Voltage:
-
96V/120/220V
-
Rated wind speed:
-
11m/s
-
Blade Material:
-
Reinforced glass fiber
-
Certificate:
-
CE/ROHS/ISO9001:2008
-
Warranty:
-
2 Years
-
Keywords:
-
wind power system low rpm permanent generator 120v 5kw wind turbine
High efficiency 10kw 120v wind power system permanent generator low rpm 5kw wind turbine

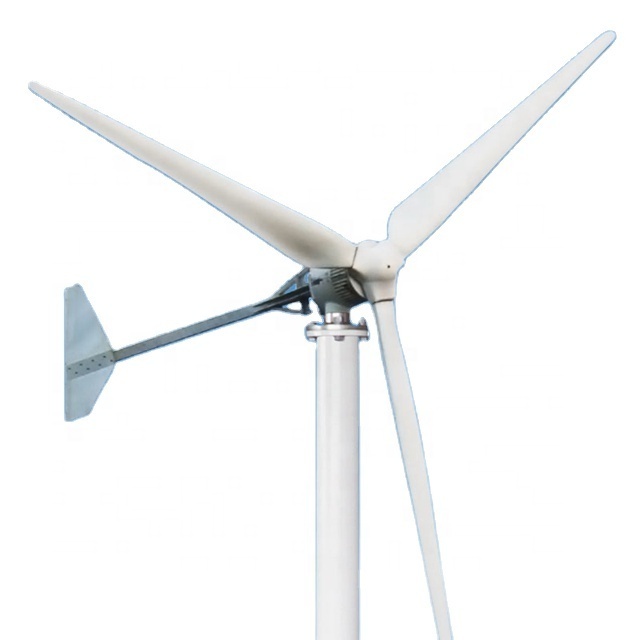

1 .96V/120V/220V 5 K W Horizontal axis G type wind turbine from China for farm home use.
2 .Low start-up speed, high wind power utilization, light, cute, low vibration.
3 .Human-friendly design, easy to install and maintain.
4 .Blades using reinforced glass fiber, helped with optimized structure and aerodynamic shape, it enhanced wind power coefficient and power generating capacity.
5 .Using patented permanent magnet rotor AC generator and special stator, it effectively reduces torque resistance, makes wind turbines and generators have more good matching characteristic and guarantees the stability.
|
Type NO. |
WON-WT - HG30 00 |
WON-WT - HG50 00 |
WON-WT - HG100 00 |
|
Rated P ower |
3000W |
5000W |
10000W |
|
Max P ower |
3500W |
5500W |
12000W |
|
Start-up Wind S peed |
2.5m/s |
2.5m/s |
2.5m/s |
|
Rated W ind S peed |
11m/s |
11m/s |
11m/s |
|
Survival W ind S peed |
45.0m/s |
45.0m/s |
45.0m/s |
|
Rated Voltage |
48V/96V/120V |
96V/120V/220V |
96V/120V/220V/380V |
|
Wheel D iameter |
5.2m |
6.1m |
7.8m |
|
Top N . W |
216kg |
285kg |
400kg |
|
Number of B lades |
3 |
||
|
Blades M aterial |
Reinforced glass fiber |
||
|
G enerator |
Three phase AC permanent magnet synchronous generator |
||
|
Control S ystem |
Electromagnet/ Wind wheel partial side |
||
|
S peed R egulation M ethod |
Automatically adjust windward direction |
||
|
L ubrication |
Lubrication grease |
||
|
Working T emperature |
-40℃-80℃ |
||
