Quick Details
-
Warranty:
-
1year, 1 Year
-
Brand Name:
-
Hi-earns
-
Model Number:
-
WP30V
-
Place of Origin:
-
Jiangsu, China
-
Horsepower:
-
6hp
-
Power Source:
-
diesel engine
-
Outlet Size:
-
10W40
-
Power:
-
diesel engine, Electric
-
motor:
-
6hp 178F
-
Fuel:
-
Diesel
-
Theory:
-
Vacuum Pump
-
Engine:
-
diesel engine
-
Certificate:
-
ISO9001:2008
-
Material:
-
Aluminum
-
Product name:
-
water pump
-
Certification:
-
ce
Quick Details
-
Application:
-
Developing World Water Solutions, Drinking water treatment, Family Homes, Irrigation and Agriculture, Raw Water Intake, Water Distribution, Water Treatment Solutions
-
Pressure:
-
Other
-
Voltage:
-
diesel engine
-
Warranty:
-
1year, 1 Year
-
Brand Name:
-
Hi-earns
-
Model Number:
-
WP30V
-
Place of Origin:
-
Jiangsu, China
-
Horsepower:
-
6hp
-
Power Source:
-
diesel engine
-
Outlet Size:
-
10W40
-
Power:
-
diesel engine, Electric
-
motor:
-
6hp 178F
-
Fuel:
-
Diesel
-
Theory:
-
Vacuum Pump
-
Engine:
-
diesel engine
-
Certificate:
-
ISO9001:2008
-
Material:
-
Aluminum
-
Product name:
-
water pump
-
Certification:
-
ce

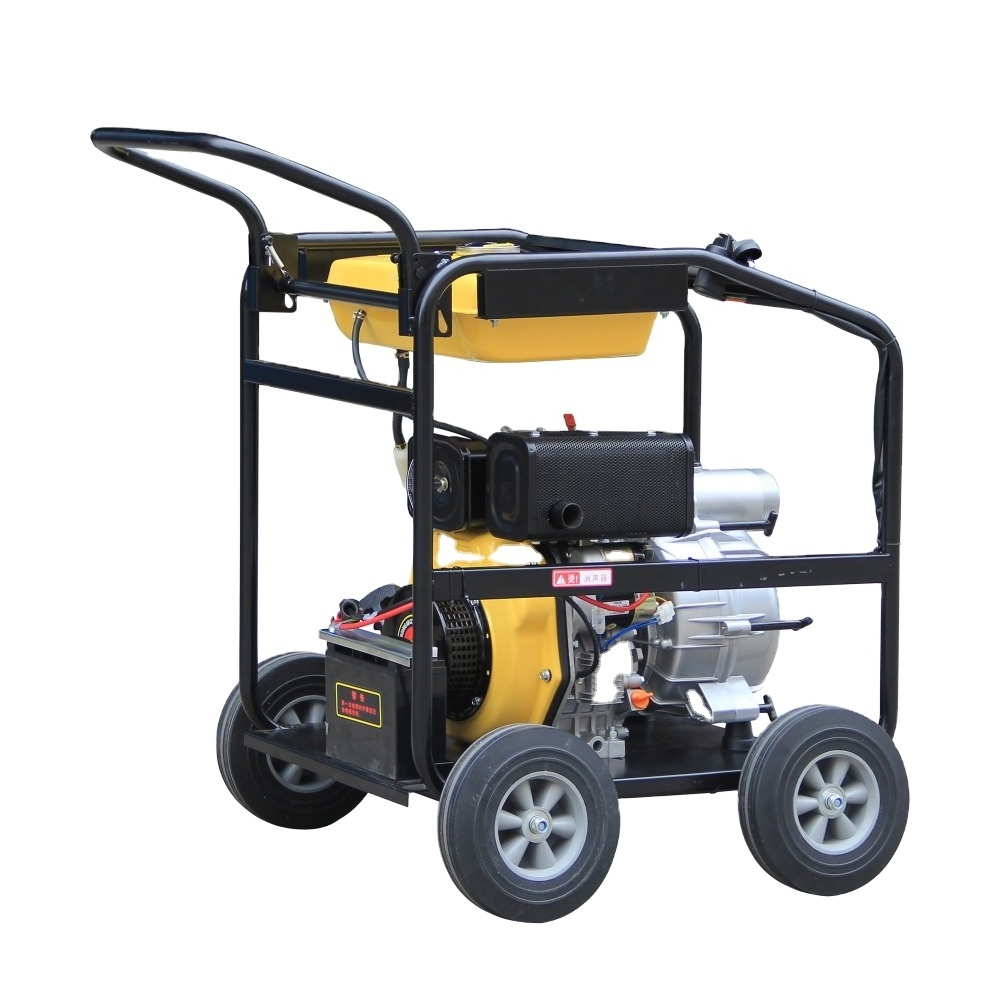

3 inch Dirty water pump with diesel engine and wheels
| WATER PUMP | Model | WP30V | |
| Suction,discharge port diameter[mm(in)] | 80(3'') | ||
| Cont.head(m) | 12 | ||
| Self-priming time(s/4m) | 120 | ||
| Cont.capacity(m³/hr) | 40 | ||
| ENGINE | Engine model | HR178F | |
| Speed(rpm) | 3600 | ||
| Fuel consumption(g/kw.h) | 295 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
|
Displacement(cc) |
296 | ||
|
Bore*stroke(mm) |
78*62 | ||
|
Starting system |
Recoil or Electric | ||
| Fuel tank capacity(L) | 3.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 815×530×660 | |
| Net weight(kg) | 92 | ||
| 20FT | 180 | ||
♦ With all the advantages described above, so we DARE to supply 1 year warranty!
♦ Low price spare parts provided beyond warranty period.
