Quick Details
-
Scan Speed:
-
300/Scan
-
Brand Name:
-
EDOO
-
Place of Origin:
-
Guangdong, China
-
1d:
-
Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, etc.
-
2d:
-
PDF417,QR Code (QR1/2, Micro),Data Matrix etc.
-
Scan precision:
-
>=3mil
-
Communication:
-
Micro USB, 2.4G,BT 3.0+4.2
-
Depth of field:
-
EAN-13 60mm~350mm (13mil)
-
Weight:
-
75g
-
transmission distancen:
-
50 m(wide empty area)
-
Physical dimension:
-
8 hrs(EAN13 barcode, read and transmit per 5 second)
-
Battery:
-
1100mAH
-
Certification:
-
FCC ce RECH GS RoHS BIS(ISI)
Quick Details
-
Type:
-
Business Card Scanner
-
Scan Element Type:
-
CMOS
-
Max Paper Size:
-
A4
-
Scan Speed:
-
300/Scan
-
Brand Name:
-
EDOO
-
Place of Origin:
-
Guangdong, China
-
1d:
-
Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, etc.
-
2d:
-
PDF417,QR Code (QR1/2, Micro),Data Matrix etc.
-
Scan precision:
-
>=3mil
-
Communication:
-
Micro USB, 2.4G,BT 3.0+4.2
-
Depth of field:
-
EAN-13 60mm~350mm (13mil)
-
Weight:
-
75g
-
transmission distancen:
-
50 m(wide empty area)
-
Physical dimension:
-
8 hrs(EAN13 barcode, read and transmit per 5 second)
-
Battery:
-
1100mAH
-
Certification:
-
FCC ce RECH GS RoHS BIS(ISI)
Scenarios
Manufacturing tracing management in electronic and light industrial business, warehousing, inventory, logistics management of online shops, logistics station management.
Excellent Code Reading Performance
Built-in reading engine with the world's leading decoding algorithm, W41-35 can easily read all kinds of bent, stained, blurred and other low-quality barcodes, even on-screen codes
Plug and play, stable and convenient
wireless communications
No need for installation, simple matching, easy to learn and easy to use, plug and play. 2.4 G and BT compact design, meet the demand of different applications.
Can be used anywhere, anytime.
Small enough to fit into your pocket and light enough to carry around all day, providing you with the convenience of always having a scanner at your fingertips.
Powerful Battery Life
Lithium battery with large capacity, support low power mode, significantly improve the product range, meet all kinds of high load applications.

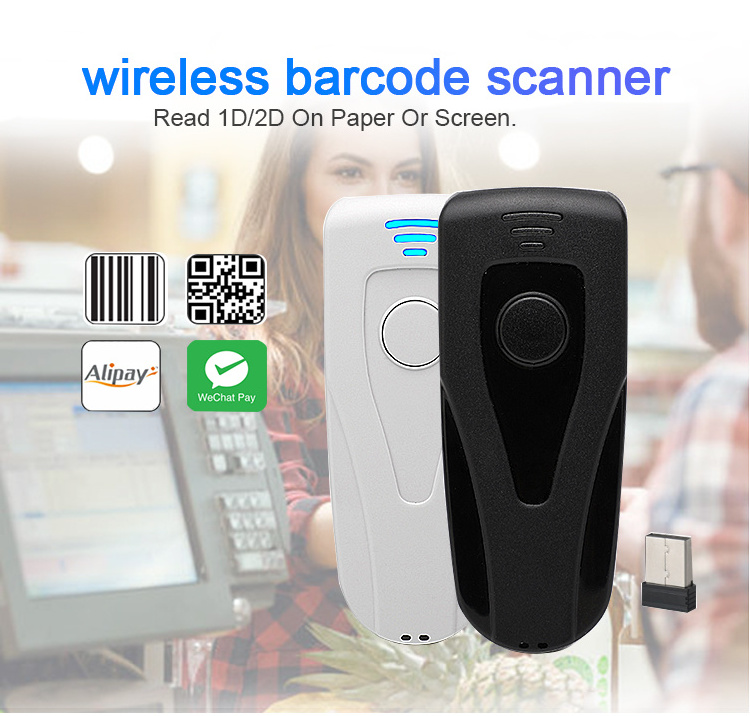

W45-35/Wireless Handheld Barcode Scanner
|
Performance
|
Image Sensor
|
|
1280×800CMOS
|
|
|
Illumination
|
|
White LED
|
|
|
Aiming
|
|
Red Laser Diode
|
|
|
Symbologies
|
2D
|
PDF417, QR Code, Data Matrix, Hanxin Code, Micro PDF417, GM Code，Micro QR, Code One, etc.
|
|
|
|
1D
|
Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1
Databar, Matrix 2 of 5, Code 11,Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey |
|
|
Reading Precision
|
|
≥3mil
|
|
|
Depth of View
|
EAN-13
|
70mm~500mm(13mil)
|
|
|
|
PDF417
|
70mm~225mm(6.7mil)
|
|
|
|
Code39
|
90mm~265mm(5mil)
|
|
|
|
Data Matrix
|
65mm~215mm(10mil)
|
|
|
|
QR Code
|
40mm~295mm(15mil)
|
|
|
Scan Angle
|
|
Pitch: ±60°; Roll: 360°; Skew: ±60°
|
|
|
Symbol Contrast
|
|
≥25%
|
|
|
Interface
|
|
Micro USB, 2.4G,BT 3.0+4.2
|
|
|
Transmission distance
|
|
Wide empty area: 2.4G,150m;BT, 50m
|
|
Physical/
Electric |
Size
|
|
110*45*27mm’
|
|
|
Weight
|
|
75g
|
|
|
Indicator
|
|
Sound, LED and Vibration
|
|
|
Battery
|
|
1100AH
|
|
|
Usage Hours per Charge
|
|
8 hrs(EAN13 barcode, read and transmit per 5 second)
|
|
|
Charging time
|
|
2 hrs
|
|
Environmental
|
Operation Temperature
|
|
-20℃ to 50℃
|
|
|
Storage Temperature
|
|
-40℃ to 70℃
|
|
|
Operation Humidity
|
|
5%~95% (non-condensing)
|
|
|
ESD
|
|
±8 KV (Air discharge); ±4KV (Direct discharge)
|
|
|
Drop
|
|
1.2m
|
|
|
Protection Level
|
|
IP52
|
