Quick Details
-
Panel Dimensions:
-
2094* 1038*35mm
-
Panel Efficiency:
-
20.47%
-
Solar cell:
-
A-grade
-
Junction Box:
-
IP68 Rated
-
Frame:
-
Anodized Aluminium Alloy
-
Glass:
-
3.2mm Tempered Low Iron
-
Cable:
-
4mm ^2 300mm PV Cable
-
Wind load, back:
-
2400Pa / 2400Pa
-
Snow load, front:
-
3000Pa / 5400Pa
-
Warranty:
-
25 years
-
Certificates:
-
CE/TUV/ISO/BS OHSAS/IEC
Quick Details
-

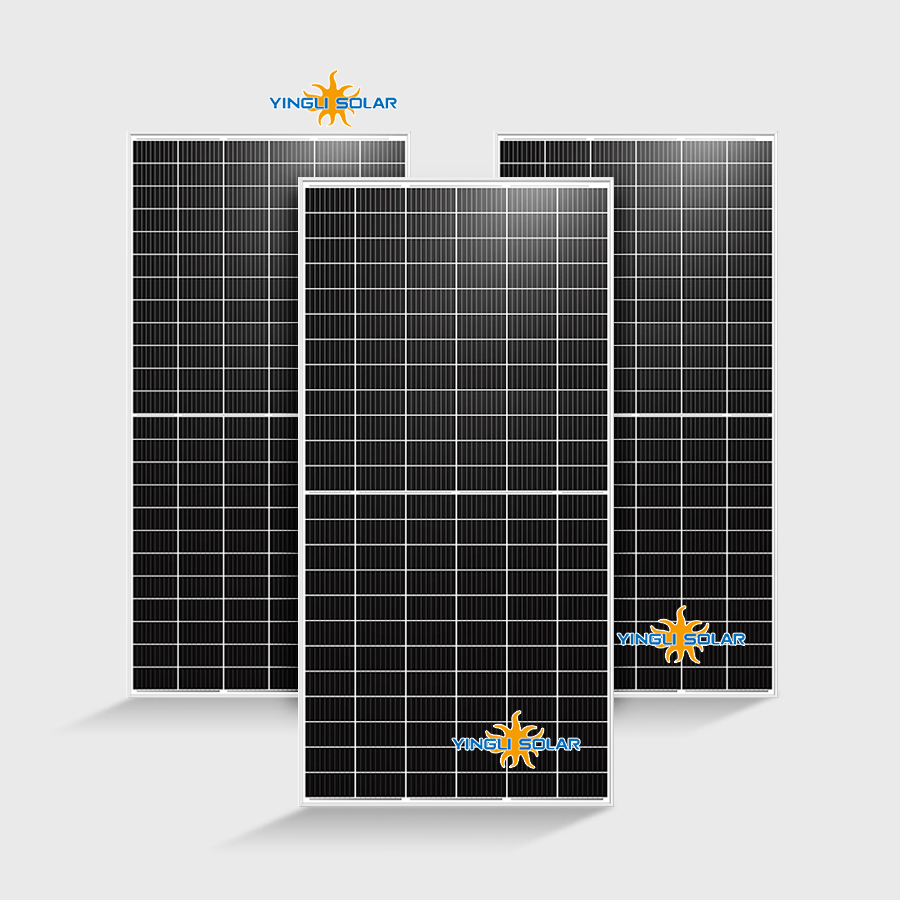

Brand Name:
-
Yingli Solar
-
Model Number:
-
YLM144M-455
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2094* 1038*35mm
-
Panel Efficiency:
-
20.47%
-
Solar cell:
-
A-grade
-
Junction Box:
-
IP68 Rated
-
Frame:
-
Anodized Aluminium Alloy
-
Glass:
-
3.2mm Tempered Low Iron
-
Cable:
-
4mm ^2 300mm PV Cable
-
Wind load, back:
-
2400Pa / 2400Pa
-
Snow load, front:
-
3000Pa / 5400Pa
-
Warranty:
-
25 years
-
Certificates:
-
CE/TUV/ISO/BS OHSAS/IEC
Product Description
|
Electrical Parameters at Standard Test Conditions (STC)
|
|
|
|
|
|
|
||||||
|
Power output(Pmax)
|
430W
|
435W
|
440W
|
445W
|
450W
|
455W
|
||||||
|
Voltage at P max(V pmax)
|
40.72V
|
40.97V
|
41.20V
|
41.44V
|
41.67V
|
41.90V
|
||||||
|
Current at P max(I pmax)
|
10.56A
|
10.62A
|
10.68A
|
10.74A
|
10.80A
|
10.86A
|
||||||
|
Open-circuit voltage(Voc)
|
48.80V
|
49.05V
|
49.30V
|
49.55V
|
49.80V
|
50.05V
|
||||||
|
Short-circuit current(Isc)
|
11.18A
|
11.24A
|
11.30A
|
11.36A
|
11.42A
|
11.48A
|
||||||
|
Module efficiency(ΔPmax)
|
19.96%
|
20.19%
|
20.42%
|
20.65%
|
20.88%
|
21.12%
|
||||||
|
Power output tolerance(H Pmax)
|
0~+5W
|
|
|
|
|
|
||||||
|
Electrical Parameters at Nominal Module Operating Temperature (NMOT)
|
|
|
|
|
|
|
||||||
|
Power output(P max)
|
327.15W
|
331.03W
|
334.76W
|
338.61W
|
342.39W
|
346.19W
|
||||||
|
Voltage at P max(V Pmax)
|
38.83V
|
39.07V
|
39.29V
|
39.52V
|
39.74V
|
39.96V
|
||||||
|
Current at P max(I Pmax)
|
8.42A
|
8.47A
|
8.52A
|
8.57A
|
8.62A
|
8.66A
|
||||||
|
Open-circuit voltage(Voc)
|
46.28V
|
46.52V
|
46.76V
|
46.99V
|
47.23V
|
47.47V
|
||||||
|
Short-circuit current(Isc)
|
8.99A
|
9.04A
|
9.09A
|
9.14A
|
9.19A
|
9.24A
|
||||||
|
Bifacial Power Output (Backside Power Gain)
|
|
|
|
|
|
|
||||||
|
Power output (Power gain 10%)P max10
|
473W
|
479W
|
484W
|
490W
|
495W
|
501W
|
||||||
|
Power output (Power gain 15%)P max15
|
495W
|
500W
|
506W
|
512W
|
518W
|
523W
|
||||||
|
Power output (Power gain 25%)P max25
|
538W
|
544W
|
550W
|
556W
|
563W
|
569W
|
||||||
|
Other Characteristics
|
|
|
|
|
|
|
||||||
|
Nominal module operating temperature(NMOT)
|
39±2°C
|
|
Temperature coefficient of I sc(α Isc)
|
|
0.04% / °C
|
|
||||||
|
Bifaciality factor(φ)
|
70±5%
|
|
Temperature coefficient of V oc
|
|
-0.30% / °C
|
|
||||||
|
Measurement tolerance of Pmax, Voc and Isc
|
±3%
|
|
Temperature coefficient of P max
|
|
-0.35% / °C
|
|
||||||
Various types and specifications are available. If you are interested, please click the online customer service on the right to answer your questions and doubts online.
Material
Solar Cell
>High PID resistant
> Low breakage rate
>Uniform color
BACKSHEET.
>Good electrical insulation and breakdown.
>Excellent UV resistance and aging resistance.
>Made-to-order backsheet with width up to 1300mm.
>Double-side fluorocarbon strcture(PVF//PET//PVF) with the integration of Tedlar(DuPont).
JUNCTION BOX.
>
IP68 protection level.
>
Unique split junction box design to minimize the loss caused by occlusion.
>
Combination of series circuit and parallel circuit, reduced internal power loss.
EVA.
>Excellent light transmittance and transparency.
>Excellent long term adhesion to glass,mental and polymer backsheet.
>Excellent durability ,such as weather resistance ,high-temperature,high-humidity and UV light resistance.
GLASS.
>High-transmittance and low reflection Increase model efficiency
>High mechanical strength
Factory
Project Cases
FAQ.
Q1: Can the product be shipped to my area?
A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you
provide the region.
Q2: What about the lead time?
A2: 10 days for<200kW requirements, we need to negotiate if your needs ≥200kW.
Q3: How can I make payment?
A3:100% TT or maximum we can accept 30% TT in advance and 70% TT upon goods ready before shipment
Q4: What is the mode of transport?
A4: International section is generally sea transport, after entry we will use multimodal transport of rail, barge.
Q5: what's the warranty?
A5:12 years enhanced product warranty on materials and workmanship, 25 years linear power output warranty. More detail please
refer to our limited warranty statement
A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you
provide the region.
Q2: What about the lead time?
A2: 10 days for<200kW requirements, we need to negotiate if your needs ≥200kW.
Q3: How can I make payment?
A3:100% TT or maximum we can accept 30% TT in advance and 70% TT upon goods ready before shipment
Q4: What is the mode of transport?
A4: International section is generally sea transport, after entry we will use multimodal transport of rail, barge.
Q5: what's the warranty?
A5:12 years enhanced product warranty on materials and workmanship, 25 years linear power output warranty. More detail please
refer to our limited warranty statement
