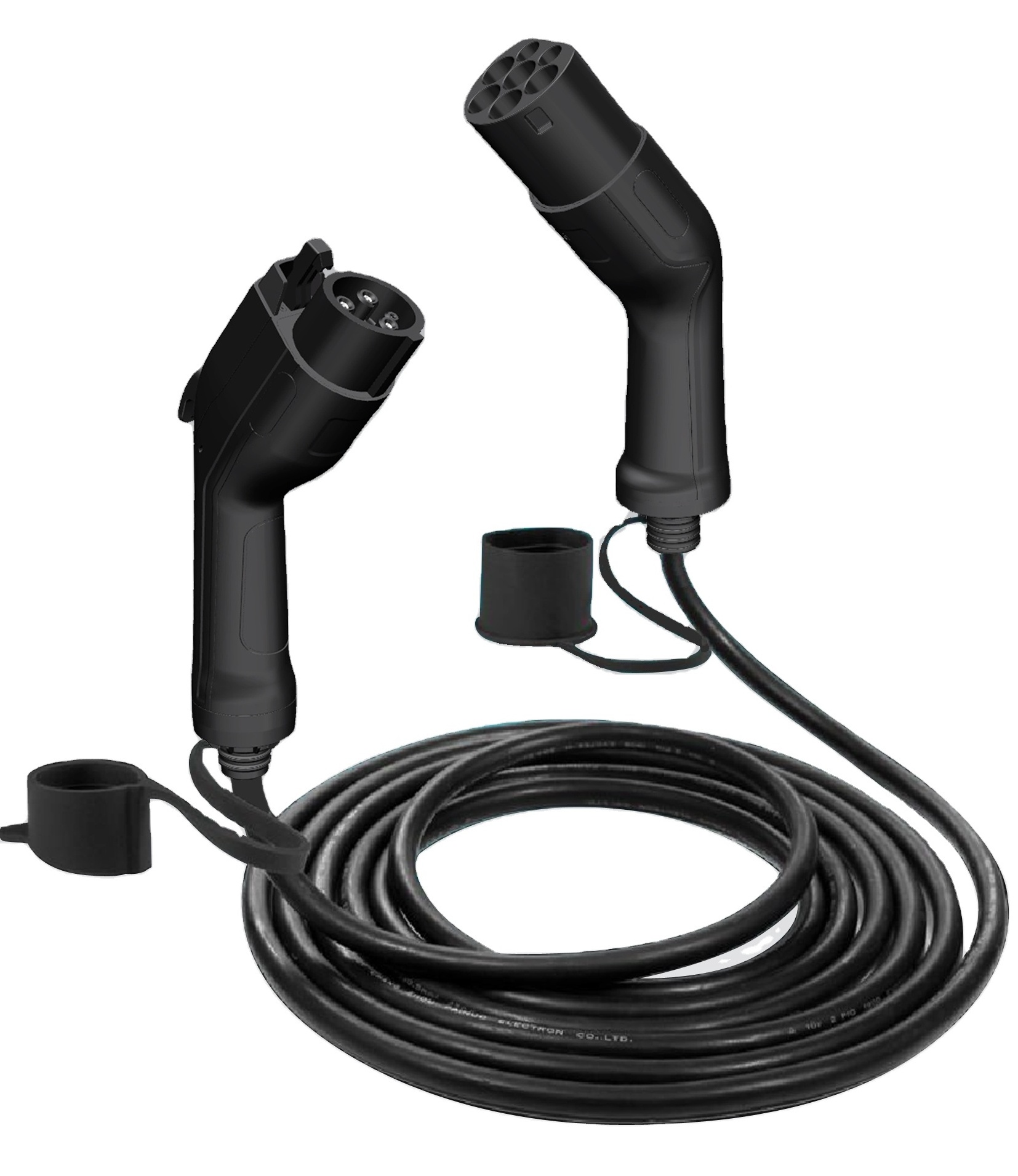

IEC62196 type 2 to type 2 ev cable 16A single phase 250V AC EVSE EV Electric Vehicle Car Charger charging cable

IEC62196 type 2 to type 2 ev cable 16A single phase 250V AC EVSE EV Electric Vehicle Car Charger charging cable

FOB Reference Price: Get Latest Price

≥1 Pieces

US $53.3

≥100 Pieces

US $38.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

WIFI:: NO

Network:: NONE

Customized support:: LOGO, color

Place of Origin:: China

Brand Name:: Workersbee

Model Number:: type 2 to type 2 ev cable 16A single phase

Key Words:: type 2 to type 2 ev charging cable

Certifications:: TUV CE

Cable length:: Single

Rated current:: 16A

Material:: Thermoplastic

Pin:: Cooper Alloy + Sliver Plating

IP protection class:: IP 54

Mechianical life:: 10000 times

Warranty:: 2 Years, 24 months

Package:: Standard Cartons

Certification:: CE

Quick Details

Rated Voltage:: 250V

Rated Current:: 16A

Application:: Residential / General-Purpose

WIFI:: NO

Network:: NONE

Customized support:: LOGO, color

Place of Origin:: China

Brand Name:: Workersbee

Model Number:: type 2 to type 2 ev cable 16A single phase

Key Words:: type 2 to type 2 ev charging cable

Certifications:: TUV CE

Cable length:: Single

Rated current:: 16A

Material:: Thermoplastic

Pin:: Cooper Alloy + Sliver Plating

IP protection class:: IP 54

Mechianical life:: 10000 times

Warranty:: 2 Years, 24 months

Package:: Standard Cartons

Certification:: CE

Product Photos

Product Display

Product Description

Brand Name	Workersbee or OEM
Product Description	Type 2-to-Type 2 EV Charging Adapter Cable
Application	electric cars vehicle charging
Charging Mode	Mode 3 EV charging
Charging Cable	32.5m㎡ + 10.5m㎡
Place of Origin	China

Plug for EV	IEC 62196 Type2
Power supply plug	IEC 62196 Type2
Input power	1 phase, 250 V/AC, 16A
Plug shell material	Thermoplastic (flame retardant grade: UL94-0)
Operational temperature	-30 °C to +50 °C
Vandalism-proof	No
UV resistant	Yes
Certificate	CE, TUV
Additional features	Over-voltage, under-voltage, leakage current and lightning protection
Cable length	5m or customized
Terminal material	Copper alloy, silver plating
Terminal temperature rise	＜50k
Withstand voltage	2000V
Contact resistance	≤0.5mΩ
Mechanical life	＞10000 times of off-load plug in/out
＜Coupled insertion force	＜100N
Withstandable impact	dropping from a 1m height and running-over by a 2-ton vehicle
Warranty	2 years

Electric car charging modes

These are 4 charging modes that allows to recharge the electric car: with or without security devices, private and public charging points, in the domestic and industrial sphere.

WHAT IS Mode 3 EV charging?

The mode 3 charging cable is a connector cable between the charging station and the electric car. ... To allow electric cars to be charged using type 1 and type 2 plugs, charging stations are usually equipped with a type 2 socket.

Which is the correct charging mode for EV batteries?

Mode 1 charging is generally installed at home, but mode 2 charging is installed mostly at public places and shopping malls. Mode 3 and mode 4 are considered as fast charging which typically use the three-phase supply and can charge the battery in less than 30 minutes.

Payment and Packing

Our Company

SUZHOU HIVE WALLBOX CO., LTD.

Hive wallbox Co.,Ltd established at 2020, the stockholder is Jiangsu Yihang Electric Science and Technology Co., a professional manufacturer focusing on the research and development, design, production, sales and after-sales service of precision parts for automotive shock adsorber and transmissions, as well as electric vehicle charging products. Our main products are AC SAE J1772 Type 1 and IEC62196 TYPE 2 plug & socket, CCS1 & CCS2 plugs and socket, which can be used in Charging piles, and we also produce Mode 2 portable EV charger, Mode 3 EV connector & EV adaptor and EV charging other accessory.

Our company Located in Wuxi High-tech Zone, Wuxi city, 120km to Shanghai Sea port - the center of the Yangtze Delta, China’s most vibrant economic region. Location advantage not only means convenient traffic but also save customers’ transport cost.

We provide OEM and ODM service for EV charging products according to our customer’s requirements. In the future, we will continue to uphold the spirit of craftsman, teamwork, hardworking and happiness, for the purpose of striving to make great contributions to society in role of a professional EV charging products supplier and customers' most trusted partner.

Certifications

CE and TUV
