Quick Details
-
Place of Origin:
-
Hanoi, Vietnam
-
Brand Name:
-
DURAGREEN
-
Model Number:
-
EPS001
-
Name:
-
Duragreen EPS Sandwich Panel
-
Raw Material:
-
EPS, Cement, Sand, Water
-
Face Panel:
-
Fiber cement board, Calcium silicate board
-
Dimension:
-
2270mm*610mm*60mm
-
Face Material:
-
Nonmetal
-
Usage:
-
Partition Block, Interior/Exterior Wall, Floor
-
Applications:
-
Warehouse, Farmhouse, Office Building, Mall
-
Advantage:
-
Energy Saving, Fireproof, Sound Insulation, Lightweight
-
Certificate:
-
ISO
Quick Details
-
Project Solution Capability:
-
Others
-
Application:
-
Warehouse
-
Design Style:
-
Traditional
-
Place of Origin:
-
Hanoi, Vietnam
-
Brand Name:
-
DURAGREEN
-
Model Number:
-
EPS001
-
Name:
-
Duragreen EPS Sandwich Panel
-
Raw Material:
-
EPS, Cement, Sand, Water
-
Face Panel:
-
Fiber cement board, Calcium silicate board
-
Dimension:
-
2270mm*610mm*60mm
-
Face Material:
-
Nonmetal
-
Usage:
-
Partition Block, Interior/Exterior Wall, Floor
-
Applications:
-
Warehouse, Farmhouse, Office Building, Mall
-
Advantage:
-
Energy Saving, Fireproof, Sound Insulation, Lightweight
-
Certificate:
-
ISO
DURAGREEN EPS SANDWICH PANEL

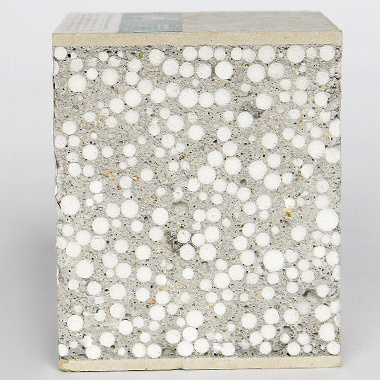

WHAT IS DURAGREEN EPS CONCRETE SANDWICH PANEL?
EPS Sandwich panel is made up of simple ingradients: EPS, cement, sand and water. Face panel of Duragreen EPS concrete panel can be fiber cement board or calcium silicate board. The middle core material is a compound of Expanded
Polystyrene (EPS) foam particles, water and cement.
SPECIFICATIONS
|
Length
|
Width
|
Thickness
|
Application
|
||
|
2270mm
|
610mm
|
60mm
|
Floor & Roof
|
||
|
2440mm
|
|
75mm
|
|
||
|
|
|
90mm
|
|
||
|
|
|
100mm
|
Exterior & Interior Wall
|
||
|
|
|
120mm
|
|
||
|
|
|
150mm
|
|
||
|
Specifications
|
|
|
Technical Data
|
||
|
Anti pressure strength (Mpa)
|
|
|
>= 3.5
|
||
|
Sound Insulation Capacity in the air (db)
|
|
|
>= 40 (thickness 90mm)
|
||
|
Moisture Coefficient (%)
|
|
|
< 9
|
||
|
Heat transfer Coefficient (W/m.k)
|
|
|
<=0.25 (thickness 90mm)
|
||
|
Fireproof Limit (h)
|
|
|
>1
|
||
EPS PANEL EXTERIOR WALL
EPS PANEL WALL PARTITION
EPS PANEL FLOOR SYSTEM
EPS PANEL ROOF SYSTEM
DURAGREEN EPS CONCRETE PANEL ADVANTAGES
* Energy-saving, environment-friendly
Green and environment-friendly, non-harmful substance, no radiation, reusable, no construction waste, widely used in various places.
* Fireproof
The non-inflammability of the fiber cement/ calcium silicate board can be reached national A level standard. Under the high temperature of 1000 degrees, the fireproof feature can last more than one hours, do not radiate toxic gasses.
* Anti-pressure, anti-quake and anti-impact
Because of fabricated construction, 3-in-1 structure of Duragreen EPS concrete panel can meet the international standard of antipressure, quake and impact.
* Waterproof
Duragreen EPS concrete panel is made from materials which prevent water and moisture from damaging the product
* Sound & Heat insulation
Good sound insulation, sound absorption and noise reduction functions.
Wall materials mainly are made from environmental protection and energy saving heat insulation material. With a good heat insulation and preservation function, it can keep the indoor temperature at a stable range and make the environment much more comfortable.
Green and environment-friendly, non-harmful substance, no radiation, reusable, no construction waste, widely used in various places.
* Fireproof
The non-inflammability of the fiber cement/ calcium silicate board can be reached national A level standard. Under the high temperature of 1000 degrees, the fireproof feature can last more than one hours, do not radiate toxic gasses.
* Anti-pressure, anti-quake and anti-impact
Because of fabricated construction, 3-in-1 structure of Duragreen EPS concrete panel can meet the international standard of antipressure, quake and impact.
* Waterproof
Duragreen EPS concrete panel is made from materials which prevent water and moisture from damaging the product
* Sound & Heat insulation
Good sound insulation, sound absorption and noise reduction functions.
Wall materials mainly are made from environmental protection and energy saving heat insulation material. With a good heat insulation and preservation function, it can keep the indoor temperature at a stable range and make the environment much more comfortable.
Packing & Delivery
Duragreen EPS concrete panels are packed in pallets, covered and straped
Shipment is packed in container 20ft and container 40ft
