Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Speed:
-
400-600 pcs/mins
-
Application:
-
Tshirt bag /Vest bag/Shopping bag
-
Processing Type::
-
Hot Sealing & Cold Cutting
-
Lines:
-
Four Lines
-
Bag Width (Max):
-
100-600mm
-
PLC:
-
Yes
-
Servo motor:
-
Yes
-
Bag length:
-
400-1000mm
-
Usage:
-
T-shirt Bag Making
-
Product name:
-
T-shirt Plastic Bag Making Machine Price
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
T-shirt Bag
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Speed:
-
400-600 pcs/mins
-
Application:
-
Tshirt bag /Vest bag/Shopping bag
-
Processing Type::
-
Hot Sealing & Cold Cutting
-
Lines:
-
Four Lines
-
Bag Width (Max):
-
100-600mm
-
PLC:
-
Yes
-
Servo motor:
-
Yes
-
Bag length:
-
400-1000mm
-
Usage:
-
T-shirt Bag Making
-
Product name:
-
T-shirt Plastic Bag Making Machine Price

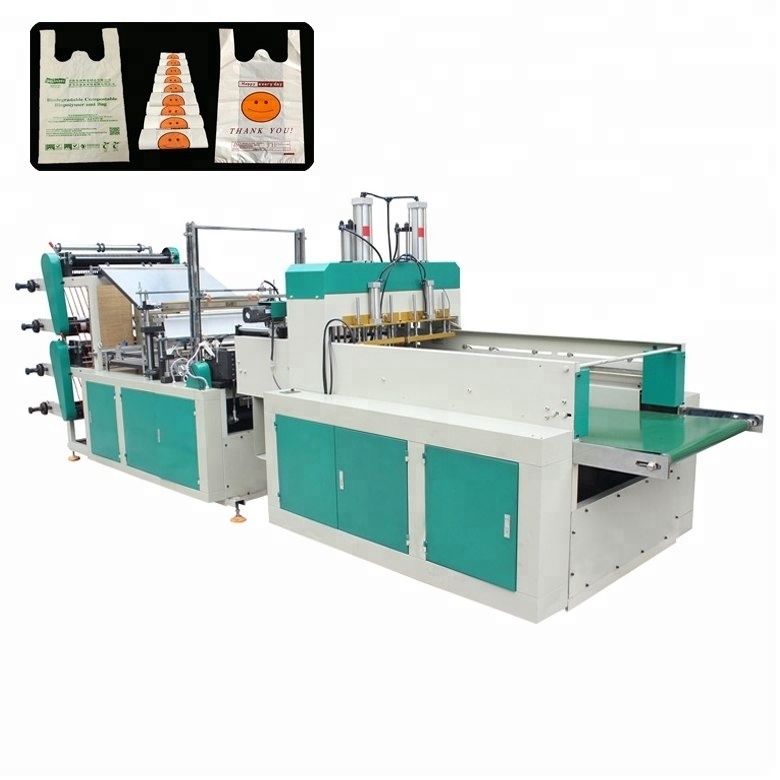

Full Automatic High Speed Servo Motor PE T-shirt Plastic Bag Making Machine Price:
This T-shirt Plastic Bag Making Machine Price is suitable for producing HDPE and LDPE plastic bag . It adopts the step motor (servomotor) discharge the in high speed and photocell to track the cutting, punch the "U"shape bag in one tine. And with such features, such as casy operation, high effciencyand high finished products. .
Siemens motor
Delta inverter
Touch screen changer
Yaskawa servo motor
Panasonic Photocell
Omron electric parts
Technical Parameters:
Type |
GBDE-700 |
GBDE-900 |
Sealing and Cutting Width |
150-600mm |
180-800mm |
Sealing and Cutting Length |
300-650mm |
300-650mm |
Sealing and Cutting Thickness |
0.001-0.04mm |
0.015-0.04mm |
Bag Making Speed |
(5-150)×4pcs/min |
(5-150)×4pcs/min |
Motor Power |
1.5kw |
2kw |
Machine Weight |
≈1500kg |
≈2000kg |
Overall Dimensions(L×W×H)mm |
3200×1100×1600mm |
5200×1300×1800mm |
Air Compress |
5kg/Cm2 |
5kg/Cm2 |
1) it adopts computer to control, inverter motor to adjust the speed, and it has many advantages of top position stopping, steady function, accurate positioning etc.
2) It has 1 automatic photo electric feeding system, and one tracking photocell. automatic temperature control system, electric static eliminating system, automatic counting system and alarm system.
3) It has automatic conveyor system, which conveys the sealed and cut bags.
4) It is hot sealing and cold cutting. The hot sealing has too sides. One is for making flat bag sealing and another is for making T-shirt bag sealing.
