Quick Details
-
Machinery Function:
-
Peanut Butter Machine
-
Usage:
-
colloid mill groundnut butter
-
Function:
-
Bone Grinding
-
machine function:
-
colloid mill, colloid grinder, paste colloidal grinder
-
Capacity:
-
600-750kg/h
-
customer:
-
Canada, Philippines, Indonesia
-
Material:
-
stainless steel food grade
-
conveyor size:
-
310*1500 mm
-
material:
-
bone,frozen meat
-
advantage:
-
Muti-functional
-
Feature:
-
High Slicing Efficiency
Quick Details
-
Weight (KG):
-
300
-
Place of Origin:
-
China
-
Machinery Capacity:
-
Peanut Butter Machine
-
Machinery Function:
-
Peanut Butter Machine
-
Usage:
-
colloid mill groundnut butter
-
Function:
-
Bone Grinding
-
machine function:
-
colloid mill, colloid grinder, paste colloidal grinder
-
Capacity:
-
600-750kg/h
-
customer:
-
Canada, Philippines, Indonesia
-
Material:
-
stainless steel food grade
-
conveyor size:
-
310*1500 mm
-
material:
-
bone,frozen meat
-
advantage:
-
Muti-functional
-
Feature:
-
High Slicing Efficiency
low cost cashew processing machine fruit grinder machine pepper chilli tomato sauce making machine

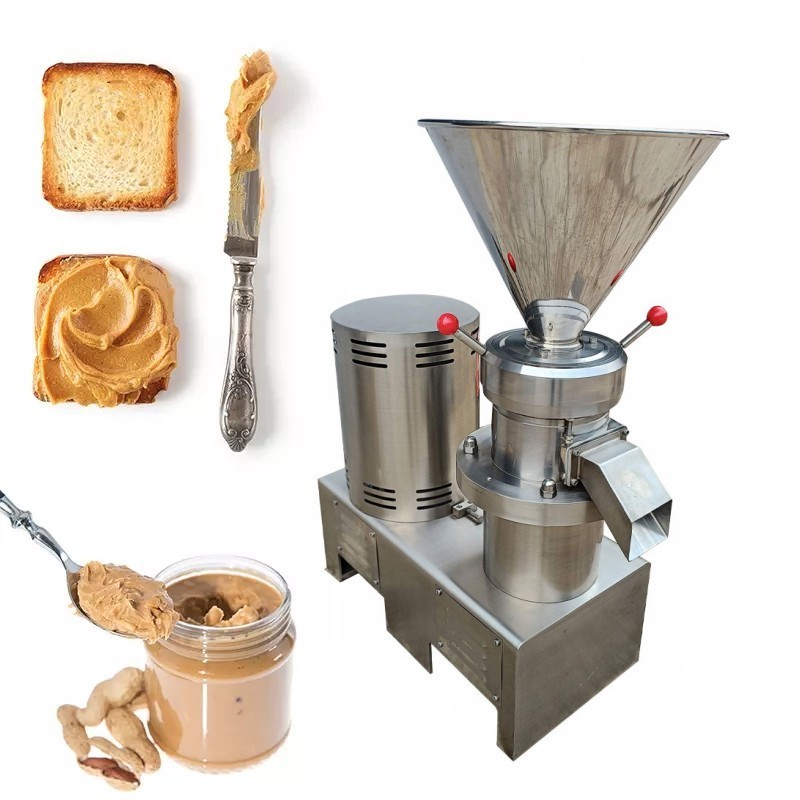

Peanut butter machine Bone mud grinding products are machines for fine processing of fluid materials.It integrates the various properties of homogenizer, ball mill, three-roller, shearer, mixer and other machinery, and has superior superfine pulverization , dispersion and emulsification , homogenization,mixing and other functions.
Working principle :
This machine works through different shapes of stator and rotor, the stator and rotor will relative motion at the high speed rolling, when the materials will be grinded at the self-possessed, air-weight, and centrifugal force, when adjusts the gap of the stator, the materials will bear powerful shearing force, friction force, impact force and high-frequency vibration, the material will be crushed and grinded and mixed well, then can get the ideal products.
The grinding chamber has three grinding distracts: first class--coarse grinding, second class—fine grinding, third class---- micro grinding, can adjust the gaps between the stator and rotor to get the ideal products. (Can recycle the materials)
| Model | GN-50 | GN-80 | GN-110 | GN-130 | GN-180 | GN-240 | GN-300 | |
| Final size of products | 2-50 | |||||||
| Capacity (t/h) | 0.005-0.03 | 0.1-0.5 | 0.3-1.2 | 0.4-2.0 | 0.8-6.0 | 4.0-12 | 6.0-25 | |
| Main power(kw) | 1.5/1.1 | 4 | 7.5 | 11/15 | 18.5/22 | 37/45 | 75/90 | |
| Dimension | Length(mm) | 520 | 685 | 700 | 975 | 981 | 1319 | 1440 |
| Width(mm) | 250 | 335 | 430 | 456 | 476 | 500 | 630 | |
| Height(mm) | 555 | 928 | 1000 | 1054 | 1124 | 1276 | 1420 | |
| Weight (kg) | 70 | 210 | 300 | 400 | 420 | 1000 | 1600 | |
