Easy to Operate
Multiple outputs
Multiple uses
Easy maintenance
Save wood cost
more sizes for option
Milling and sanding(or cutting) more matched machines
- Product Details
- {{item.text}}
Quick Details
-
Marketing Type:
-
New Product
-
Weight (KG):
-
450 KG
-
Power (kW):
-
12.1
-
Name:
-
Wood Dowel Machine
-
Product name:
-
Wood Dowel Machine
-
Model:
-
JW-MB9010T
-
Feature:
-
High Effiency
-
Automatic Grade:
-
Fully Automatic
-
MOQ:
-
1 set
-
Advantage:
-
Energy Saving
-
Color:
-
Customers' Demand
-
Voltage:
-
220/380V
-
Application:
-
Wood Stick/bar/pin/dowel/rod
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JAWO
-
Machine Type:
-
Dowel Making Machine
-
Marketing Type:
-
New Product
-
Weight (KG):
-
450 KG
-
Power (kW):
-
12.1
-
Name:
-
Wood Dowel Machine
-
Product name:
-
Wood Dowel Machine
-
Model:
-
JW-MB9010T
-
Feature:
-
High Effiency
-
Automatic Grade:
-
Fully Automatic
-
MOQ:
-
1 set
-
Advantage:
-
Energy Saving
-
Color:
-
Customers' Demand
-
Voltage:
-
220/380V
-
Application:
-
Wood Stick/bar/pin/dowel/rod
Product Overview

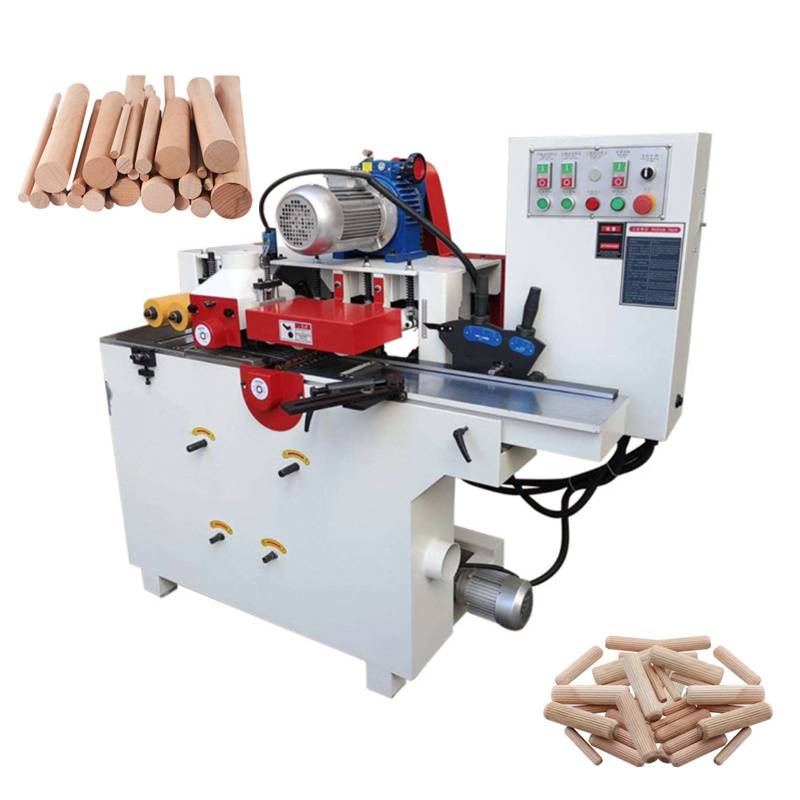

Matches Making Machine Wooden Stick Wood Dowel Pin Making Machine Wood Dowel Machine
The high-speed round bar machine is a wooden board processing round stick machine. It adopts two functions of automatic feeding and automatic return. It can be used to process wooden uneven bars, martial arts sticks and other sports equipment, rolling pins,
furniture pin,
mine pillars, staircase handrails and other round wooden bars. The cutting amount on both sides can be adjusted to process multiple wooden sticks at one time.
Features:
Product Paramenters
|
Model
|
JW-MB9010T
|
|
Min processing length
|
280mm
|
|
Max processing length
|
6000mm
|
|
Min processing width
|
10mm
|
|
Max processing width
|
100mm
|
|
Min diameter of processing round rod
|
5mm
|
|
Max diameter of processing round rod
|
35mm
|
|
Feeding motor power
|
1.1kw
|
|
Feeding speed
|
6-30m/min
|
|
Motor power of the first lower knife shaft
|
5.5kw
|
|
The speed of the first lower knife shaft
|
8500r/min
|
|
Motor power of the second upper cutter shaft
|
5.5kw
|
|
The speed of the second lower knife shaft
|
8500r/min
|
|
Voltage
|
380v
|
|
Dimension
|
1200X800x1300mm
|
|
Weight
|
450kg
|
Features at a Glance
