Quick Details
-
Dimension(L*W*H):
-
2110*1310*2230mm
-
Weight:
-
1085 KG
-
Marketing Type:
-
New Product 2024
-
Model:
-
RM500JOY
-
Max . Splitting Force:
-
30Ton
-
Max. Log Dia.:
-
500mm
-
Max. Log Length:
-
500mm
-
Max. Splitting Lift Height:
-
230mm(hydraulic)
-
Hydraulic Feeding:
-
1800x390mm (L* W)
-
Firewood Conveyor:
-
Standard Length: 3.5m, Belt width:300mm
-
Control Type:
-
Joystick
-
Cycle Time:
-
6s
-
Knife:
-
6 way
Quick Details
-
Use:
-
fire log machine
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RIMA
-
Dimension(L*W*H):
-
2110*1310*2230mm
-
Weight:
-
1085 KG
-
Marketing Type:
-
New Product 2024
-
Model:
-
RM500JOY
-
Max . Splitting Force:
-
30Ton
-
Max. Log Dia.:
-
500mm
-
Max. Log Length:
-
500mm
-
Max. Splitting Lift Height:
-
230mm(hydraulic)
-
Hydraulic Feeding:
-
1800x390mm (L* W)
-
Firewood Conveyor:
-
Standard Length: 3.5m, Belt width:300mm
-
Control Type:
-
Joystick
-
Cycle Time:
-
6s
-
Knife:
-
6 way
Product Description

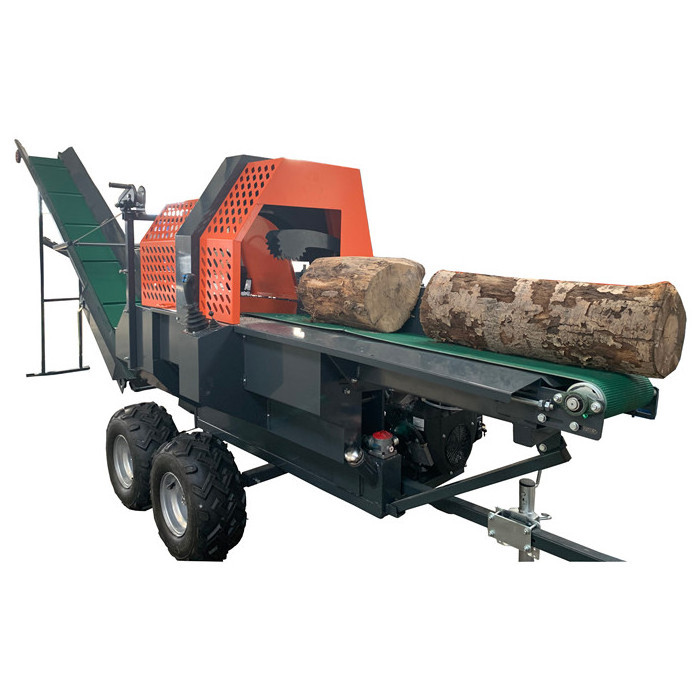

Firewood Processor
RM500 JOY
RM500 JOY is a fantastic processor, with a cutting diameter of 50cm and a splitting force of 30ton, exceptionally high outputs are easily achievable, it is on of the best machines in its class.
A single joystick controls all functions for easy operation and less user fatigue allowing the operator to get the most from the machine throughout the day.
The machine has a powered in the feed conveyor belt, with a non-ship surface to help pull even bent timber into the machine.
Paddle supports hold the log as it is cut, then release it into the splitter, dramatically reducing the chances of a log falling wrongly into the splitter.
The powerful 30ton splitter pushes the log through the hydraulically adjustable splitting knife, before sending the split timber up a slewing output conveyor.
This machine is equipped with large wheel and a strong adjustable drawbar for towing and maneuvering.
A single joystick controls all functions for easy operation and less user fatigue allowing the operator to get the most from the machine throughout the day.
The machine has a powered in the feed conveyor belt, with a non-ship surface to help pull even bent timber into the machine.
Paddle supports hold the log as it is cut, then release it into the splitter, dramatically reducing the chances of a log falling wrongly into the splitter.
The powerful 30ton splitter pushes the log through the hydraulically adjustable splitting knife, before sending the split timber up a slewing output conveyor.
This machine is equipped with large wheel and a strong adjustable drawbar for towing and maneuvering.
|
Firewood Processor Model
|
|
RM500JOY
|
|
|
|||
|
Max . Splitting Force
|
|
30Ton
|
|
|
|||
|
Max. Log Dia.
|
|
500mm
|
|
|
|||
|
Max. Log Length
|
|
500mm
|
|
|
|||
|
Max. Splitting Lift Height
|
|
230mm(hydraulic)
|
|
|
|||
|
Engine Power
|
|
27 HP LIFAN Engine, Electric start
Optional: GX630 HONDA, Electric start
|
|
|
|||
|
Control Type
|
|
Joystick
|
|
|
|||
|
Cycle Time
|
|
6s
|
|
|
|||
|
Hydraulic Tank Capacity
|
|
40L
|
|
|
|||
|
Knife
|
|
6 way
|
|
|
|||
|
Wheel
|
|
22x11-10 ATV(4pcs)
|
|
|
|||
|
Log Table Model
|
|
RM4
|
|
|
|||
|
Max. Loading capacity
|
|
3000kg
|
|
|
|||
|
Drive
|
|
RM500 hydraulic system
|
|
|
|||
|
Control
|
|
on RM500JOY
|
|
|
|||
|
Hydraulic feeding
|
|
2200x580mm
|
|
|
|||
|
Log deck size
|
|
3000x1544mm
|
|
|
|||
|
Traction
|
|
50mm ball
|
|
|
|||
|
Hydraulic Rotator
|
|
2pcs
|
|
|
|||
|
Wheel
|
|
22x11-10
|
|
|
|||
|
Size (L*W*H)
|
|
4950x2200x1600mm
|
|
|
|||
|
Weight
|
|
600kg
|
|
|
|||
Detailed Images
Certifications
Company Introduction
Yantai Rima Machinery Co.,Ltd.
RIMA is established in 2009,located in Xibeiyu IndustryZone,Laizhou,Shandong,China. With its strong technique power,complete set of manufacture equipments and experimental devices,advanced CAD R&D means, the company has complete production capaicty from cutting,profiling,welding,maching,paiting to packing.RIMA has aleady manufactured a full range of high quality implements for the small to medium-sized tractor owners across the world,Such as Front End loader, Backhoe, Mower, rotary tiller, Wood Chipper, Log Splitter, Post Hole Diggers. more than 50 serials and more than 150 models of various implements.
Packing&Shipping
Customer Photos
Contact Us
If you would like any more information, please do not hesitate to contact us.
FAQ
1 Are you factory or trading company?
We have our own factory, mainly manufacture Forestry & Farm Machinery, using "Self-produced
Self-marketing" business model, reducing the cost of intermediate links.
2 What's your company advantages?
As the leading manufacturer of forest machines, we have exported to European market for more than ten years, familiar with forest and farm market and can recommend to clients right products.
3 Can we buy one sample?
Yes, one sample order is welcome. However, we need to add sample fee to the price and will return it back to you after receiving your large order in future.
4 What's your delivery time?
After receiving your payment, we start to produce your order. It usually takes about 15-45 days depending on the products you order.
5 How do you control your quality?
To guarantee high quality and efficient management, our whole manufacturing processes are under a very serious and strict system,and we have passed ISO9001 quality management system certificate. All of our products are 100% inspected before shipment.
6 Why choose Rima?
A. Very competitive advantage products!
B. 7 days money refund in case of bad quality!
C. Small order welcome!
D. Alibaba trade assurance payment for your safety!
E. QC for each product before delivery
7 What's your product warranty?
The warranty time of the machine is one year. During this period, we will send you the replacement for the broken part(not man made).To meet the every demand of customer is our goal. We are standing by for any question of customer. We try to make our service fast, efficient and satisfied.
8 What's your company mainly exporting market?
We mainly export to European, North American, Australia, English and Southeast Asia Market. Because of good quality and service,we have establish good and long business relations with many clients. Welcome clients from all over the world to visit our factory.
9 If I need different measurements or weight, could you offer OEM service?
Sure, we can provide OEM service, also we can make new mould for your product, attaching your name brand.
We have our own factory, mainly manufacture Forestry & Farm Machinery, using "Self-produced
Self-marketing" business model, reducing the cost of intermediate links.
2 What's your company advantages?
As the leading manufacturer of forest machines, we have exported to European market for more than ten years, familiar with forest and farm market and can recommend to clients right products.
3 Can we buy one sample?
Yes, one sample order is welcome. However, we need to add sample fee to the price and will return it back to you after receiving your large order in future.
4 What's your delivery time?
After receiving your payment, we start to produce your order. It usually takes about 15-45 days depending on the products you order.
5 How do you control your quality?
To guarantee high quality and efficient management, our whole manufacturing processes are under a very serious and strict system,and we have passed ISO9001 quality management system certificate. All of our products are 100% inspected before shipment.
6 Why choose Rima?
A. Very competitive advantage products!
B. 7 days money refund in case of bad quality!
C. Small order welcome!
D. Alibaba trade assurance payment for your safety!
E. QC for each product before delivery
7 What's your product warranty?
The warranty time of the machine is one year. During this period, we will send you the replacement for the broken part(not man made).To meet the every demand of customer is our goal. We are standing by for any question of customer. We try to make our service fast, efficient and satisfied.
8 What's your company mainly exporting market?
We mainly export to European, North American, Australia, English and Southeast Asia Market. Because of good quality and service,we have establish good and long business relations with many clients. Welcome clients from all over the world to visit our factory.
9 If I need different measurements or weight, could you offer OEM service?
Sure, we can provide OEM service, also we can make new mould for your product, attaching your name brand.
