Quick Details
-
Brand Name:
-
Laigong
-
Motor Power:
-
58kw
-
Charging Capacity:
-
2
-
Reclaiming capacity:
-
1.5
-
Speed of Mixing Drum:
-
16T/MIN
-
Water Supply Mode:
-
manual
-
Outline Dimension:
-
5350*1800*2900mm
-
Marketing Type:
-
New Product
-
Weight (KG):
-
4500 kg
-
wheel base:
-
1500mm
-
Dumping height:
-
1080mm
-
Minimum ground clearance:
-
270mm
-
Fuel consumption:
-
5.0-7.0 l/h
-
Maximum drive speed:
-
25km/h
-
Valid output:
-
1.5m3
-
Drum Capacity:
-
2.0m3
-
concrete pump:
-
concrete pump
-
concrete mixer truck:
-
concrete mixer truck
-
mini self loading concrete mixer:
-
mini self loading concrete mixer
Quick Details
-
Mixing Power:
-
58kw
-
Productivity:
-
2M³/H
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Laigong
-
Motor Power:
-
58kw
-
Charging Capacity:
-
2
-
Reclaiming capacity:
-
1.5
-
Speed of Mixing Drum:
-
16T/MIN
-
Water Supply Mode:
-
manual
-
Outline Dimension:
-
5350*1800*2900mm
-
Marketing Type:
-
New Product
-
Weight (KG):
-
4500 kg
-
wheel base:
-
1500mm
-
Dumping height:
-
1080mm
-
Minimum ground clearance:
-
270mm
-
Fuel consumption:
-
5.0-7.0 l/h
-
Maximum drive speed:
-
25km/h
-
Valid output:
-
1.5m3
-
Drum Capacity:
-
2.0m3
-
concrete pump:
-
concrete pump
-
concrete mixer truck:
-
concrete mixer truck
-
mini self loading concrete mixer:
-
mini self loading concrete mixer

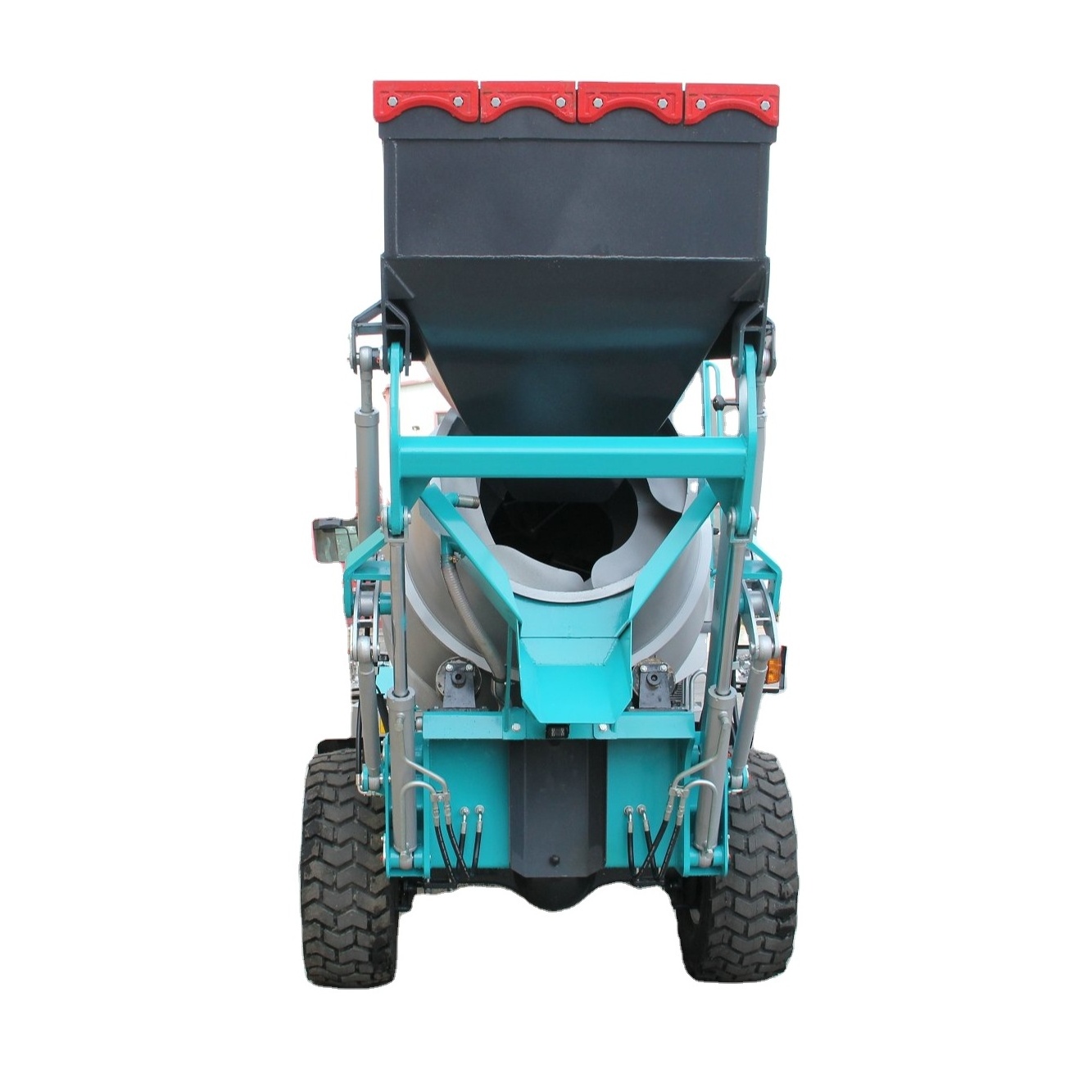

LAIGONG H15 self loading mixer is a very powerful product, with compact size, strong engine power and optimized transmission, widely used in agriculture and forestry.
Products Description
|
Model
|
Unit
|
H15
|
|
Engine Type
|
/
|
Yunnei490 Turbocharging
|
|
Engine power
|
kw
|
58
|
|
Drum Capacity
|
m³
|
2
|
|
Valid output
|
m³
|
1.5
|
|
Overall dimension L*W*H
|
mm
|
5350*1800*2900
|
|
Axle base
|
mm
|
2450
|
|
Wheel base
|
mm
|
1500
|
|
Dumping height
|
mm
|
1080
|
|
Minimum ground clearance
|
mm
|
270
|
|
Total weight
|
kgs
|
4500
|
|
Fuel consumption
|
L/H
|
5.0-7.0
|
|
Maximum drive speed
|
KM/H
|
25
|
|
Tank rotation speed
|
Turn/minute
|
16
|
|
Tank rotation angle
|
°
|
0
|
|
Drive Bridge
|
/
|
small hub reductor
|
|
Gear box
|
/
|
265 splitted
|
|
Tire Dimensions
|
/
|
23.5-16
|
|
Braking distance
|
mm
|
1000
|
|
Fuel tank
|
L
|
120
|
|
Water tank
|
L
|
500
|
|
Bucket capacity
|
m³
|
0.4
|
Details Images
H15 self loading mixer
1. Multi-function: The automatic feeding mixer replaces the functions of loaders, mixers, transport vehicles, generator sets, etc.
2. Easy to operate: The operation of the automatic program is very simple, and you can learn to drive in a few hours.
3. Cost-effective: The automatic feeding mixer saves the equipment costs and labor costs of loaders, mixers, transport vehicles, generator sets, waterwheels, etc., saving time and effort, with reasonable price and high cost performance.
Related Products
H20
Total weight: 6200 kg
Water tank: 750 L
Overall dimension:
5450*2450*2800 mm
Power: 76 kw
Engine: Yunnei
Engine: Yunnei
H30
Total weight: 8000 kg
Water tank: 750 L
Overall dimension : 6150*2700*3350 mm
Power: 85kw
Engine: Yuchai
Overall dimension : 6150*2700*3350 mm
Power: 85kw
Engine: Yuchai
H40
Total weight: 10500 kg
Water tank: 750 L
Overall dimension: 6650*2860*3350 mm
Power: 92 kw
Engine: Weichai
Overall dimension: 6650*2860*3350 mm
Power: 92 kw
Engine: Weichai
