Quick Details
-
Mold Height(mm):
-
180 - 500 mm
-
Ejector Stroke(mm):
-
140 mm
-
Ejector Force(kN):
-
70 kN
-
Theoretical Shot Volume(cm³):
-
498 cm³
-
Injection Rate (g/s):
-
190 g/s
-
Injection Weight (g):
-
453 g
-
Screw Speed (rpm):
-
1 - 215 rpm
-
Screw diameter (mm):
-
52 mm
-
Screw L/D Ratio:
-
21.5
-
Weight (KG):
-
5700 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
435 mm
-
Model Number:
-
OST-2000
-
Brand Name:
-
OSTAR
-
Power (kW):
-
18.5 kW
-
Product name:
-
bucket injection molding machine
-
energy saving:
-
servo motor
-
Clamping Force (kN):
-
2000
-
After-sales Service Provided:
-
Field Installation
-
Application:
-
plastic bucket
-
Injection pressure:
-
16Mpa
-
Spare parts:
-
Free parts
-
Mold&auxiliary:
-
provide with machine
-
Machine testing video:
-
provided
-
Testing report:
-
provided
-
Marketing Type:
-
New Product 2020
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
460mm
-
Distance between Tie Bars(Height)(mm):
-
460mm
-
Plasticizing Capacity(g/s):
-
22.3
-
Mold Height(mm):
-
180 - 500 mm
-
Ejector Stroke(mm):
-
140 mm
-
Ejector Force(kN):
-
70 kN
-
Theoretical Shot Volume(cm³):
-
498 cm³
-
Injection Rate (g/s):
-
190 g/s
-
Injection Weight (g):
-
453 g
-
Screw Speed (rpm):
-
1 - 215 rpm
-
Screw diameter (mm):
-
52 mm
-
Screw L/D Ratio:
-
21.5
-
Weight (KG):
-
5700 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
435 mm
-
Model Number:
-
OST-2000
-
Brand Name:
-
OSTAR
-
Power (kW):
-
18.5 kW
-
Product name:
-
bucket injection molding machine
-
energy saving:
-
servo motor
-
Clamping Force (kN):
-
2000
-
After-sales Service Provided:
-
Field Installation
-
Application:
-
plastic bucket
-
Injection pressure:
-
16Mpa
-
Spare parts:
-
Free parts
-
Mold&auxiliary:
-
provide with machine
-
Machine testing video:
-
provided
-
Testing report:
-
provided
-
Marketing Type:
-
New Product 2020

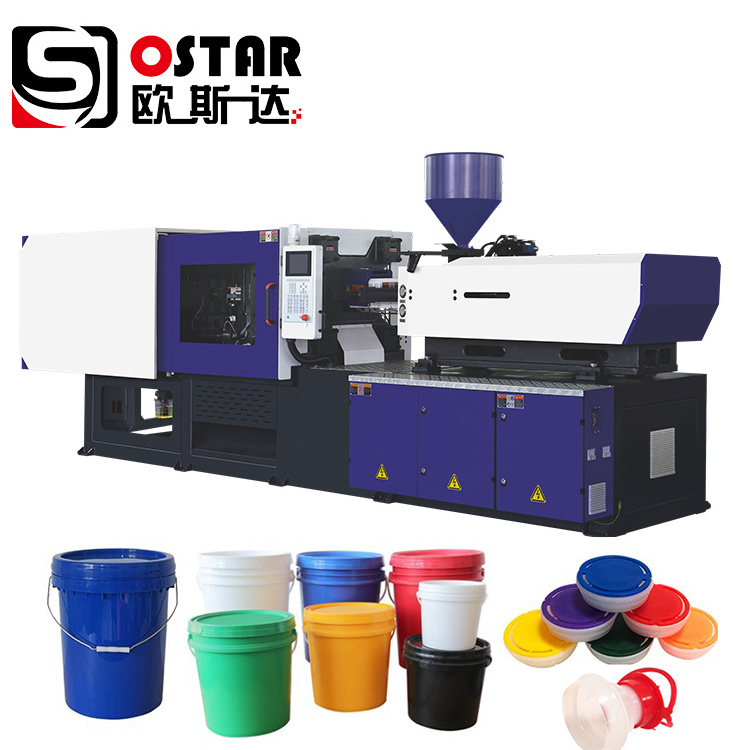

Products Name: low price 1L 2L 4L 5L plastic paint bucket handle cover making injection molding machine
Machine Specification:
|
MACHINE MODEL |
UNIT |
OST-2000 |
||
|
INJECTION DEVICE |
|
|||
|
SCREW DIAMETER |
MM |
45 |
48 |
52 |
|
SCREW DOAMETER RATIO |
L/D |
21.5 |
20.2 |
18.6 |
|
THEORETICAL SHOT VOLUME |
CM3 |
373 |
425 |
498 |
|
INJECTION WEIGHT ( PS) |
G |
340 |
387 |
453 |
|
INJECTION RATE ( PS) |
G/S |
142 |
162 |
190 |
|
INJECTION PRESSURE |
MPA |
188 |
165 |
140 |
|
PLASTICIZING CAPACITY( PS) |
G/S |
20 |
22.3 |
24 |
|
SCREW SPEED |
RPM |
215 |
||
|
CLAMPING UNIT |
|
|||
|
CLAMPING FORCE |
KN |
2000 |
||
|
TOGGLE STROKE |
MM |
436 |
||
|
SPACE BETWEEN TIE-BARS |
MM |
460X460 |
||
|
MIN-MAX MOULD THICKNESS |
MM |
180-500 |
||
|
EJETION STROKE |
MM |
140 |
||
|
EJECTING FORCE |
KN |
70 |
||
|
EJECTOR NUMBER |
PC |
5 |
||
|
OTHER |
|
|||
|
MAXIMUM SYSTEM PRESSURE |
MPA |
16 |
||
|
OIL PUMP MOTOR POWER |
KW |
18.5( 22) |
||
|
HEATER POWER |
KW |
14.1 |
||
|
OIL TANK CAPACITY |
KG |
300 |
||
|
OVERALL DIMENSION (ROUGH ) |
MM |
5200X1457X2036 |
||
|
MACHINE WEIGHT ( ROUGH ) |
TONS |
5.7 |
||
Plastic Bucket Photos:
Machine Features:
1) Optimized machine mechanical designe, for better products quality.
2) Imported brand hydraulic component, electrical component, for machine stability.
3) Professional PLC controller, fast response system, high precision operation.
4) High hardness tie bars, durable Ceramic or cast aluminium heaters.
5) Large torque oil motor, guarantee good plasticizing for all kinds of plastic material.
6) Balanced double cylinders injection system, enlarged tie bar space and toggle stroke.
7) Servo motor energy saving system, reduce over 60% electricity consumption.
8) Safety device on hydraulic, electric and mechanical, avoid any potential damage.
Company Introducation:
Zhangjiagang Ostar Machinery Co. Ltd, one of the professional manufacturer for plastic injection molding machine in China, focus on machine manufacturing, developing and sales. Company founded in 2000, mainly on plastic injection molding machine, mold and related auxiliary, our main purpose is to offer top quality machine, professional service, growing together with our customers.
Ostar Machinery manufacture machines from 70T to 2000T, injection weight from 50g to 10000g, more than 30 different model machines, over 1500sets machine output ability yearly. Due to continually developing innovation and technological improvement, our machines has exported worldwide, with a good reputation all around world.
