Quick Details
-
Fiber Optic cable Type:
-
Coaxial
-
fiber:
-
double mode multi fiber optic
-
Fiber Optic cable jacket material:
-
PE ,TPU,LSZH
-
Product name:
-
ADSS-PE outdoor fiber optical cable 24 core 48 core
-
core:
-
2,4,6,8,12,16,24 ,48,72,96,144,288core
-
install type:
-
buried ,Overhead,aerial fiber cable
-
Color:
-
Black/white
-
Warranty:
-
30 Years
-
Armored/Armoured:
-
PSP,ALP
Quick Details
-
Brand Name:
-
Necero
-
Model Number:
-
Adss
-
Place of Origin:
-
Guangdong, China
-
Fiber Optic cable Type:
-
Coaxial
-
fiber:
-
double mode multi fiber optic
-
Fiber Optic cable jacket material:
-
PE ,TPU,LSZH
-
Product name:
-
ADSS-PE outdoor fiber optical cable 24 core 48 core
-
core:
-
2,4,6,8,12,16,24 ,48,72,96,144,288core
-
install type:
-
buried ,Overhead,aerial fiber cable
-
Color:
-
Black/white
-
Warranty:
-
30 Years
-
Armored/Armoured:
-
PSP,ALP

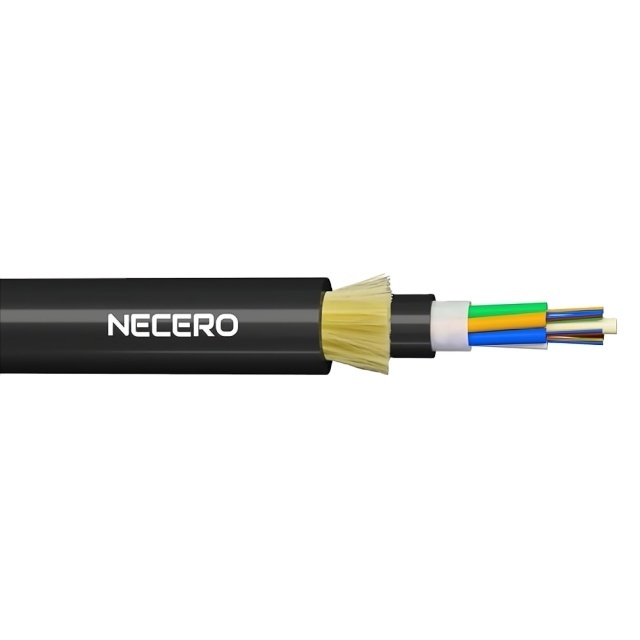

High Quality Double Jacket Adss Outdoor 144 Core Single Mode G652D Aerial Adss Fiber Optic Cable
Products Description
|
|
|
G.652
|
G.655
|
50/125μm
|
62.5/125μm
|
|
|
Attenuation
(+20℃) |
@850nm
|
|
|
≤3.0 dB/km
|
≤3.0 dB/km
|
|
|
|
@1300nm
|
|
|
≤1.0 dB/km
|
≤1.0 dB/km
|
|
|
|
@1310nm
|
≤0.36 dB/km
|
≤0.40 dB/km
|
|
|
|
|
|
@1550nm
|
≤0.22 dB/km
|
≤0.23 dB/km
|
|
|
|
|
Bandwidth (Class A)
|
@850nm
|
|
|
≥500 MHz·km
|
≥200 MHz·km
|
|
|
|
@1300nm
|
|
|
≥1000 MHz·km
|
≥600 MHz·km
|
|
|
Numerical Aperture
|
|
|
|
0.200±0.015NA
|
0.275±0.015NA
|
|
|
Cable Cut-off Wavelengthλcc
|
|
≤1260nm
|
≤1480nm
|
|
|
|
