Quick Details
-
Model Number:
-
4kw
-
Power:
-
4kw
-
Battery voltage:
-
48v DC
-
Duty:
-
S2-60min
-
Motor:
-
three phase,AC,brushless motor
-
Protection grade:
-
IP54
-
Insulation grade:
-
H
-
Rated speed:
-
3000rpm
-
Brake:
-
hydraulic/mechanics
-
Noise:
-
45dB
-
Max system torque:
-
80N.m
Quick Details
-
AC Voltage:
-
48v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GA
-
Model Number:
-
4kw
-
Power:
-
4kw
-
Battery voltage:
-
48v DC
-
Duty:
-
S2-60min
-
Motor:
-
three phase,AC,brushless motor
-
Protection grade:
-
IP54
-
Insulation grade:
-
H
-
Rated speed:
-
3000rpm
-
Brake:
-
hydraulic/mechanics
-
Noise:
-
45dB
-
Max system torque:
-
80N.m
We provide the key parts of the electric vehicle( motor, controller, rear axle, gear box and etc ), moreover we provide one-stop service and integrated solutions !
48V 4KW three phase AC motor for electric mobility scooter,electric golf cart,electric car and other electric vehicles
The advantages of the green motor are as below:
1. Simple structure
2. Reliable operation
3. Easy maintenance
4. High technological
5. Low vibration
6. Minimum noise
| Motor power | 4KW |
| Rated voltage | 28V AC |
| Battery voltage | 48V DC |
| Rated frequency | 95 Hz |
| Rated speed | 3000 RPM |
| Speed range | 0-6000 RPM |
| Rated current | 80A |
| Spline | Internal splines,18 tooth |
| Ambient temperature | -20°C~40°C |
| Protection grade | IP54 |
| Insulation grade | H |
| Max.torque | 80 N.M |
| Duty | S2-60MIN |
We will suggest a suitable program according to your vehicle information!

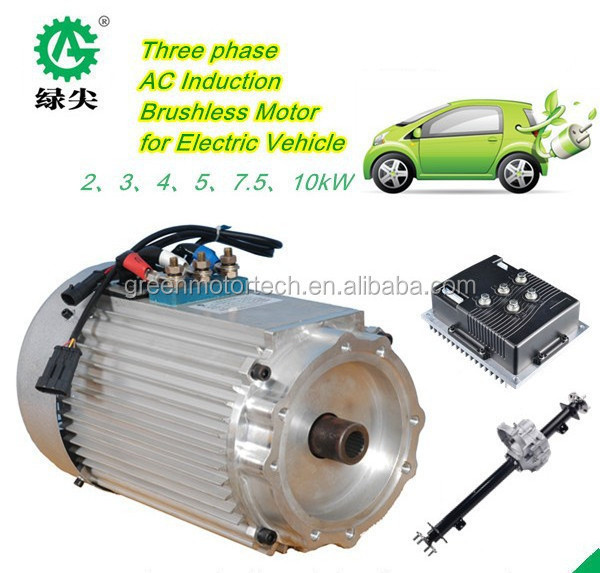

Pictures of AC motor
Pictures of driving system
We also provide driving system!
The advantages of the dirving kits of Green Motor are as below:
1. Heartbeat price : Collaborative pricing strategy of motor, electric controller and axle, cutting extra profit for customers.
2. Integrated performance : Integrated drive assembly could solve the matching problem of the power transmission system components.
3. One-time delivery : Integration of all components of the production cycle, could improve the efficiency of supply chain.
4. One-stop service : The integrated service of providing assembly parts including pre-sale service, sale service, and after- sale service.
- One year guarantee.
- Long time freely technical support.
- 24 hours technical support by e-mail.
- English software to program, user manual.
- Free program design for your electric vehicles.
