The unit uses the well-known hermetic efficient scroll compressor and the optimized scroll and sealing ring so that the
refrigerant compressor features axial and radial flexibility. This not only effectively reduces refrigerant leakage, but also
raises the volumetric efficiency of the compressor. Moreover, each compressor is equipped with a unidirectional discharge valve to avoid backflow of the refrigerant and ensure that the compressor can run stably in the full operating condition.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ZERO
-
Dimension(L*W*H):
-
2200mm*1720mm*2100mm
-
Weight:
-
1590 KG
-
Refrigerant Type:
-
R410A
-
Cooling capacity:
-
66-260 kW
-
Heating Capacity:
-
70-280 kW
-
Compressor:
-
Danfoss / Copeland Scroll Compressor
-
Water Side Heat Exchanger:
-
High shell & Tube heat exchanger
-
Net weight:
-
1460kg/2050kg/2930kg/3700kg
-
Operating weight:
-
1590kg/2250kg/3380kg/4200kg
-
Optional auxiliary electric heating:
-
18-63 kW
-
Certification:
-
CE
Quick Details
-
Core Components:
-
Compressor
-
Condition:
-
NEW100%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZERO
-
Dimension(L*W*H):
-
2200mm*1720mm*2100mm
-
Weight:
-
1590 KG
-
Refrigerant Type:
-
R410A
-
Cooling capacity:
-
66-260 kW
-
Heating Capacity:
-
70-280 kW
-
Compressor:
-
Danfoss / Copeland Scroll Compressor
-
Water Side Heat Exchanger:
-
High shell & Tube heat exchanger
-
Net weight:
-
1460kg/2050kg/2930kg/3700kg
-
Operating weight:
-
1590kg/2250kg/3380kg/4200kg
-
Optional auxiliary electric heating:
-
18-63 kW
-
Certification:
-
CE

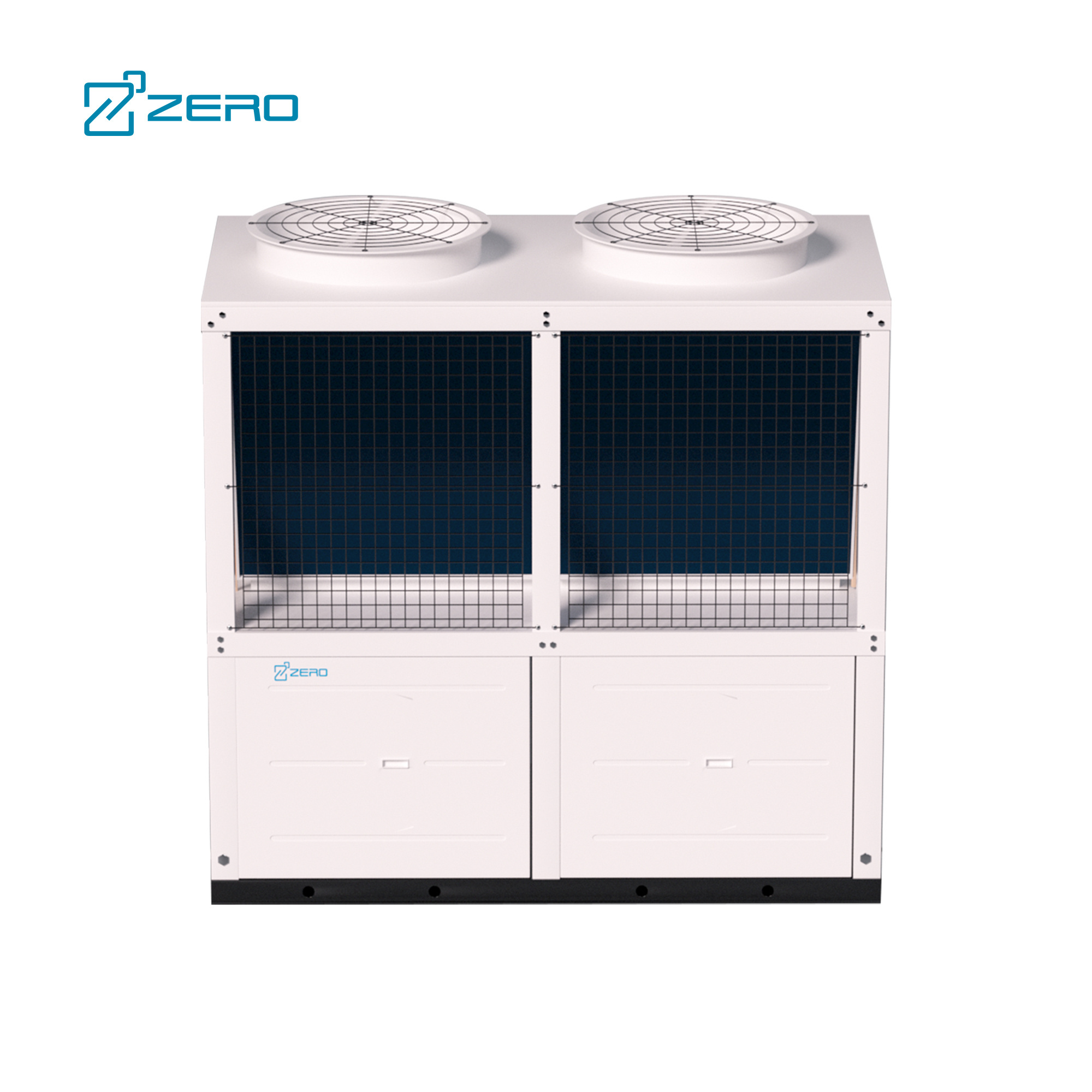

Zero Air-cooled scroll chiller
Air-cooled scroll chiller (heat pump) uses cooling parts and control components provided by world-famous manufacturers, together with the most cutting-edge intelligent control system, to make it highly efficient,
energy conserving, stable and reliable. With a wide variety of cations and functions, it supports the control over up to 8 units at the same time; it can also be connected to the building automation system (BAS) to easily meet various air-conditioning requirements in different places.Without a cooling water system, air-cooled scroll chiller (heat pump) is simple in its pipeline network, easily installed, cost effective, and short in construction period and can be invested by stages. The system is widely applied to various situations for comfortableness and arts and crafts, such as villas, hotels, hospitals,office buildings, restaurants, supermarkets and theaters.
Our Advantages
Efficient flexible scroll compressor
Efficient water-side shell-and-tube heat exchanger
he water-side heat exchanger employs the efficient shelland-tube heat exchanger. Compared with the plate heat exchanger, the
shell-and-tube heat exchanger provides wider water-side channels and produces less water resistance and scale, with less
possibility of being blocked by impurity. Therefore, the shell-and-tube heat exchanger raises lower requirements for water quality
and is equipped with more powerful anti-freezing capability.
shell-and-tube heat exchanger provides wider water-side channels and produces less water resistance and scale, with less
possibility of being blocked by impurity. Therefore, the shell-and-tube heat exchanger raises lower requirements for water quality
and is equipped with more powerful anti-freezing capability.
Self-developed Microcomputer Control Panel
High Precision Electronic Expansion Valve
Multiple Protection Functions, Providing Safety And Stability
|
Zero Air-cooled Scroll Chiller (Heat Pump) Feature:
|
|
|
|
|
||||
|
1.High efficency
|
|
|
|
|
||||
|
2.Excellent capacity
|
|
|
|
|
||||
|
3.· Free Master Module Design
|
|
|
|
|
||||
|
4.Intelligent Defrosting
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
5.Intelligent Air Volume Regulation
|
|
|
|
|
||||
|
6.· Widely Operation Range(Low Temperature Cooling 5-48/Low Temperature Heating -15-48)
|
|
|
|
|
||||
|
7.Intelligent Energy Regulation Technology
|
|
|
|
|
||||
|
8.Compact Design and less Occupied Area
|
|
|
|
|
||||
|
9.Self-Developed Microcomputer
|
|
|
|
|
||||
Factory Profile
Founded by a group of passionate HVAC/R veterans, Zero Technologies strive to build up an integrated platform for overseas buyers and Chinese factories. We are professional to provide customers right HVAC/R solutions with right price, with deep understanding of global markets and comprehensive expertise of Chinese HVAC/R supply chains, Zero Technologies could proudly provide the best quality products, services, one-stop project solutions with affordable prices.
Zero Technologies provides a wide variety of high efficiency systems in residential and commercial applications, as well as parts, tools and other supplies (Including OEM & ODM services) for any home or commercial projects. We have an unrelenting focus on quality, delivery and value, Zero technology is always your reliable partner for HVAC/R supplies.
