Quick Details
-
Screw Speed (rpm):
-
80 rpm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SWAN INT'L
-
Voltage:
-
220V 380V 400V 440V
-
Dimension(L*W*H):
-
customization
-
Weight:
-
customization
-
Plastic Machine:
-

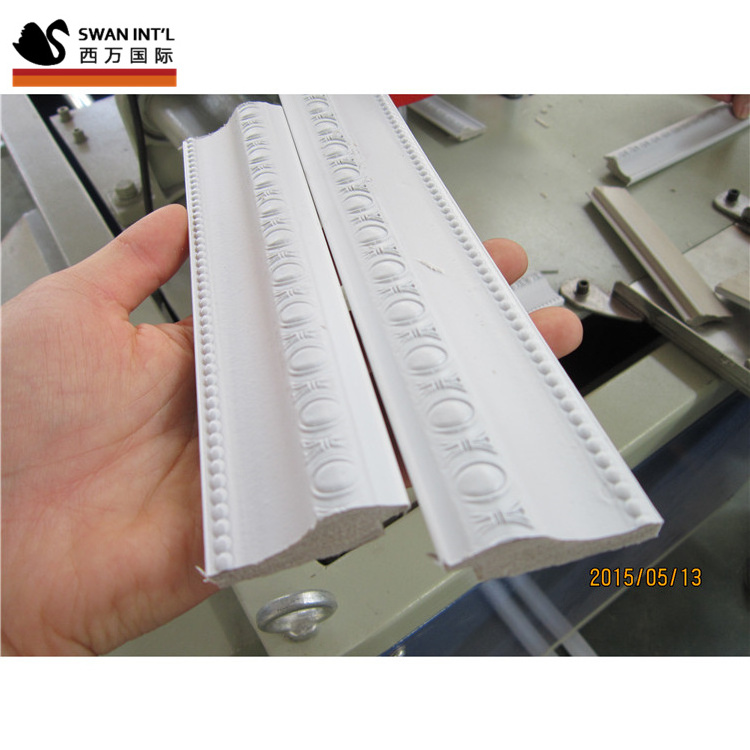

PS foaming picture frame prodution
-
Raw material:
-
PP PE PVC
-
Product Type:
-
Pvc Profile Extrusion Machine
-
Automatic Grade:
-
FULL-AUTO
-
Power:
-
customization
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Online support
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
None
-
Marketing Type:
-
New Product 2020
-
Output (kg/h):
-
50 - 60 kg/h
-
Certification:
-
CE
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
28:1
-
Screw diameter (mm):
-
65 mm
-
Screw Speed (rpm):
-
80 rpm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SWAN INT'L
-
Voltage:
-
220V 380V 400V 440V
-
Dimension(L*W*H):
-
customization
-
Weight:
-
customization
-
Plastic Machine:
-
PS foaming picture frame prodution
-
Raw material:
-
PP PE PVC
-
Product Type:
-
Pvc Profile Extrusion Machine
-
Automatic Grade:
-
FULL-AUTO
-
Power:
-
customization
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Online support
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
None
-
Marketing Type:
-
New Product 2020
-
Output (kg/h):
-
50 - 60 kg/h
-
Certification:
-
CE
product detail
|
SJ65/28 single screw extruder
|
|
|
|
Diameter of screw
|
65mm
|
|
|
Rotating speed of screw
|
80r/mim
|
|
|
L/D
|
28:1
|
|
|
Power of main motor
|
22kw
|
|
|
Heating power of barrel
|
16kw
|
|
|
Output
|
50-60kg/h
|
|
|
Center height
|
1000mm
|
|
|
Temperature control of barrel
|
Heating: cast aluminum heater
Cooling : 3 sections wind cooling |
|
|
Material of screw and barrel |
38CrMoAlA
Azotizing on surface 0.4～0.7mm Rigidity: above 700HV |
|
|
Screw core temperature control thermoregulation system
|
Oil heating
|
|
|
Drive method
|
Hard tooth gearbox
|
|
|
Powder supply
|
380V 60HZ 3phase
(Can according to your needs) |
|
