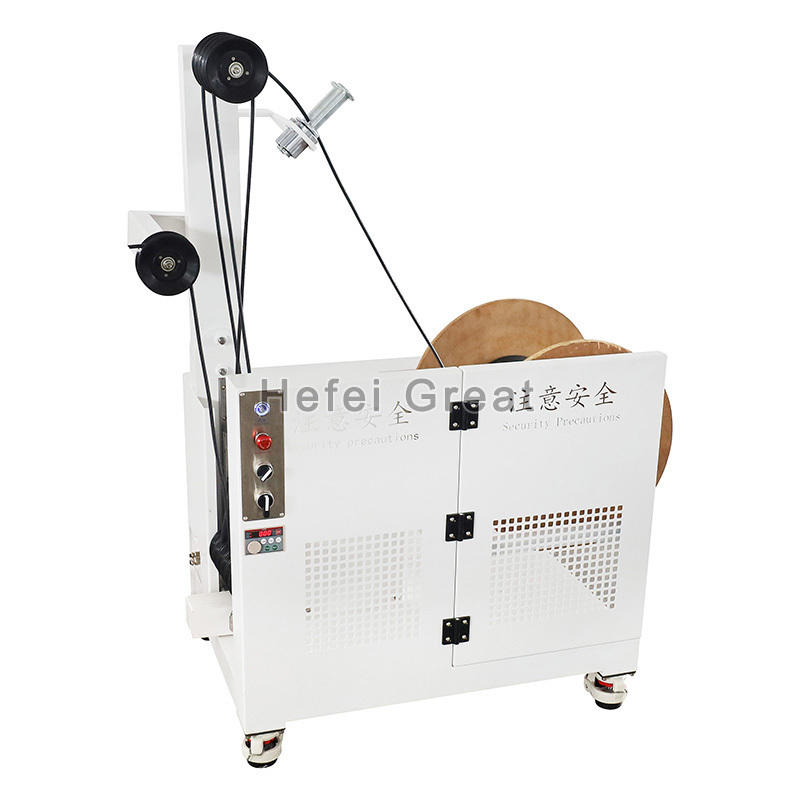

This fully automatic wire feeder eliminates the trouble of manual wire feeding. It is suitable for various wires and cables.
○
Main body material: welded with high quality national standard rectangular tube, the structure is firm and the appearance is beautiful
○
Maximum feeding speed is 4 m/s, and maximum wire diameter is 18mm
○
Cable spool max diameter: 600mm
○
Max Load weight: 60KG
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
GT-A1-F380
-
Product name:
-
Wire and Cable Prefeeding Dereeler Machine
-
Function:
-
High-speed feeding and rewinding cable and wire
-
Feeding cable type:
-
Wire, cable, PVC cable, etc.
-
Cable range:
-
0.5-10mm2
-
Speed:
-
0-4M/s
-
Cable max diameter:
-
18mm
-
Cable spool max diameter:
-
600mm
-
Max load weight:
-
Max load weight
-
Induction type:
-
proximity switch, multi-speed
-
Drive type:
-
Inverter + motor + reducer
Quick Details
-
Use:
-
Wire Prefeeder
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
GT
-
Model Number:
-
GT-A1-F380
-
Product name:
-
Wire and Cable Prefeeding Dereeler Machine
-
Function:
-
High-speed feeding and rewinding cable and wire
-
Feeding cable type:
-
Wire, cable, PVC cable, etc.
-
Cable range:
-
0.5-10mm2
-
Speed:
-
0-4M/s
-
Cable max diameter:
-
18mm
-
Cable spool max diameter:
-
600mm
-
Max load weight:
-
Max load weight
-
Induction type:
-
proximity switch, multi-speed
-
Drive type:
-
Inverter + motor + reducer
Specification
|
Model Number
|
GT-A1-F380
|
|
Product name
|
Automatic Wire Pre-Feeder Machine
|
|
Function
|
High-speed feeding and rewinding cable and wire
|
|
Feeding cable type
|
Wire, cable, PVC cable, etc.
|
|
Cable range
|
0.5-10mm2
|
|
Speed
|
0-4M/s
|
|
Cable max diameter
|
Φ18
|
|
Cable spool max diameter
|
600mm
|
|
Max load weight
|
60kg
|
|
Induction type
|
proximity switch, multi-speed
|
|
Drive type
|
Inverter + motor + reducer
|
|
Remarks
|
The machine can be customized for processing special cables,
and the sample cable should be sent to us for test. |
|
Dimension
|
89*75*100cm
|
|
Weight
|
80kg
|
Products Description
Wire and Cable Prefeeding Dereeler Machine
