Quick Details
-
Brand Name:
-
HELI
-
Fork Length:
-
920mm
-
Fork Width:
-
122mm
-
Overall Dimensions:
-
920*122*40mm
-
Weight (KG):
-
3370 kg
-
Drive:
-
Gasoline
-
Load Center:
-
500mm
-
Overall height:
-
2150mm
-
Rated Capacity:
-
2000kg
-
overall length:
-
2580mm
-
overall width:
-
1150mm
-
Tyre type:
-
Pneumatic tyre
-
Operator type:
-
Seat-type
-
Service brake:
-
Hydraulic-foot
-
Parking brake:
-
Mechanical-Hand Lever
Quick Details
-
Min. Lifting Height:
-
2150mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
HELI
-
Fork Length:
-
920mm
-
Fork Width:
-
122mm
-
Overall Dimensions:
-
920*122*40mm
-
Weight (KG):
-
3370 kg
-
Drive:
-
Gasoline
-
Load Center:
-
500mm
-
Overall height:
-
2150mm
-
Rated Capacity:
-
2000kg
-
overall length:
-
2580mm
-
overall width:
-
1150mm
-
Tyre type:
-
Pneumatic tyre
-
Operator type:
-
Seat-type
-
Service brake:
-
Hydraulic-foot
-
Parking brake:
-
Mechanical-Hand Lever

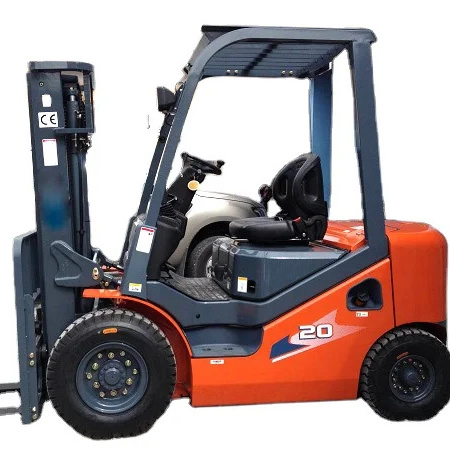

Product Overview
Powerful engine and transmission system
Power and transmission system is composed of excellent components by using advanced manufacturing technology and machine and high quality engine.
This combination made the truck powerful reliable
Reliable special designed instrument
Solid State Digital instrument with built-in intellectual chip, what makes it sensitively, accurately, reliably, low power consumption and long-life. It also works in wide temperature range(-40℃~+80℃) and with high interference resistant capability.
Scientific ergonomic application
We use scientific ergonomic method to design H2000 Forklift truck. The operation space has been efficiently enlarged. The rough feeling of the driver has been reduced to the lowest extends.
Strict environment protection design
All the safety concerned key components, such as steering axle with rubber, front axle and mast etc, should pass severed reliability tests. Thicken insulator on the inner surface and the rubber edging can absorb vibration and reduce noise.
Product Paramenters
|
Model
|
|
CPC20/CPCD20/CP(Q)(Y)20/CP(Q)(Y)D20
|
CPC25/CPCD25/CP(Q)(Y)25/CP(Q)(Y)D25
|
CPC30/CPCD30/CP(Q)(Y)30/CP(Q)(Y)D30
|
CPC35/CPCD35/CP(Q)(Y)35/CP(Q)(Y)D35
|
|||
|
Rated capacity
|
KG
|
2000
|
2500
|
3000
|
3500
|
|||
|
Load center
|
mm
|
500
|
500
|
500
|
500
|
|||
|
Length to face of fork
|
mm
|
2098
|
2098
|
2098
|
2342
|
|||
|
Overall width
|
mm
|
1150
|
1150
|
1225
|
1225
|
|||
|
Mast lowered height
|
mm
|
1995
|
1995
|
1995
|
2070
|
|||
|
Max.lifting height
|
mm
|
3000
|
3935
|
3935
|
4040
|
|||
