Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
RUNTAIDA
-
Model Number:
-
RC
-
Product name:
-
connector pipe stainless steel band pipeline leak repair clamp 300mm
-
Size:
-
DN25 - DN500
-
Seal ring material:
-
NR, EPDM, NBR, Neoprene,etc
-
MOQ:
-
1 piece
-
Certificate:
-
ISO9001, TUV, WRAS, CO, MTC, PL, IV etc
-
Packing:
-
Wooden Case
-
Application:
-
Water, gas, oil, etc.
-
Usage:
-
Pipe quick easy pipe repair clamp
-
Manufacturer:
-
Yes, factory add: Gongyi City,China
-
Product drawing:
-
Offer
Quick Details
-
Technics:
-
Stamping
-
Shape:
-
Equal
-
Head Code:
-
Round
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
RUNTAIDA
-
Model Number:
-
RC
-
Product name:
-
connector pipe stainless steel band pipeline leak repair clamp 300mm
-
Size:
-
DN25 - DN500
-
Seal ring material:
-
NR, EPDM, NBR, Neoprene,etc
-
MOQ:
-
1 piece
-
Certificate:
-
ISO9001, TUV, WRAS, CO, MTC, PL, IV etc
-
Packing:
-
Wooden Case
-
Application:
-
Water, gas, oil, etc.
-
Usage:
-
Pipe quick easy pipe repair clamp
-
Manufacturer:
-
Yes, factory add: Gongyi City,China
-
Product drawing:
-
Offer

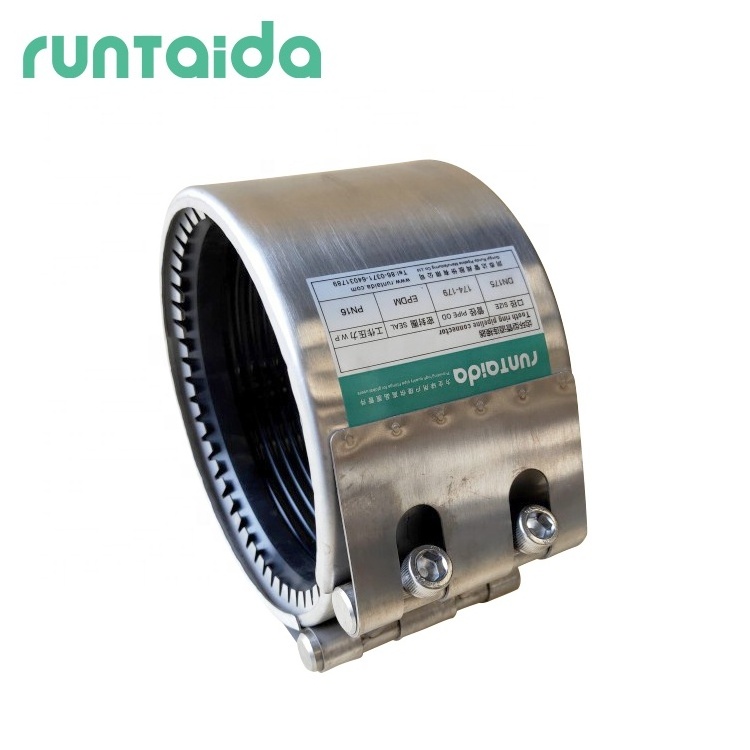

Runtaida hdpe water quick coupling lengthened connector pipe stainless steel band pipeline leak repair clamp 300mm
Runtaida Multi-functional repair clamp flexible connection,strong corrosion resistance,no need for welding,space saving,unlimited pipe,pressure sealing,easy installation.suitable for any pipe with different connecting materials,different axes and different diameters,suitable for rapid repair.
The advantages of the clamp:
1.Operation is simple.
2.Is beneficial to the safety of construction.
3.The stability of the system is good and the maintenance is convenient.
4.the price is cheaper.
Model |
Diameter (MM) |
Pipe OD (MM) |
Length | Tube pitch |
Pressure (M) |
Preload (Nm) |
||
Ordinary type | Lengthening type | Ordinary type | Lengthening type | |||||
25 | 34 | 33-35 | 60 | 100 | 5 | 5 | 2.5 | 50-80 |
32 | 42 | 42-44 | 60 | 100 | 5 | 10 | 2.5 | 50-100 |
40 | 48.6 | 47-49 | 60 | 100 | 5 | 10 | 2.5 | 50-100 |
50 | 60 | 59-62 | 80 | 140 | 8 | 15 | 2.0 | 100-150 |
65 | 76 | 75-78 | 80 | 140 | 10 | 25 | 2.0 | 100-150 |
80 | 89 | 88-92 | 100 | 205 | 10 | 25 | 2.0 | 150-200 |
100 | 114 | 108-116 | 100 | 205 | 10 | 25 | 1.6 | 150-200 |
125 | 140 | 137-142 | 110 | 205 | 10 | 30 | 1.6 | 250-300 |
150 | 159 | 157-162 | 110 | 205 | 10 | 30 | 1.6 | 250-300 |
200 | 219 | 217-221 | 140 | 255 | 10 | 30 | 1.2 | 400-800 |
250 | 273 | 271-275 | 140 | 255 | 10 | 30 | 1.2 | 400-800 |
300 | 325 | 323-327 | 140 | 255 | 10 | 30 | 1.0 | 400-800 |
350 | 377 | 375-379 | 155 | 255 | 10 | 30 | 1.0 | 800-1200 |
400 | 426 | 424-428 | 155 | 255 | 10 | 30 | 0.8 | 800-1200 |
450 | 480 | 475-482 | 155 | 255 | 10 | 30 | 0.8 | 800-1200 |
500 | 530 | 526-533 | 155 | 255 | 10 | 30 | 0.8 | 1200-1500 |
Special size and length can be customized production for you, please click here to contact us now.
It can be used in the fire water system, air conditioning cold and hot water system, water supply system, petrochemical pipeline system, thermoelectric and military pipeline system, sewage treatment pipeline system and so on.There are connections below.
