Quick Details
-
Productivity:
-
40M³/H
-
Place of Origin:
-
China
-
Weight:
-
2300 kg
-
Dimension(L*W*H):
-
3400*1420*1600
-
Product name:
-
Trailer Concrete Pump
-
Concrete pump type:
-
Diesel Motor Concrete Pump Machine
-
Application:
-
Construction Projects
-
Engine:
-
Disel
-
Capacity:
-
40-80M /H
-
Color:
-
Yellow
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
120M
-
Max. horizontal conveying distance:
-
300M
-
Productivity:
-
40M³/H
-
Place of Origin:
-
China
-
Weight:
-
2300 kg
-
Dimension(L*W*H):
-
3400*1420*1600
-
Product name:
-
Trailer Concrete Pump
-
Concrete pump type:
-
Diesel Motor Concrete Pump Machine
-
Application:
-
Construction Projects
-
Engine:
-
Disel
-
Capacity:
-
40-80M /H
-
Color:
-
Yellow
Small mobile concrete pumps mobile concrete pumps construction equipment concrete small pump

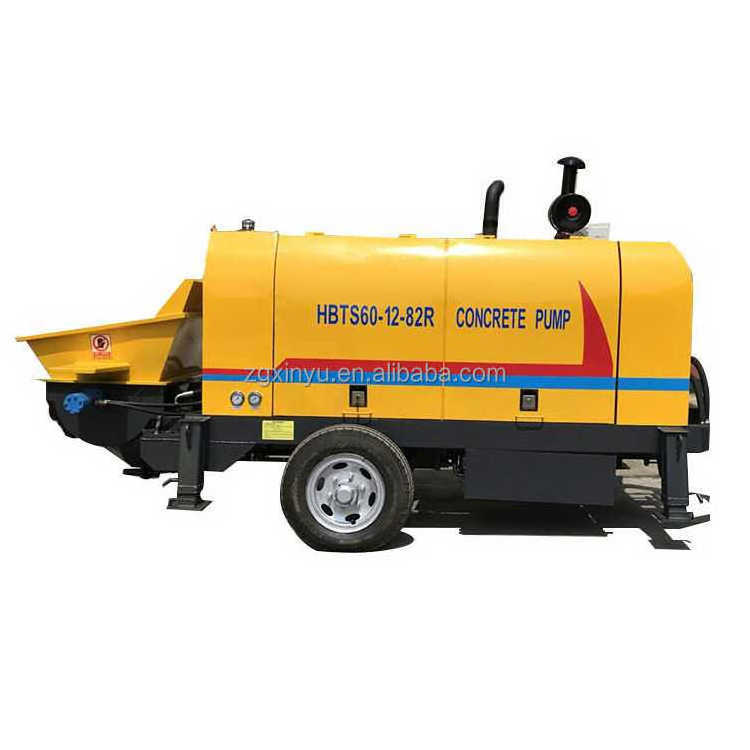

Concrete trailer pump , also known as concrete pump, consists of pump body and conveying pipe. It is a kind of machine that take advantage of pressure to continuously transport concrete along pipelines, which is mainly used in building, bridge and tunnel construction and so on.
The small model concrete pump is smaller, lighter and easy to be moved than the large model concrete pump.
Technical Parameters of Trailer concrete pump machine :
|
Items
|
Units
|
Parameters |
||
|
HBTS40-10-37 |
||||
|
Whole performance of machine |
Max. theo. concrete capacity |
m3/h |
40 |
|
|
Max.concrete pumping pressure |
MPa |
10 |
||
|
distribution valve type |
|
S Valve |
||
|
Concrete cylinder diameter×stroke |
mm |
140×845 |
||
|
Hopper capacity×feeding heigh |
L×mm |
400×1100 |
||
|
Outlet diameter |
mm |
100 |
||
|
Electrical engineering power |
kW |
37 |
||
| rated speed |
r/min |
1480 |
||
|
Hydraulic system |
Circuit type |
|
Open circuit |
|
|
Pumping system pressure |
MPa |
18 |
||
|
Mixing system pressure |
MPa |
6-8 |
||
|
Capacity of oil tank |
L |
260 |
||
|
Other parameters
|
Max pumping distance(vertical/horizontal) |
m |
100/300 |
|
|
Max. aggregate diameter |
mm |
pebble 20 |
||
|
pumping pipe diameter |
mm |
80-100 |
||
|
Dimensions:length×width×height |
mm |
3400X1420×1600 |
||
|
Total weight |
kg |
2300 |
||
