Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
THD
-
Dimension(L*W*H):
-
840*130*175mm
-
Weight:
-
7 KG
-
Working Temperature Range:
-
30 - 500 ℃
-
Core Components:
-
Ceramic plates
-
Product name:
-
Industrial infrared big burner gas stove
-
Nozzle:
-
Brass
-
Burning plate:
-
Ceramic with rare-earth catalyst
-
Operation:
-
Individual operation
-
High efficiency:
-
Start work in 8 seconds
-
Plate lifespan:
-
Above 11000hrs
-
CO:
-
<80ppm
-
NOx:
-
<10ppm
-
Application:
-
Industrial oven, power coating oven, curing oven, baking oven
Quick Details
-
Type:
-
Infrared Heater
-
Power Source:
-
NG, LPG, Propane
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
THD
-
Dimension(L*W*H):
-
840*130*175mm
-
Weight:
-
7 KG
-
Working Temperature Range:
-
30 - 500 ℃
-
Core Components:
-
Ceramic plates
-
Product name:
-
Industrial infrared big burner gas stove
-
Nozzle:
-
Brass
-
Burning plate:
-
Ceramic with rare-earth catalyst
-
Operation:
-
Individual operation
-
High efficiency:
-
Start work in 8 seconds
-
Plate lifespan:
-
Above 11000hrs
-
CO:
-
<80ppm
-
NOx:
-
<10ppm
-
Application:
-
Industrial oven, power coating oven, curing oven, baking oven

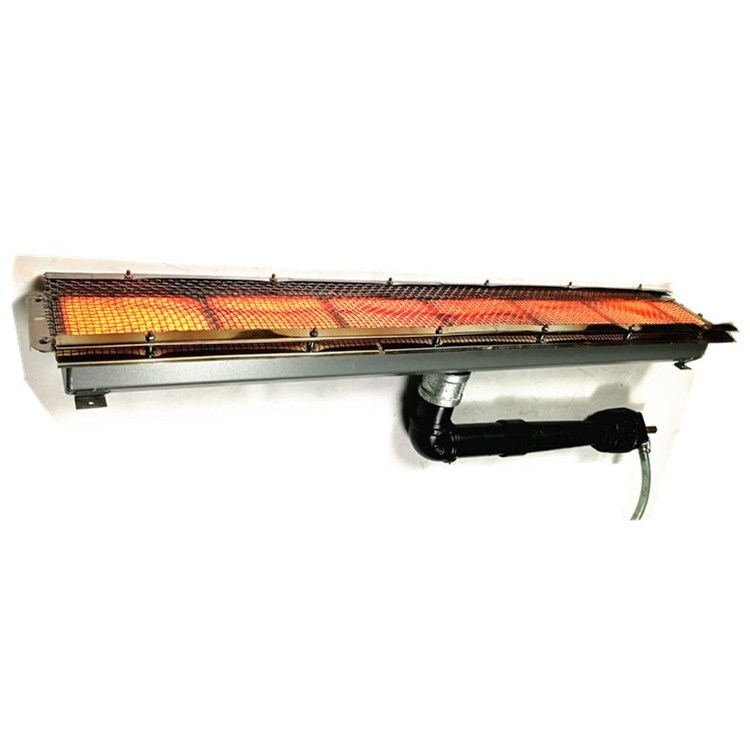

Industrial infrared big burner gas stove
There are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big. But, differently, infrared gas burner heat object directly by radiation and transfer rate will be much higher, usually it can save 10~20% gas energy and cost.
Materials of Industrial cast iron infrared big burner gas stove :
1. Shell: Galvanized steel
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron
5.Working pressure: NG:2000~5000pa;LPG:2800~5000pa
Advantages:
20% gas consumption saved, less gas Emission
The Infrared lpg burner applied catalyst technology on ceramic plates, which make burning fully and save 20% gas than normal gas burner.
Besides, it make less gas emission.
We are the Only Chinese company use catalytic on infrared gas burner.
Industrial cast iron infrared big burner gas stove application:
