Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yunda
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
up to each model
-
Weight:
-
2000 kg
-
Core Components:
-
drive, Spindle, Coupling, Feeding gear, abrasive disc, sealing ring
-
PLC Brand:
-
other
-
Product name:
-
Double Disc Refiner
-
Material:
-
SS304
-
Disc Diameter (inch):
-
20-24
-
Min. Flow (L/Min):
-
400
-
Max. Flow (L/min):
-
2500
-
Inlet consistency: %:
-
2-5
-
Maximum Inlet pressure(MPa):
-
0.35
-
Minimum Inlet Pressure(MPa):
-
0.08
-
After-sales Service Provided::
-
Field installation, commissioning and training
-
Function:
-
refining requirement
Quick Details
-
Type:
-
Pulping Equipment
-
Production Capacity:
-
2500 l/min
-
Max. workable width:
-
Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yunda
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
up to each model
-
Weight:
-
2000 kg
-
Core Components:
-
drive, Spindle, Coupling, Feeding gear, abrasive disc, sealing ring
-
PLC Brand:
-
other
-
Product name:
-
Double Disc Refiner
-
Material:
-
SS304
-
Disc Diameter (inch):
-
20-24
-
Min. Flow (L/Min):
-
400
-
Max. Flow (L/min):
-
2500
-
Inlet consistency: %:
-
2-5
-
Maximum Inlet pressure(MPa):
-
0.35
-
Minimum Inlet Pressure(MPa):
-
0.08
-
After-sales Service Provided::
-
Field installation, commissioning and training
-
Function:
-
refining requirement
Product Description

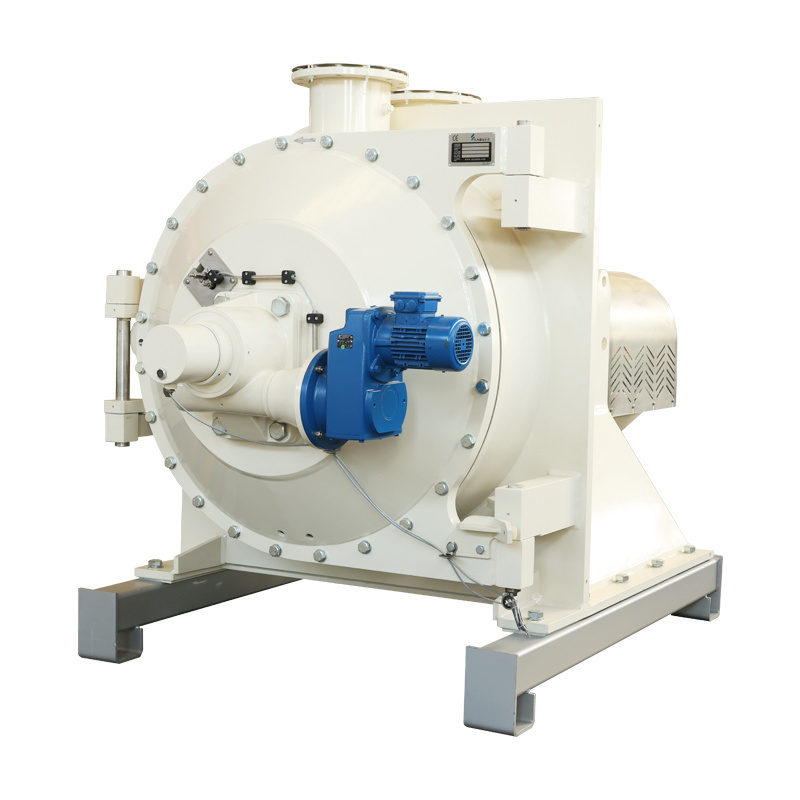

Summary of Double Disc Refiner
Double Disc Refiner is a beating equipment, featuring compact conformation, less floor area, higher efficiency, lower energy consumption, well adaptability, friendly operation, flexible adjustment and easy maintenance. It is a relatively ideal continuous pulping system at present. As required by pulping process, paper factories may choose a single set or several sets for parallel operation or series operation.
Double Disc Refiner Advantage
1.
Specially designed rotary disc is self aligned automatically under the function of stock.
2. According to refining requirement, clearance is adjustable through electromechanical device.
3. Special tool for easy and fast change of refiner disc.
2. According to refining requirement, clearance is adjustable through electromechanical device.
3. Special tool for easy and fast change of refiner disc.
4.
High strength welded structure to ensure stable and reliable operation.
Double Disc Refiner
main specification
|
Model
|
PM20
|
PM26
|
PM34
|
PM42
|
|
Disc Diameter (inch)
|
20-24
|
26-30
|
34-38
|
42-48
|
|
Min. Flow (L/Min)
|
400
|
800
|
1500
|
2500
|
|
Max. Flow (L/min)
|
2500
|
5000
|
10000
|
15000
|
|
Max.Motor Power (KW)
|
315
|
500
|
900
|
1800
|
