Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
lumentree
-
Model Number:
-
5.5kw-1
-
Input Voltage:
-
150V-500V
-
Output Voltage:
-
220V/230V /240V
-
Output Current:
-
80A
-
Output Frequency:
-
50/60Hz
-
Size:
-
530/380/190 mm
-
Certificate:
-
CE vde
-
Warranty:
-
5 Years
-
Weight:
-
15/19kg
-
Inverter type:
-
Hybrid Grid Inverter
-
Application:
-
Solar Power System Home
-
Display:
-
LCD+LED Display
-
Rated power:
-
3.6KW 5.5KW
-
Product name:
-
Off-grid Hybrid Inverter
-
Protection:
-
IP20
-
Color:
-
White
-
Keyword:
-
Solar Inverter 5KW
-
Battery type:
-
Lead Acid \ Lithium
-
OEM:
-
Accepted
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
99.5%
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
lumentree
-
Model Number:
-
5.5kw-1
-
Input Voltage:
-
150V-500V
-
Output Voltage:
-
220V/230V /240V
-
Output Current:
-
80A
-
Output Frequency:
-
50/60Hz
-
Size:
-
530/380/190 mm
-
Certificate:
-
CE vde
-
Warranty:
-
5 Years
-
Weight:
-
15/19kg
-
Inverter type:
-
Hybrid Grid Inverter
-
Application:
-
Solar Power System Home
-
Display:
-
LCD+LED Display
-
Rated power:
-
3.6KW 5.5KW
-
Product name:
-
Off-grid Hybrid Inverter
-
Protection:
-
IP20
-
Color:
-
White
-
Keyword:
-
Solar Inverter 5KW
-
Battery type:
-
Lead Acid \ Lithium
-
OEM:
-
Accepted
CERTIFICATION
SYSTEM DIAGRAM
PRODUCT FEATURES
UPS 4ms Switch Over Time
The fast switching time of 4ms can effectively avoid the loss caused by sudden power failure.
Meet Different Household Electricity needs
Up to 16 inverters can be parallel. (3.6kW~57.6kW) A wider range of electricity to meet your home needs.
Max Bypass Current 40A
High bypass current can power more or more powerful appliances.

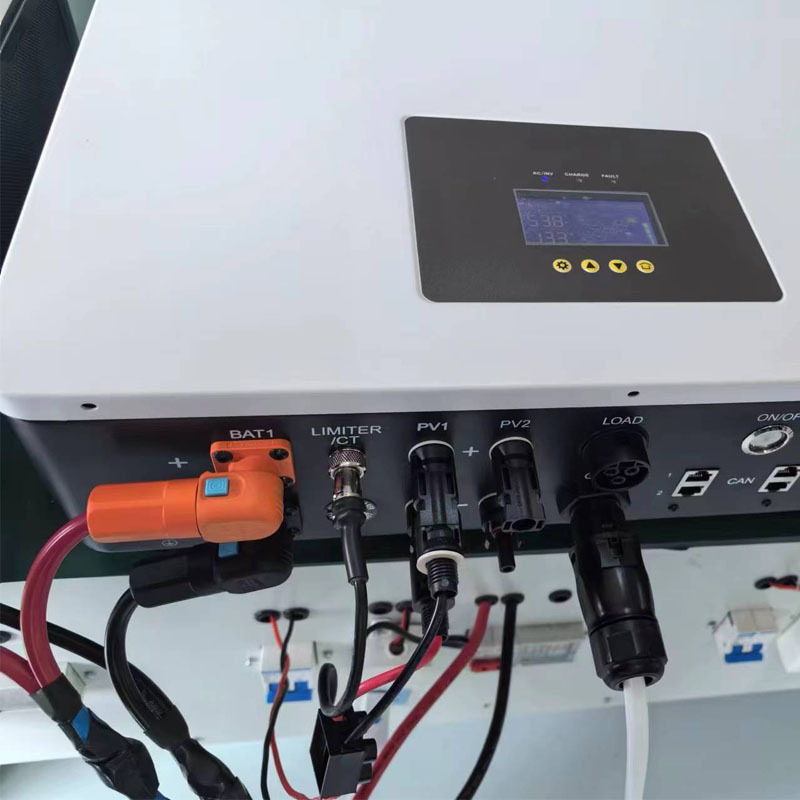

DETAILED IMAGES
|
item
|
3.6kW
|
5.5kW
|
||
|
Battery Input Parameters
|
|
|
||
|
Supported battery type
|
Li-lon or Lead-acid
|
|
||
|
Battery input voltage range(V)
|
40-60
|
|
||
|
Max.charge voltage (V)
|
≤60(Configurable)
|
|
||
|
Max.charge current (A)
|
60 (Configurable)
|
90 (Configurable)
|
||
|
Max. discharge current (A)
|
80 (Configurable)
|
120(Configurable)
|
||
|
Battery capacity (Ah)(Recommend)
|
70~1000
|
100~1500
|
||
|
Charge for Li-lon battery pack
|
Communicating with BMS of the battery pack
|
|
||
|
PV String Input Parameters
|
|
|
||
|
Max. DC input power (W)
|
4500
|
6800
|
||
|
Max. DC input voltage (V)
|
500
|
|
||
|
MPPT voltage range (V)
|
120-450
|
|
||
|
Start-up voltage (V)
|
150
|
|
||
|
Max. input current (A)
|
12
|
15
|
||
|
AC Output Parameters (Back-Up) Feed to essential load
|
|
|
||
|
Peak output apparent power(VA)
|
7200
|
11000
|
||
|
Max. output current (A)
|
16
|
24
|
||
|
Nominal output frequency/voltage
|
50/60(+/-0.2%)Hz; 220/230/240 (Configurable)single phase
|
|
||
|
Max. Bypass Current(A)
|
40
|
|
||
|
Shift Time(Bypass and inverter) (ms)
|
10
|
|
||
|
Output THD (Resistor load)
|
＜3%
|
|
||
|
AC input parameters (On-grid)
|
|
|
||
|
Nominal input/output voltage (V)
|
220/230/240(Auto adjusted to fit home gird) single phase
|
|
||
|
Nominal input/output frequency (Hz)
|
50/60(Auto adjusted to fit home gird)
|
|
||
|
Max. bypass current(A)
|
40
|
|
||
|
Shift time(Bypass and inverter) (ms)
|
10
|
|
||
|
Product Dimension
|
440*307*121mm
|
|
||
PACKAGING&DELIVERY
OPP Bag with EPE Foam, Carton
One Piece/Carton
Packing Size: 530x380x190 mm
N.W/ G.W: 9Kg / 10Kg
N.W/ G.W: 9Kg / 10Kg
FACTORY
EXHIBITION
CUSTOMER FEEDBACK
FAQ
Q1. Are you manufacturer or trading company?
A: We are manufacturer. We have 3 production lines with a production capacity of 10,000 units per month.
Q2. What is the time of warranty of solar inverter?
A: 10 years.
Q3.Can you provide sample for testing market?
A:Yes. We also accept sample orders. Sample details please contact our sales.
Q4. What is your terms of payment?
1: 100% payment through alibaba.
2. 30% T/T prepaid, 70% by the copy of Bill of lading.
3. Or according to negotiation.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test and we can provide product test report.
A: We are manufacturer. We have 3 production lines with a production capacity of 10,000 units per month.
Q2. What is the time of warranty of solar inverter?
A: 10 years.
Q3.Can you provide sample for testing market?
A:Yes. We also accept sample orders. Sample details please contact our sales.
Q4. What is your terms of payment?
1: 100% payment through alibaba.
2. 30% T/T prepaid, 70% by the copy of Bill of lading.
3. Or according to negotiation.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test and we can provide product test report.
Q6. Can you do OEM/ODM services?
Yes, we can.
We can customize the product logo, packaging materials, etc
We have 20 engineers with more than 10 years of research and development experience, can jointly develop customized products to meet your unique requirements for products. At the same time, we have noise rooms and laboratories to provide necessary conditions for research and development.
We have 20 engineers with more than 10 years of research and development experience, can jointly develop customized products to meet your unique requirements for products. At the same time, we have noise rooms and laboratories to provide necessary conditions for research and development.
Product advantage UPS 4ms Switching Time Bluetooth/Wifi Function CT(current transformer ID) 10 years product warranty Max bypass current 40A Even people without a electricity license can read the savings and set it up easily.
Company advantage 20 engineers with 10 years of R&D experience Overseas After-sales Service Team One-to-one Pre-sale Service OEM/ODM Structure Design Package Design House electricity consumption scheme design
Company advantage 20 engineers with 10 years of R&D experience Overseas After-sales Service Team One-to-one Pre-sale Service OEM/ODM Structure Design Package Design House electricity consumption scheme design
