PTO Drive Shaft 6 Spline End Round Tractor PTO Shaft for Bush Hog Finish Mower Rotary Cutter

PTO Drive Shaft 6 Spline End Round Tractor PTO Shaft for Bush Hog Finish Mower Rotary Cutter

FOB Reference Price: Get Latest Price

≥1 Pieces

US $20

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 20 KG

Marketing Type:: Hot Product 2022

Place of Origin:: China

Product Description

Tough Equipment & Tools, Pay Less

ever-power is an innovative brand that specializes in equipment and tools. Along with thousands of motivated employees, ever-power is dedicated to providing our customers with tough and cost-effective equipment & tools.

Why Choose ever-power?

Premium Tough Quality
Cost-effective Products

PTO Drive Shaft for Tractors

39"-55" 1-3/8" Ends Series 4

This splined PTO shaft is built from sturdy steel and features a 6-spline tractor end and a round implement end. It stands out by its adjustable telescoping tube, strong horsepower, and simple replacement. It can serve as farm power tools to improve your work efficiency significantly. Keep rolling through work, our drive shaft will make sure the job gets done.

Sturdy and Durable
6 Spline Round Ends
Adjustable Length
Easy Assembly Safer Use


Durable PTO Shaft This T4 tiller PTO shaft is made of high-quality 20CrMnTi carburized steel and Q345 tube steel, with a black-painted surface. It is durable enough to withstand large impacts, higher torque, and high speed.	Perfect Match With 39"-55" extendable length and featuring 1-3/8" 6-spline tractor end and round implement end, the PTO link shaft perfectly fits powered farm equipment or machinery of the same size.	Powerful Transmission Force Our PTO shaft stands out with superior power-transfer ability. At 540 rpm it can provide 35 hp, 26 kw, and 460 nm torque; 53hp, 39kw, and 360 nm at 1000 rpm.


Structure Analysis The PTO shaft is assembled in a compact structure, consisting of a telescoping tube, a universal joint, yokes, a plastic shield, and a chain for protection. It allows two speeds on both ends and transfers the power into the equipment.	Simple & Quick Installation The PTO shaft for the bush hug attaches to implement ends and tractors quickly. If you want to cut it to the proper length, please read the manual carefully and remember to deburr the edges after cutting.	Wide Application The PTO shaft, proving robust power force to the PTO powered attachment, is most commonly used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, etc.

1 x PTO Shaft
1 x Locking Pin
1 x User Manual

Specifications

Model: T4-B P*1000mm*4.05.05B*4.05.A35
Part Type: PTO Drive Shaft
Series: 4
Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic
Tractor End: 1-3/8" x 6 Spline End
Implement End: 1-3/8" x Round End
Compressed Length: 39" / 1000 mm
Extended Overall Length: 55" / 1400 mm
At 540RPM: 35hp, 26Kw, 460Nm

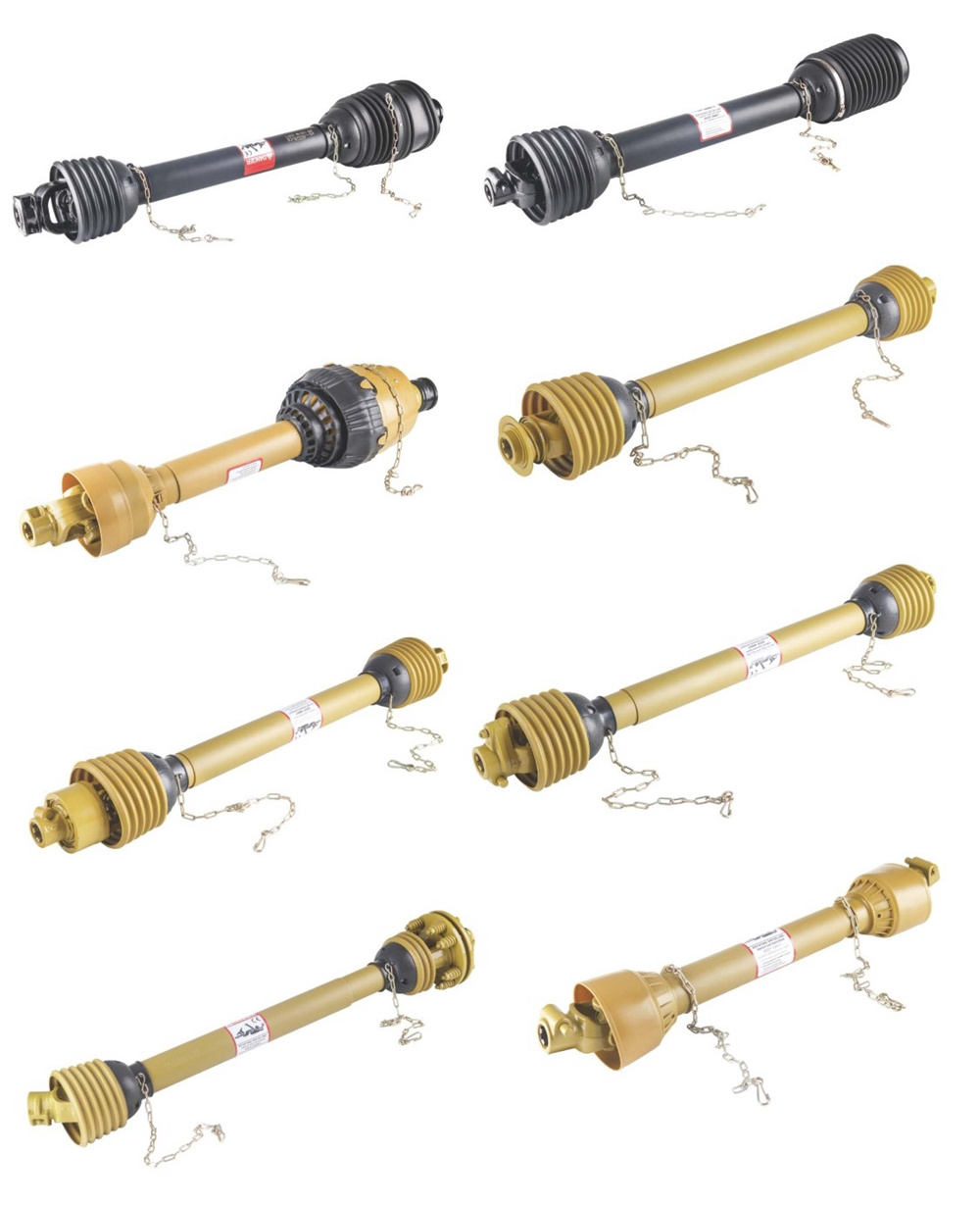

	T4 PTO Drive Shaft 51"-74"	T4 PTO Drive Shaft 31.5"-41"	T4 PTO Drive Shaft 47"-67"	T4 PTO Drive Shaft 39"-55"	T5 PTO Drive Shaft 23.6"-27.5"	T4 PTO Drive Shaft 32"-41"
Tractor End:	1-3/8" x 6 Spline	1-3/8" x 6 Spline	1-3/8" x 6 Spline	1-3/8" x 6 Spline	1-3/8" x 6 Spline	1-3/8" x 6 Spline
Implement End:	1-3/8" x Round End	1-3/8" x 6 Spline	1-3/8" x 6 Spline	1-3/8" x Round End	1-3/8" x 6 Spline	1-3/8" x Round End
Compressed Length:	51" / 1300 mm	31.5" / 800 mm	47" / 1200 mm	39" / 1000 mm	23.6" / 600 mm	32" / 800 mm
Extended Overall Length:	74" / 1900 mm	41" / 1050 mm	67" / 1700 mm	55" / 1400 mm	27.5" / 700 mm	41" / 1050 mm
At 540RPM:	35hp, 26Kw, 460Nm	35hp, 26Kw, 460Nm	35hp, 26Kw, 460Nm	35hp, 26Kw, 460Nm	57hp, 35Kw, 620Nm	35hp, 26Kw, 460Nm
At 1000RPM:	53hp, 39Kw, 360Nm	53hp, 39Kw, 360Nm	53hp, 39Kw, 360Nm	53hp, 39Kw, 360Nm	75hp, 55Kw, 500Nm	53hp, 39Kw, 360Nm
