Quick Details
-
Application:
-
Villa
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Gongli
-
Model Number:
-
201
-
Shape:
-
corrugate, trapezoid, flat
-
Color:
-
blue , green, white or customized
-
Production capacity:
-
500,000 sq.m/mon
-
Width:
-
1120mm
-
Thickness:
-
1.5mm~3.0mm
-
Length:
-
5.8m or customized
-
Practicality Width:
-
1060mm
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Return and Replacement
-
Project Solution Capability:
-
graphic design, total solution for projects
-
Application:
-
Villa
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Gongli
-
Model Number:
-
201
-
Shape:
-
corrugate, trapezoid, flat
-
Color:
-
blue , green, white or customized
-
Production capacity:
-
500,000 sq.m/mon
-
Width:
-
1120mm
-
Thickness:
-
1.5mm~3.0mm
-
Length:
-
5.8m or customized
-
Practicality Width:
-
1060mm

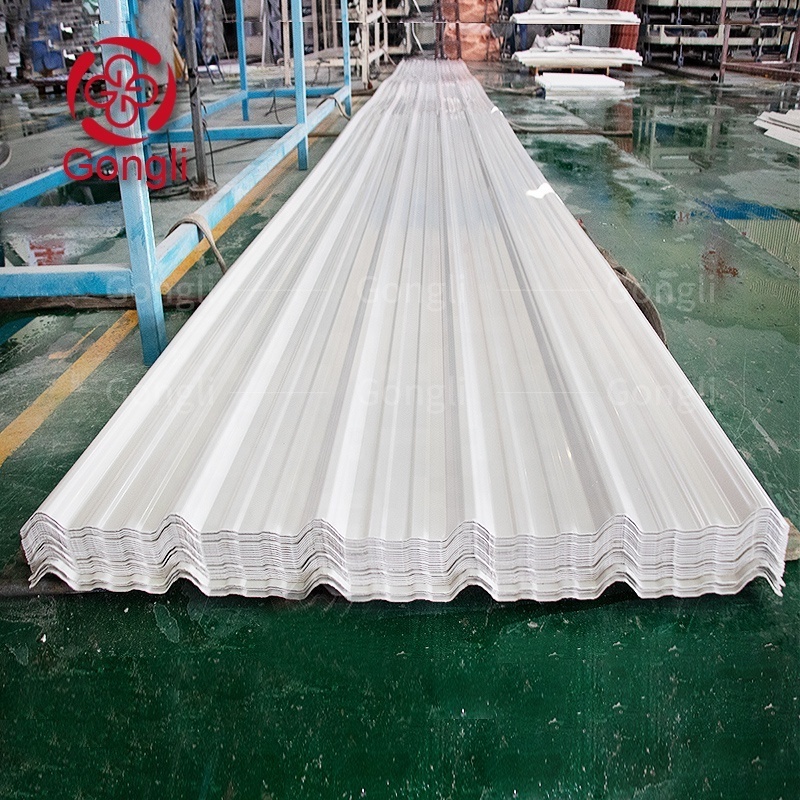

Product Description
Introduction:
PVC
adopts Europe advanced Three/Four layers co-extrusion technology,using
a kind high weather resistant engineering modifide PVC resin as main material,
mixing anti-UV agent and other expensive chemical additives.
Application:
High-grade plants,steel factories, warehouse,farm market,market access, sheds,
carports,stadiums,mobile homes,prefabricated houses,garden pavillion,farm stay,
many other types of commercial buildings.especially in corrosive chemical plants
| Type | PVC Anti-corrosive Composite Roof Tile | ||||
| Color | blue, green, white or customized | ||||
| Total width (mm) | 1120 | ||||
| Practicality width(mm) | 1060 | ||||
| Thickness(mm) | 1.5±0.1 | 1.8±0.1 | 2.0±0.1 | 2.5±0.1 | 3.0±0.1 |
| Weight(kg/m2) | 2.9±0.1 | 3.4±0.1 | 3.8±0.1 | 4.8±0.1 | 5.7±0.1 |
| Length(mm) | 5800 , 11800 or customized (must be fit for the container) | ||||
| Wave Distance(mm) | 210 | ||||
| Wave Height(mm) | 26 | ||||
| Container Loading capacity | Thickness(mm) | SQ.M./20 FCL (22 T) | SQ.M./40 FCL (26 T) | ||
| 1.5 | 7500 | 9100 | |||
| 1.8 | 6200 | 7600 | |||
| 2 | 5600 | 6800 | |||
| 2.5 | 4500 | 5400 | |||
| 3 | 3700 | 4500 | |||
Feature:
1.Lasting Beautiful Color
The surface material which ensures surface won’t fade in 10 years!
2.Good Sound Insulation
Gongli roof tile composite co- extrusion core layer shielding structure can greatly reduce sound transmission.
Gongli roof tile composite co- extrusion core layer shielding structure can greatly reduce sound transmission.
3.Heat Preservation And Heat Insulation
The heat conductivity coefficient is 0.325w/m.k, about 1/310 of clay tile,1/5.0 of cement tile,
The heat conductivity coefficient is 0.325w/m.k, about 1/310 of clay tile,1/5.0 of cement tile,
and 1/2000 of thick color steel tile.
4.Excellent Anti-corrosive And
Excellent Weather Resistance
PVC roof tile can long resist acid, alkali, salt and other corrosive chemicals.
It suitable for using in corrosive workshop, acid rain-prone area and coastal area.
Belonging flame retardant material, with fire resistance tested by national authoritative departments.
The roofing sheet selects highly weather-resistant resin, which is dense and absorbing no water,
5.Excellent Load , Impact resistance and Low temperature performance
Regarding the Carry capacity.
There is not surface damage or breakage when PVC tile in the situation of Lower Temperature and
There is not surface damage or breakage when PVC tile in the situation of Lower Temperature and
perennial snow.
6.Good Fire Resistance With Excellent Insulation And
Excellent Waterproof Performance
Belonging flame retardant material, with fire resistance tested by national authoritative departments.
The roofing sheet selects highly weather-resistant resin, which is dense and absorbing no water,
with no pore penetration problem.
