Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LOMOSEN
-
Model Number:
-

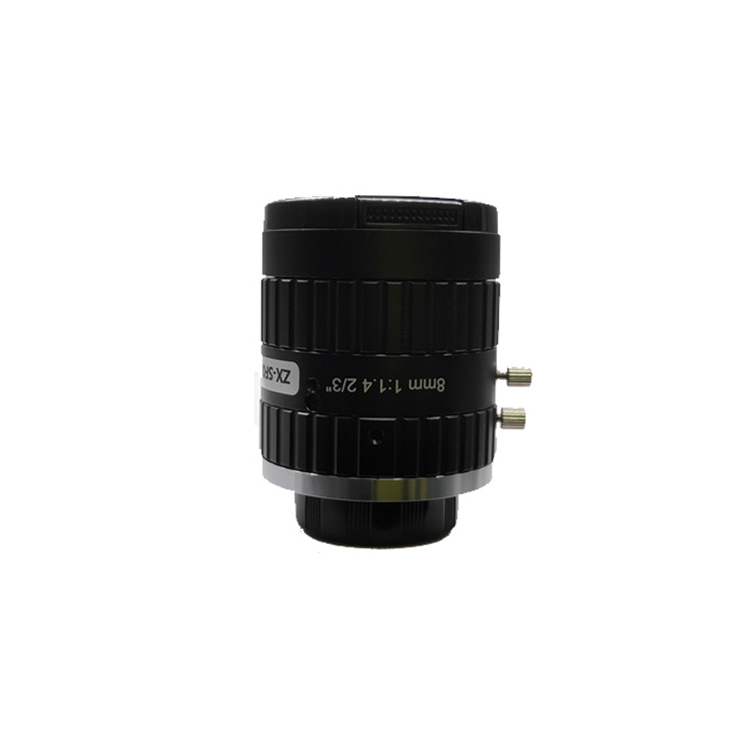

ZX-SF0814B
-
Focal length:
-
8mm
-
FNO:
-
F1.4-1.6
-
Perspective:
-
56.3°*43.7°
-
Nearest working distance:
-
100mm
-
TV distortion:
-
<1%
-
Suitable chip:
-
2/3"
-
Filter aperture:
-
M37.0*P0.5
-
MOQ:
-
1
Quick Details
-
Use:
-
Optical
-
Structure:
-
Plano-convex
-
Shape:
-
cylindrical
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LOMOSEN
-
Model Number:
-
ZX-SF0814B
-
Focal length:
-
8mm
-
FNO:
-
F1.4-1.6
-
Perspective:
-
56.3°*43.7°
-
Nearest working distance:
-
100mm
-
TV distortion:
-
<1%
-
Suitable chip:
-
2/3"
-
Filter aperture:
-
M37.0*P0.5
-
MOQ:
-
1
Product Features
Highstandard design and stable quality：
Using high standard optical performance technology to achieve high product quality
High resolution： High-resolution optical design, compatible with mainstream 5MP industrial cameras, suitable for 5-megapixel
cameras with 2/3" chip. The resolution of the full field of view can reach 140lp/mm, ensuring the clarity of the image
High uniformity： By controlling the weakening of the edge light, using a wide-angle lens, it is also possible to achieve an
overall, bright and fresh image
Low distortion： The overall distortion rate is less than 0.5%, and the minimum distortion can reach 0.03%
High resolution： High-resolution optical design, compatible with mainstream 5MP industrial cameras, suitable for 5-megapixel
cameras with 2/3" chip. The resolution of the full field of view can reach 140lp/mm, ensuring the clarity of the image
High uniformity： By controlling the weakening of the edge light, using a wide-angle lens, it is also possible to achieve an
overall, bright and fresh image
Low distortion： The overall distortion rate is less than 0.5%, and the minimum distortion can reach 0.03%
Products Description
Specifications
|
Model
|
|
ZX-SF0814B
|
|
||
|
Image Size
|
|
2/3"
|
1/2"
|
||
|
Angle FOV
|
H
|
56.3°
|
42.5°
|
||
|
|
V
|
43.7°
|
32.4°
|
||
|
|
D
|
67.1°
|
51.9°
|
||
|
Distortion（TV）
|
|
<1%
|
<0.8%
|
||
|
F/NO
|
|
F=1：1.4-16
|
|
||
|
Focus Distance（min）
|
|
0.1m
|
|
||
|
Flange Back
|
|
17.526mm in air
|
|
||
|
Back Focus
|
|
10.74mm in air
|
|
||
|
Fiter Screw Size
|
|
M37*P0.5
|
|
||
|
Focal Length
|
|
f=8mm
|
|
||
|
Mount
|
|
C-Mount
|
|
||
|
Temperature Range
|
|
-10°C~50°C
|
|
||
|
Visual Field Data
|
|
|
|
|||
|
Working Distance
|
Optical Magnification
|
2/3" Field of View（mm）
|
|
|||
|
mm
|
-
|
H
|
V
|
|||
|
900
|
0.009x
|
976.8
|
731.5
|
|||
|
850
|
0.010x
|
923.3
|
691.4
|
|||
|
800
|
0.010x
|
869.8
|
651.3
|
|||
|
750
|
0.011x
|
816.3
|
611.2
|
|||
|
700
|
0.012x
|
762.8
|
571.1
|
|||
|
650
|
0.013x
|
709.3
|
531
|
|||
|
600
|
0.014x
|
655.8
|
490.9
|
|||
|
550
|
0.015x
|
602.3
|
450.8
|
|||
|
500
|
0.016x
|
548.8
|
410.7
|
|||
|
450
|
0.018x
|
495.3
|
370.6
|
|||
|
400
|
0.020x
|
441.8
|
330.5
|
|||
|
350
|
0.023x
|
388.3
|
290.4
|
|||
|
300
|
0.027x
|
334.8
|
250.3
|
|||
|
250
|
0.032x
|
281.2
|
210.2
|
|||
|
200
|
0.039x
|
227.7
|
170
|
|||
|
150
|
0.052x
|
174.2
|
129.9
|
|||
|
100
|
0.075x
|
120.7
|
89.8
|
|||
Product packaging
