Quick Details
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Low Bed Semi-Trailer
-
Capacity:
-
30 ton - 100 ton
-
Main beam:
-
Q690 steel
-
Side beam:
-
16 mm- 25 mm High-strength plate bending
-
Ladder:
-
Manual type or Hydraulic type
-
Axle:
-
13/16T, FUWA / BPW / CTC brand etc
-
Rim:
-
9.0*22.5 / 8.0-20 / 8.5-20
-
OEM/ODM:
-
Available
-
Color:
-
Custom's Requirement
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
8000kg-128000kg
-
Size:
-
9500-16500*2500-3000*3200mm(customized), Accroding Customer's Requirement
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Low Bed Semi-Trailer
-
Capacity:
-
30 ton - 100 ton
-
Main beam:
-
Q690 steel
-
Side beam:
-
16 mm- 25 mm High-strength plate bending
-
Ladder:
-
Manual type or Hydraulic type
-
Axle:
-
13/16T, FUWA / BPW / CTC brand etc
-
Rim:
-
9.0*22.5 / 8.0-20 / 8.5-20
-
OEM/ODM:
-
Available
-
Color:
-
Custom's Requirement
Products Description
The low bed semi-trailer is a commonly used type of truck, also known as a low bed trailer or flatbed truck. Its characteristic feature is the low body, with no side panels or box structure between the front and rear of the vehicle, making it convenient for loading and unloading cargo. The overall structure is made of reinforced steel frame, capable of carrying large, extra high, extra wide, and extra long goods. It is particularly suitable for transporting various construction materials, large equipment, machinery, and engineering vehicles. During transportation, the low center of gravity of the cargo is advantageous for improving the stability and safety of the vehicle.
|

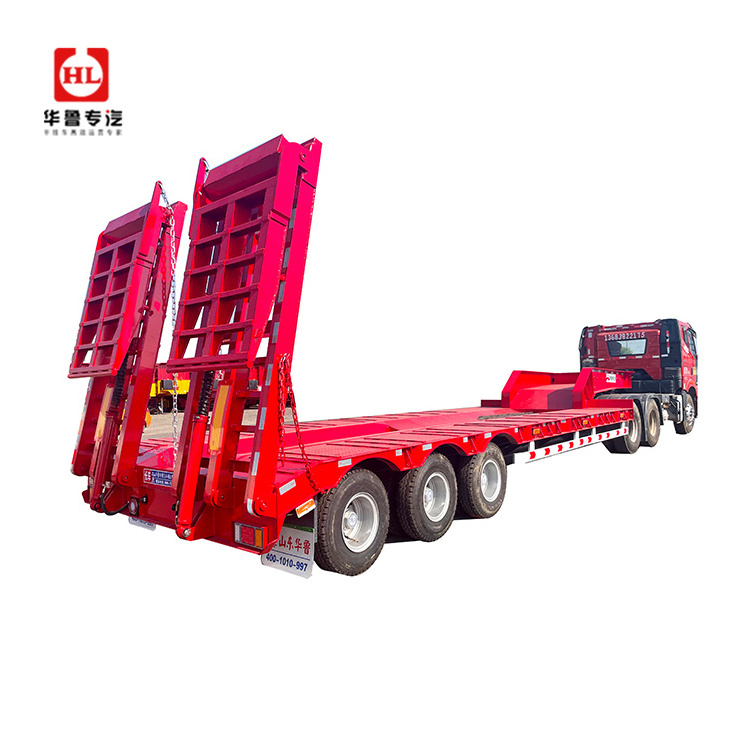

Low Bed Semi-Trailer
|
|
|
|
Dimension
|
9500-16500*2500-3000*3200 (can be customized)
|
|
|
Tare weight
|
8000kg-12800kg
|
|
|
Capacity
|
30 ton - 100 ton
|
|
|
Main beam
|
Q690 steel
|
|
|
Side beam
|
16 mm- 25 mm High-strength plate bending
|
|
|
Platform
|
3 mm - 5 mm thickness chequered plate or can be optional
|
|
|
Ladder
|
Manual type or Hydraulic type
|
|
|
Axle
|
13/16T, FUWA / BPW / CTC brand etc
|
|
|
King pin
|
Jost 2.0 or 3.5 inch bolted type
|
|
|
Suspension
|
Mechanical suspension / Germany type or America type / Air suspension
|
|
|
Leaf spring
|
90 mm(Width) * 13 mm(Thickness) * 10 layer or 100 mm * 12 mm * 12 layer
|
|
|
Braking system
|
WABCO 6 relay valve, spring brake chamber, 2 pieces of 45L air tank
|
|
|
Rim
|
9.0*22.5 / 8.0-20 / 8.5-20
|
|
|
Tire
|
235/75R17.5 / 245/70R17.5 / 245/70R19.5 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 brand can be optional
|
|
|
ABS
|
Optional
|
|
|
Spare tire carrier
|
2 pieces
|
|
|
Painting
|
1 coat of anticorrosive primer, 2 coats of finla painting, Color advised by customer.
|
|
|
Pictures and configuration information are for reference only.The final product can be made according to specific requirements.
|
|
|
|
Above Information are HUALU Standard Spec.If customer want to change Spec.Please Let us know.
Want to know more details,please contact us directly. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Presentation
It can adapt to various goods and transportation needs, whether it is transporting large equipment or small parts, it can be easily handled. The size and design of low flatbed semi-trailers can be adjusted according to different needs to meet various logistics needs.
Due to its flexible and multifunctional design, it can complete transportation tasks faster, saving time and costs. Meanwhile, the transportation efficiency of low flatbed semi-trailers is also higher, allowing for faster delivery of goods to the destination.
Fully reduce weight while meeting the load conditions; On snowy or muddy roads, the traction control system can smoothly accelerate and prevent the vehicle from slipping due to the drive wheels
Corrosion-resistant and strong print adhesiveness up to 9 years. The whole body painting process makes sure no spots are missed and gives the best anti-rust performance
