Quick Details
-
Marketing Type:
-
Industrial Grade Slot Boring Machine
-
Weight (KG):
-
240 KG
-
Power (kW):
-
1.5/1.9
-
Item no.:
-
575002
-
Model:
-
MGX20R
-
Table size:
-
595x316mm
-
Cross travel:
-
215mm
-
Longitudinal travel:
-
260mm
-
Vertical stroke:
-
145mm
-
Drill chuck size:
-
20mm
-
Speed:
-
1400/2800rpm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TTMC
-
Machine Type:
-
Slot Mortising Machine
-
Marketing Type:
-
Industrial Grade Slot Boring Machine
-
Weight (KG):
-
240 KG
-
Power (kW):
-
1.5/1.9
-
Item no.:
-
575002
-
Model:
-
MGX20R
-
Table size:
-
595x316mm
-
Cross travel:
-
215mm
-
Longitudinal travel:
-
260mm
-
Vertical stroke:
-
145mm
-
Drill chuck size:
-
20mm
-
Speed:
-
1400/2800rpm
Product Overview

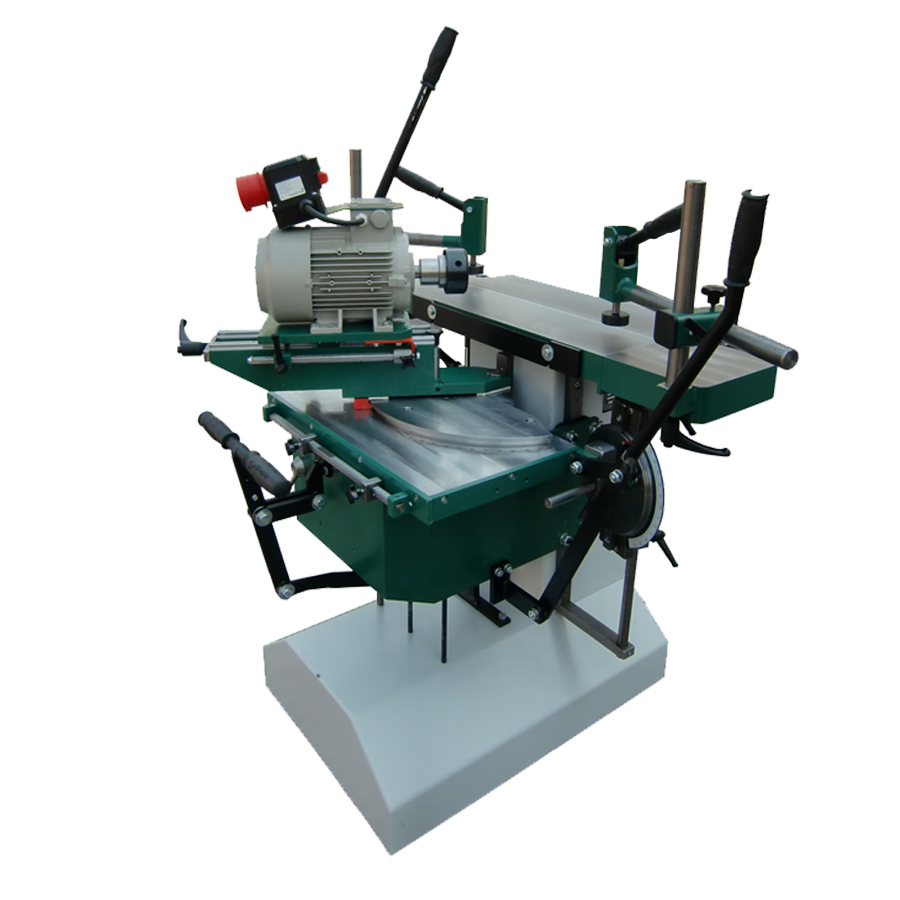

TTMC Wood Slot Mortiser Machine MGX20R
A drill head tilting 60° to the right and left, making it the perfect solution for assemblies around staircases, window and frame works
FEATURES AT A GLANCE
Maintenance-free linear guiding allows for feed of drill depth
Quick lift system allows for efficient, economical processing without time-consuming winding of crank
Smooth, stepless height setting of drill head features fine adjustment and gas pressure cylinder for counter balance
Cross travel and height adjustment features scales and adjustable fences
Robust steel construction eliminates vibrations
Drill depth adjustable via scale and fence
Height adjustment of drill head can be altered throughout vertical slotting
Large grey cast iron table with polished surface
PRODUCT SPECIFICATIONS
Wood Slot Mortising Machine
|
Item No.
|
575001
|
575002
|
|
Model
|
MGX16
|
MGX20R
|
|
Table size
|
545x265 mm
|
595x316 mm
|
|
Cross travel
|
170 mm
|
215 mm
|
|
Longitudinal travel
|
220 mm
|
260 mm
|
|
Vertical stroke
|
150 mm
|
145 mm
|
|
Drill chuck size
|
16 mm
|
20 mm
|
|
Speed
|
2800 rpm
|
1400/2800 rpm
|
|
Motor power
|
2.2 kW
|
1.5/1.9 kW
|
|
Packing size
|
86x66x133 cm
|
106x88x133 cm
|
|
N.W./G.W.
|
172/215 kg
|
240/285
|
