Quick Details
-
Model Number:
-
FN12-12
-
Max. Current:
-
630A
-
Motor operating power valtage:
-
AC220,DC48
-
Rated cable charging current:
-
10
-
Rated power load current breaking times:
-
10times
-
Earth switch heat-stability current:
-
20(2S)
Quick Details
-
Max. Voltage:
-
12KV
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GDCN
-
Model Number:
-
FN12-12
-
Max. Current:
-
630A
-
Motor operating power valtage:
-
AC220,DC48
-
Rated cable charging current:
-
10
-
Rated power load current breaking times:
-
10times
-
Earth switch heat-stability current:
-
20(2S)

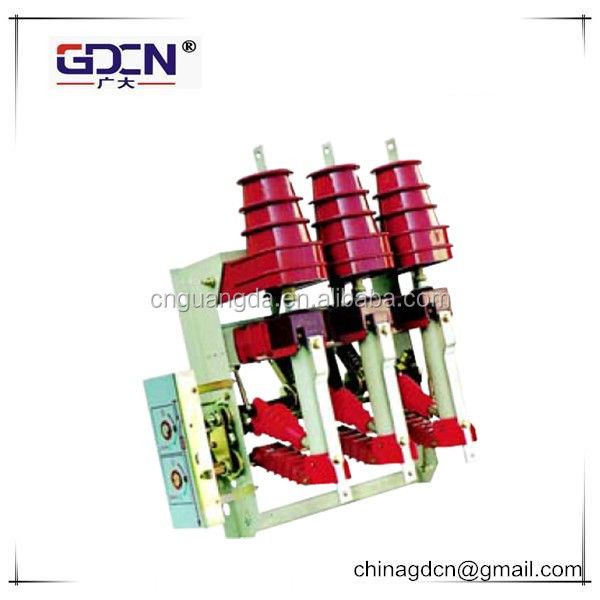

Air Insulated Load Break Switch Air Break Switch FN12-12
1.Introduction
It is a three phase H.V. switch equipment of 12KV, 50Hz for breaking or closing load current., no-load transformer cable charging current and closing short-circuit current. The load switch with earth switch can bear short-circuit current.
It is made up of FN12-12D load switch and S()LAJ-12(XRNT()-10) H.V. current-limiting fuse box. It can break any current, load switch breaking working current and fuse box breaking short-circuit current, jointly breaking any current between short-circuit current. Meantime, fuse box make the switch off of with the striker.
Service Condition
-
1.
The ambient air temperature: MAX.: +40
°
C, Min.: -10
°
C.
2. The altitude does not exceed 1000m.
3. The relatire humidity of air daily average ≤ 90%, monthly average ≤ 95%.
4. The ambient air should not be obviously polluted by corrosivity or the flammability gas and steam. etc.
5. The working situation without frequent violent.
Technical Parmeter
|
Number |
Name |
Unit |
FN12-12D/630-20 |
FN12-12D.R/100-31.5 |
|
1 |
Rated voltage |
kV |
12 |
|
|
2 |
Rated frequency |
Hz |
50 |
|
|
3 |
Reated current |
A |
630 |
1000 |
|
4 |
Lighting impulse resisting voltage |
kV |
75/85 |
|
|
5 |
1min power frequency with stand voltage |
kV |
42/48 |
|
|
6 |
Rated heat - stability current |
kA |
20(4S) |
|
|
7 |
Rated machine-stability current |
kA |
50 |
|
|
8 |
Rated closing current (peak) |
kA |
50 |
|
|
9 |
Rated short-circuit breaking current |
kA |
|
31.5 |
|
10 |
Rated transfer current |
kA |
|
1.5 |
|
11 |
Max. breaking current |
kA |
1.8 |
|
|
12 |
Breaking no-load transformer capacity |
Kva |
1250 |
|
|
13 |
Rated cable charging current |
A |
10 |
|
|
14 |
Rated power load current breaking times |
time |
>100 |
|
|
15 |
Switch-off time of rated power load current switch on-and-off |
S |
|
>0.06 |
|
16 |
Earth switch heat-stability current |
kA |
20(2S) |
20(2S) |
|
17 |
Earth switch heat-stability curreak (peak) |
kA |
50 |
50 |
|
18 |
Motor operating power valtage |
V |
AC220,DC48 |
|
