Working medium：water、gas、air、light oil Medium temperature：-5 ～ 80℃ Working pressure：0 ～ 10bar
Working type：direct acting（NC） Valve body material：brass Sealing material：NBR,VITON Interface：G thread NPT thread Voltage：12VDC/24VDC/110VAC/220VAC
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
2/2 Way solenoid valve
-
Model Number:
-
2W025-08
-
Working medium:
-
Air Water Oil Gas
-
Application:
-
Automatic Control
-
Body Material:
-
Brass/Stainless Steel SS316
-
Fluid:
-
Clean Compressed Air
-
Port size:
-
1/4"
-
Color:
-
Customer's Requirement
-
Voltage:
-
DC12V.DC24V.AC12V.AC24V.AC110V.AC220V.AC380V
-
Packing:
-
Boxes Cartons Pallets
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ALITAIR
-
Material:
-
Carton
-
Product name:
-
2/2 Way solenoid valve
-
Model Number:
-
2W025-08
-
Working medium:
-
Air Water Oil Gas
-
Application:
-
Automatic Control
-
Body Material:
-
Brass/Stainless Steel SS316
-
Fluid:
-
Clean Compressed Air
-
Port size:
-
1/4"
-
Color:
-
Customer's Requirement
-
Voltage:
-
DC12V.DC24V.AC12V.AC24V.AC110V.AC220V.AC380V
-
Packing:
-
Boxes Cartons Pallets
Product Description
solenoid valve 2w025 08 / 2w025-08 are 2/2way, direct action type, are most popular valves for many conditions, especially in the water treatment system, such as water heater. It can start working at zero differential pressure. Normal working pressure is 0~7bar, high pressure 20bar are optional.
|
Model
|
2W025-08
|
|
Orifice Size(mm)
|
2.5mm
|
|
Port Size
|
1/4" NPT / 1/4"G
|
|
Acting Type
|
Direct Acting
|
|
Type
|
Normal Closed
|
|
Working Medium
|
Air Water Oil Gas
|
|
Operating Pressure
|
0~0.7MPa
|
|
Max. Pressure Resistance
|
1.0MPA
|
|
Material of Oil Seal
|
NBR / VITON
|
|
Operating Temperature
|
NBR for -5 ~80°C & VITON for -5~150°C
|
|
Body Material
|
Brass
|
Direction for use
-
Description of application effect
Start working at differential pressure, the UW series valve has a completely range of solenoid valves from 1/8" to 2". UW series
valve is among the oldest history valves, we have stainless steel valve and brass valve for your reference, both of SS valve and
brass valve can be normal close valve and normal open valve. This series solenoid valves are most popular valves used for manyconditions especially in the water treatment system.
valve is among the oldest history valves, we have stainless steel valve and brass valve for your reference, both of SS valve and
brass valve can be normal close valve and normal open valve. This series solenoid valves are most popular valves used for manyconditions especially in the water treatment system.
Detailed Images

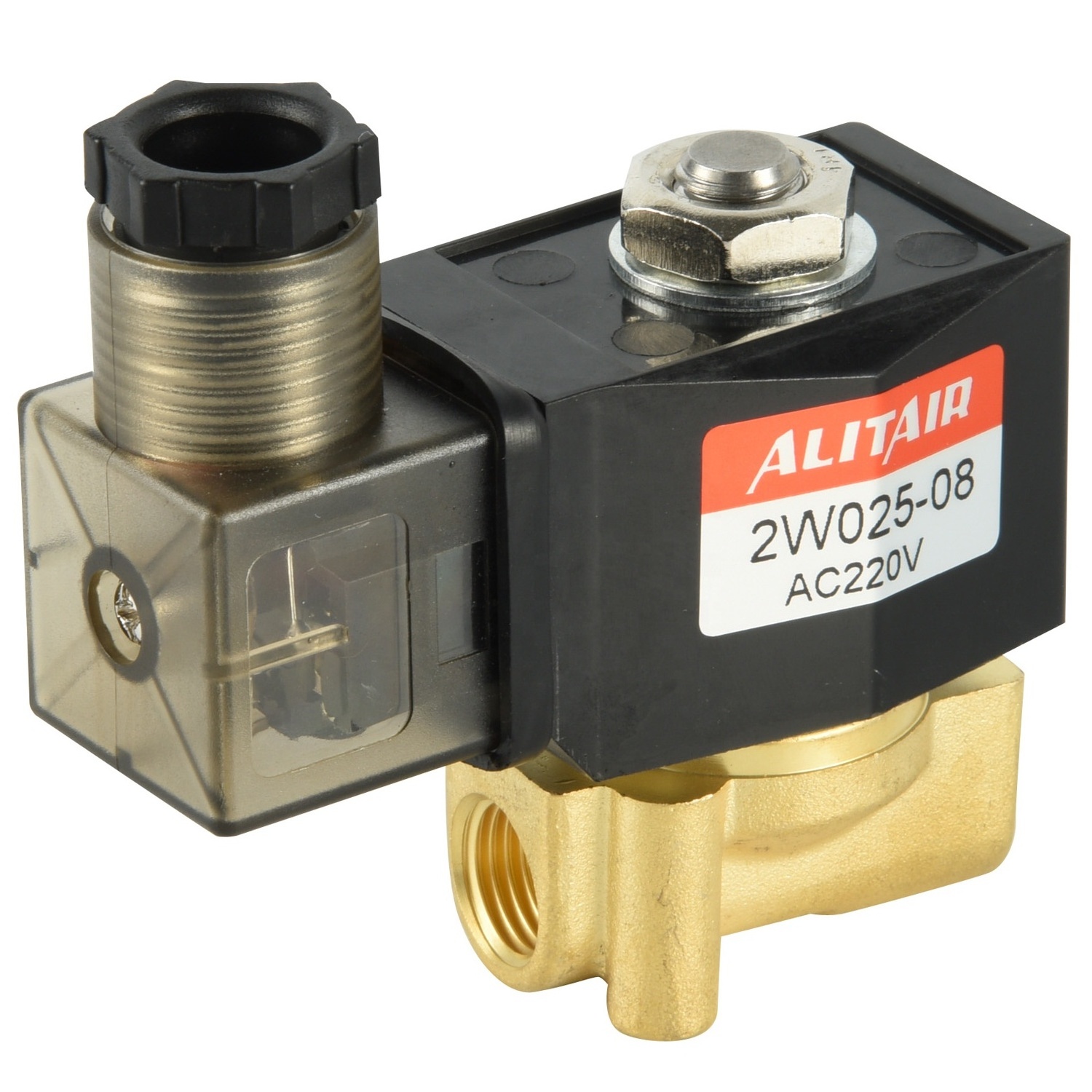

2 Way Air/ Water Brass Direct Acting Normally Closed 12V 110V 24V 220V Micro Mini Solenoid Valve 2W025-08
Packing&Shipping
Packing into box
After Sales Service
1 Year Warranty
Quality is important,we always attach importance to quality control from the beginning to the end of the prodution.
Each product will be fully assembled and carefully tested before packing and shipping.
Each product will be fully assembled and carefully tested before packing and shipping.
