1.Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
2.All the spare parts of the machine were covered by the some soft materials mainly using pearl wool.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack, convenient to handing and transport.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
2545*3010*4689
-
Motor Power (kW):
-
40
-
Model Number:
-
BLM/BLC/BLF
-
Weight (T):
-
50
-
Marketing Type:
-
Hot Product 2023
-
Type:
-
H-frame
-
Certification:
-
CE ISO
-
Product name:
-
200ton 250ton H frame double crank mechanical power press machine
-
Name:
-
two point punching machine
-
Application:
-
Metal Stamping
-
Function:
-
Punch Forming
-
Servo motor:
-
YASKAWA
-
Usage:
-
Pressing Metal Products
-
After-sales Service Provided:
-
Overseas Service Provided
-
Control:
-
PLC+Touch Screen
Quick Details
-
Slide Stroke (mm):
-
300
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BESCO
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
2545*3010*4689
-
Motor Power (kW):
-
40
-
Model Number:
-
BLM/BLC/BLF
-
Weight (T):
-
50
-
Marketing Type:
-
Hot Product 2023
-
Type:
-
H-frame
-
Certification:
-
CE ISO
-
Product name:
-
200ton 250ton H frame double crank mechanical power press machine
-
Name:
-
two point punching machine
-
Application:
-
Metal Stamping
-
Function:
-
Punch Forming
-
Servo motor:
-
YASKAWA
-
Usage:
-
Pressing Metal Products
-
After-sales Service Provided:
-
Overseas Service Provided
-
Control:
-
PLC+Touch Screen
Product Description

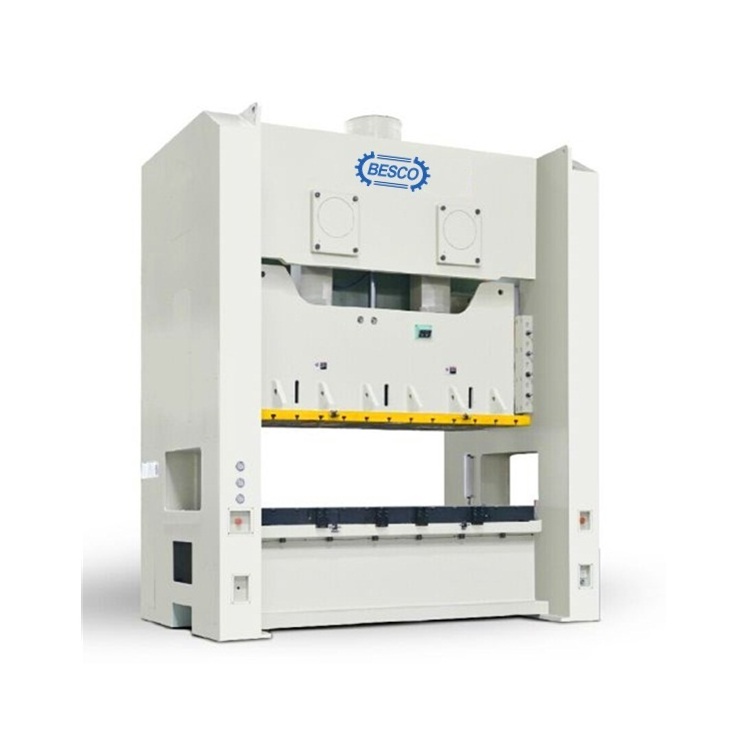

H Frame High Precision Two Point Punching Machine
2.In order to gurantee the machine running stably and smoothly, we adopting the design of symmetrical two side boards with balancer;
3.The precision of mold adjusting up to 0.1mm, safety, reliable and convenient;
4.Crank, gear, connectbar are oxidized hardening and milled, having super comprehensive mechanical performancce and durable function.
Main Parameter
|
NAME
|
UNIT
|
BLM-110
|
BLM-160
|
BLM-200
|
BLM-300
|
BLM-400
|
BLM-500
|
BLM-630
|
|||||||
|
Capacity
|
Ton
|
110
|
160
|
200
|
300
|
400
|
500
|
630
|
|||||||
|
Stroke
|
mm
|
180
|
180
|
250
|
280
|
300
|
300
|
300
|
|||||||
|
Stroke Frequency
|
s.p.m
|
50
|
40
|
35
|
30
|
30
|
20
|
15
|
|||||||
|
Die Height
|
mm
|
400
|
450
|
500
|
550
|
550
|
600
|
600
|
|||||||
|
Slide Adjustment
|
mm
|
100
|
100
|
120
|
120
|
120
|
150
|
200
|
|||||||
|
Slide area
|
mm
|
1400*550
|
1600*650
|
1850*750
|
2400*900
|
2620*1100
|
3200*1200
|
3740*1300
|
|||||||
|
Bolster area
|
mm
|
1550*750
|
1800*760
|
2200*940
|
2500*1000
|
2700*1100
|
3400*1200
|
4000*1400
|
|||||||
|
Slide Opening
|
mm
|
600*350
|
700*450
|
900*600
|
900*600
|
900*600
|
1000*700
|
1000*700
|
|||||||
|
Main Motor
|
Kw·p
|
11*4
|
15*4
|
18.5*4
|
30*4
|
37*4
|
55*4
|
75*4
|
|||||||
|
Precision
|
GB/JIS I Grade
|
|
|
|
|
|
|
|
|||||||
|
size(L*W*H)
|
mm
|
2188*2280*3180
|
2309*2590*3682
|
2523*3000*3915
|
2899*3600*4729
|
3225*3800*5150
|
3655*4500*5150
|
3955*5100*5971
|
|||||||
More details
Sample
Why Choose Us
Packing&Delivery
Packaging waste-reduction and resource-saving Transportation efficiency
FAQ
Guaranty Period
One year free , a lifetime warranty after-sale support.
Guaranty Covers
Main parts of the machine , wearing parts not included.
Parts Delivery
Within 5 days by DHL/ Fexed.
Technology Support
Techanicans are available for oversea service.
Installation & Commissioning
Seller can arrange the techanicals to do the installation for buyer if it is necessary.
