- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SNSC
-
Fork Length:
-
2440mm
-
Fork Width:
-
300mm
-
Weight (KG):
-
35000 kg
-
Load Center:
-
1250mm
-
Type:
-
Powered Pallet Truck
-
Loading Capacity:
-
25000kg
-
Turning radius:
-
6700mm
-
forklift tire:
-
Pneumatic tires
-
color:
-
green/orange/yellow
-
forklift options:
-
LED light, fan, cabin,
-
HS code:
-
84270290
-
Max. travelling speed:
-
25/29
-
Marketing Type:
-
New Product 2020
Quick Details
-
Min. Lifting Height:
-
145MM
-
Warranty:
-
1 Year
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
SNSC
-
Fork Length:
-
2440mm
-
Fork Width:
-
300mm
-
Weight (KG):
-
35000 kg
-
Load Center:
-
1250mm
-
Type:
-
Powered Pallet Truck
-
Loading Capacity:
-
25000kg
-
Turning radius:
-
6700mm
-
forklift tire:
-
Pneumatic tires
-
color:
-
green/orange/yellow
-
forklift options:
-
LED light, fan, cabin,
-
HS code:
-
84270290
-
Max. travelling speed:
-
25/29
-
Marketing Type:
-
New Product 2020
Product Description

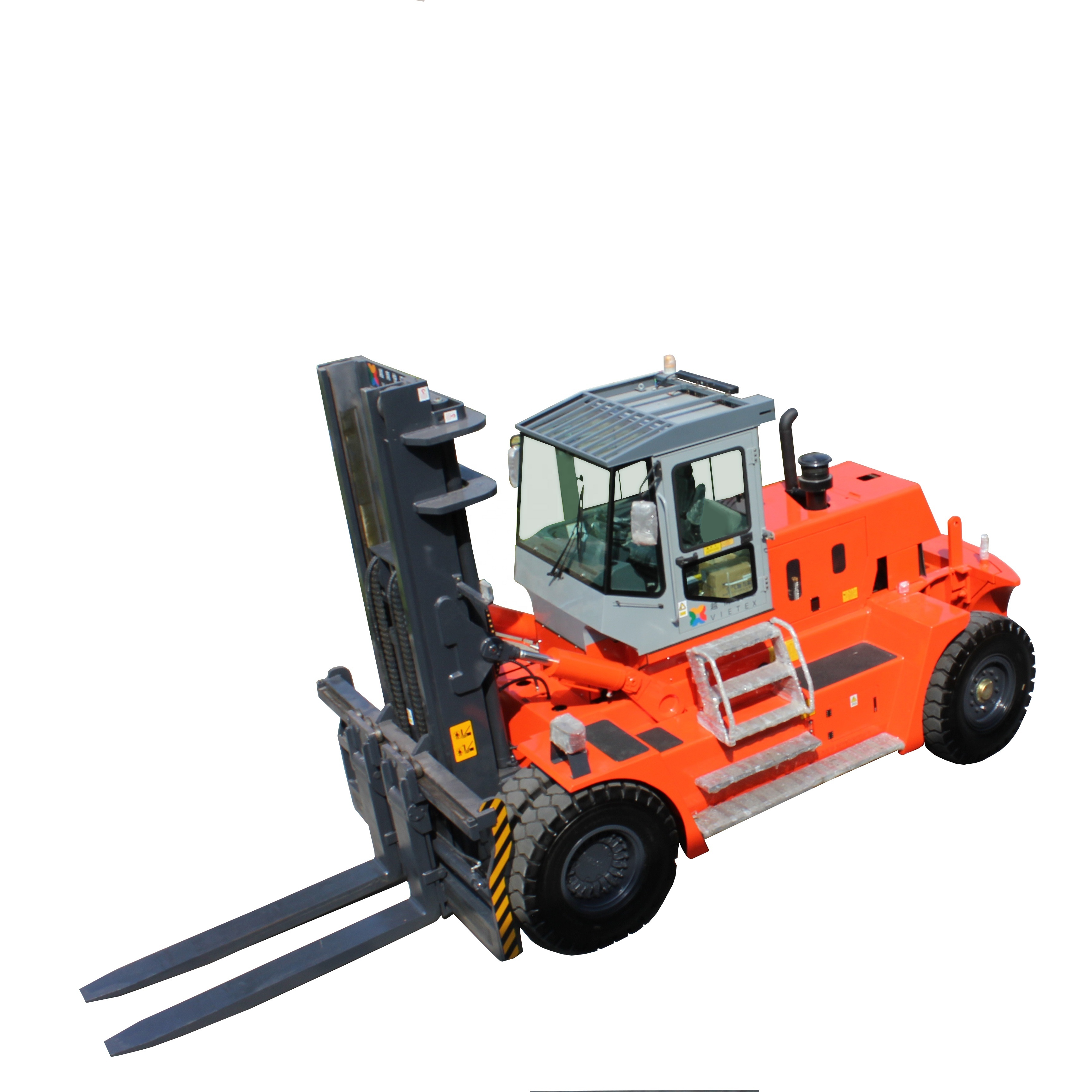

Main configuration of our FD250 Diesel Forklift to Senegal
1.Engine:DFCUMMINS engine
2.Power shift transmission
3.2-stage mast Max. lifting height 5610mm
4.Load center 1250mm
5.Pneumatic tires,front double tyres
6.Fork Length 2440mmwith Fork Positioner &side shifter
7.Cab with A/C,adjustable steering
wheels,seat with safety belt, buzzer, horn
8.Overall dimension (L*W*H): 9190MM(with forks)*3050mm*3860mm
SIX Pneumatic tyres
Specification
|
Specifications
|
|
|
Unit
|
FD250
|
||
|
Features
|
Power type
|
|
-
|
Diesel
|
||
|
|
Rated load
|
|
kg
|
25000
|
||
|
|
Load center
|
|
mm
|
1250
|
||
|
|
Lifting Height
|
|
mm
|
3500
|
||
|
|
Max. lifting height
|
|
mm
|
5610
|
||
|
|
Fork size
|
L*W*T
|
mm
|
2440*300*110
|
||
|
|
Mast Tilt Angle
|
Front/Rear
|
。
|
6/12
|
||
|
|
Min. Turning Radius
|
|
mm
|
6700
|
||
|
|
Min. Ground Clearance
|
Mast
|
mm
|
300
|
||
|
|
Overhead Guard Height
|
|
mm
|
3510
|
||
|
|
Fork front vertical surface to rear end of the vehicle
|
|
mm
|
6745
|
||
|
Performance
|
Max. Travelling Speed
|
loaded/empty
|
km/h
|
25/29
|
||
|
|
Max. Lifting Speed
|
loaded/empty
|
mm/s
|
260/270
|
||
|
|
Max. traction force
|
loaded
|
N
|
17000
|
||
|
|
Max. Climbing Ability
|
load/without load
|
%
|
20/21
|
||
|
Dimension
|
Overall Lenght
|
with fork
|
mm
|
9190
|
||
|
|
Overall Width
|
|
mm
|
3050
|
||
|
|
Mast Lowered Height
|
|
mm
|
3860
|
||
|
|
Mast Extended Height
|
|
mm
|
5610
|
||
|
Chassis
|
Tyre
|
Front
|
-
|
14.00-24-28PR
|
||
|
|
|
Rear
|
-
|
14.00-24-28PR
|
||
|
|
Wheel Base
|
|
mm
|
4400
|
||
|
|
Tread width
|
Front/Rear
|
mm
|
2200/2390
|
||
|
|
Weight(without load)
|
|
kg
|
35000
|
||
|
Powertrain
|
Engine
|
Model
|
-
|
DF Cummins
|
||
|
|
|
No. of Cylinder
|
-
|
6
|
||
|
|
Attachment using oil amout
|
l/min
|
L
|
80
|
||
|
|
Transmission gear(front/rear)
|
|
-
|
2/1
|
||
|
|
Attachments working Pressure
|
|
bar
|
180
|
||
Detailed Images
high power diesel engine
Auto hydraulic transmission with pilot control
side shifter& fork positioner function
Double front tires
Cabin with air conditioner heater
Double air filter
Package and Delivery
25ton Container Handling Equipment Forklift Truck
can be shipped by flat rack or ro-ro. Or dismantle the mast then shipped by 40HQ
Successful Cases
SNSC Forklift beyond your needs!
SNSC as a professional manufacturer of industrial vehicles, offer your various solutions for moving and stocking materials, such as diesel forklifts, container handler, container reach trucks.
Below pictures show SNSC 12Ton 13ton 15ton 16ton 25ton diesel engine forklift with side shifter forkpositioner working in customer's plant.
Our Factory
We are top 3 in Chinese forklift manufactures and top 20 in the world,over 300 employees,10,000 units forklift truck production capacity per year,5000 sets export volume.
our R&D research is in Britain, and we invested 600 million in forklift factory, use advanced equipments, eg: welding robot and others to realize over 95% automatic production line.
our R&D research is in Britain, and we invested 600 million in forklift factory, use advanced equipments, eg: welding robot and others to realize over 95% automatic production line.
Material Preparation Workshop
Structure Workshop
Painting Workshop
Assembly Workshop
Certifications
SNSC 25TON Diesel Engine Forklift
Contact Us
Welcome to contact Mrs. Winni for more details of our 25ton heavy duty diesel forklift. Very glad to serve you at any time.
