Quick Details
-
Max. Spindle Speed (r.p.m):
-
2000 r.p.m
-
Width of bed (mm):
-
30 mm
-
Spindle Motor Power(kW):
-
5.5
-
Travel (X Axis)(mm):
-
205 mm
-
Travel (Z Axis)(mm):
-
1000 mm
-
Place of Origin:
-
Jiangsu, China
-
Dimension(L*W*H):
-
218*118*180
-
Brand Name:
-
Hoston
-
Model Number:
-
CK6146
-
Voltage:
-
220V/380V/415V/480V
-
Weight (KG):
-
1800
-
CNC or Not:
-
CNC
-
Automatic Grade:
-
Automatic
-
Machine Type:
-
Lathe Machine CNC
-
Swing over cross slide:
-
252mm
-
Distance between centers:
-
1000mm
-
Width of bed:
-
300mm
-
X-axis travel:
-
205mm
-
Z-axis travel:
-
1000mm
-
Diameter of tailstock sleeve:
-
60mm
-
Travel of tailstock sleeve:
-
160mm
-
Certification:
-
CE, ISO9001, BV
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
1000
-
Year:
-
2021
-
Max. Spindle Speed (r.p.m):
-
2000 r.p.m
-
Width of bed (mm):
-
30 mm
-
Spindle Motor Power(kW):
-
5.5
-
Travel (X Axis)(mm):
-
205 mm
-
Travel (Z Axis)(mm):
-
1000 mm
-
Place of Origin:
-
Jiangsu, China
-
Dimension(L*W*H):
-
218*118*180
-
Brand Name:
-
Hoston
-
Model Number:
-
CK6146
-
Voltage:
-
220V/380V/415V/480V
-
Weight (KG):
-
1800
-
CNC or Not:
-
CNC
-
Automatic Grade:
-
Automatic
-
Machine Type:
-
Lathe Machine CNC
-
Swing over cross slide:
-
252mm
-
Distance between centers:
-
1000mm
-
Width of bed:
-
300mm
-
X-axis travel:
-
205mm
-
Z-axis travel:
-
1000mm
-
Diameter of tailstock sleeve:
-
60mm
-
Travel of tailstock sleeve:
-
160mm
-
Certification:
-
CE, ISO9001, BV
Product Description for Lathe Embossed Metal For Sale on Craigslist Made in Germany
Machine Features
· Range of gear wheel Shift, variable frequency control and spindle speed change is wide
· Whole Stand, high rigidity , stable precision
Standard Configuration
·GSK 980 TA1
·φ200 Three jaw chuck
·4 Position electric turret
·Auto lubrication system
·Simple cover
Optional Configuration
·KND90Ti SIEMENS 802C , HNC-21TD , FANUC Oi-mate-TD
·Power chuck
·6 position electric turret
·Full cover
Standard accessories
·Oil gun
·Reductions sleeve & center
·Wrenches
Technical Parameter for Lathe Embossed Metal For Sale on Craigslist Made in Germany
|
ITEM |
CONTENT |
UNIT |
SPECIFICATION |
|
CK6146X1000 |
|||
|
Ability |
Swing over bed |
mm |
460 |
|
Swing over cross slide |
mm |
252 |
|
|
Distance between centers |
mm |
1000 |
|
|
Width of bed |
mm |
300 |
|
|
Spindle |
Range of spindle speed |
r/min |
4 changes, 32~2000 |
|
Spindle nose |
mm |
D1-6 |
|
|
Taper of spindle bore |
|
No.6 Morse |
|
|
Spindle bore |
mm |
58 |
|
|
Travel |
X-axis travel |
mm |
205 |
|
Z-axis travel |
mm |
1000 |
|
|
X-axis rapid speed |
m/min |
3 |
|
|
Z-axis rapid speed |
m/min |
6 |
|
|
Accuracy
|
X positioning accuracy |
mm |
±0.015 |
|
Z positioning accuracy |
mm |
±0.02 |
|
|
X repositioning accuracy |
mm |
±0.006 |
|
|
Z repositioning accuracy |
mm |
±0.008 |
|
|
Motor |
Power of main motor |
kW |
5.5 |
|
Power of coolant pump |
kW |
0.09 |
|
|
Tool post
|
Type of tool post |
|
electric |
|
Number of tool post |
|
4 |
|
|
Max. section of tool |
mm |
25×25 |
|
|
Tailstock
|
Diameter of tailstock sleeve |
mm |
60 |
|
Travel of tailstock sleeve |
mm |
160 |
|
|
Taper of tailstock sleeve |
|
No.4 Morse |
|
|
Other
|
Overall dimension (L×W×H) |
cm |
218×118×180 |
|
Packing size (L×W×H) |
cm |
230×123×200 |
|
|
Net weight |
kg |
1800 |
|
|
Gross weight |
kg |
2000 |

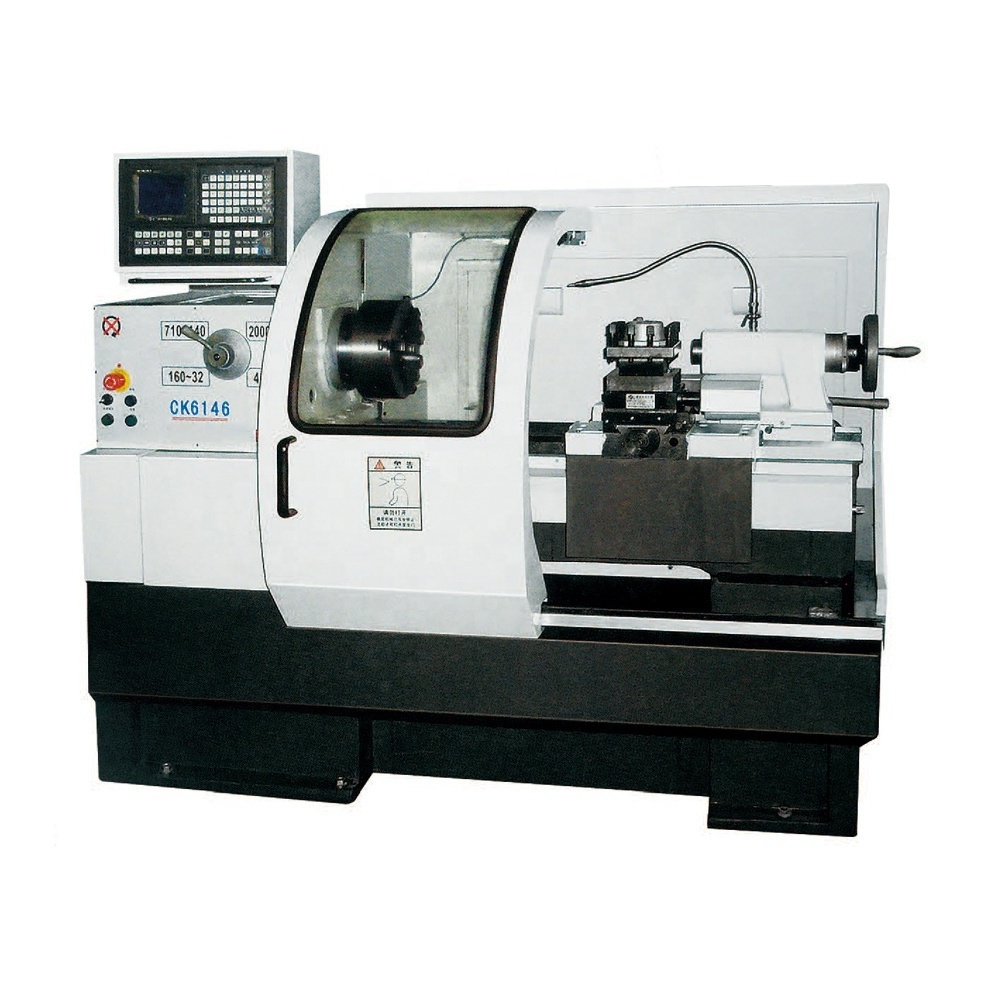

Product Pictures for Lathe Embossed Metal For Sale on Craigslist Made in Germany
