Quick Details
-
Brand Name:
-
GONSIN
-
Model Number:
-
TL-V4200
-
Housing Colour Scheme:
-
Black or Silver
-
Attendance Registration:
-
by IC Card or Mic Key Press
-
Video camera supported:
-
Up to 4
-
Language Interpretation:
-
1+5 Channels
-
Voting and Election:
-
5 buttons
-
Video camera:
-
supported Up to 4
-
Mic stem length:
-
standard: 41cm
-
Simultaneous Interpretation:
-
Yes
-
Mounting type:
-
Fixed or portable tabletop
-
Sound quality:
-
super good
Quick Details
-
Type:
-
Audio Conference System, Network Conference System
-
Function:
-
Discussion
-
Place of Origin:
-
China
-
Brand Name:
-
GONSIN
-
Model Number:
-
TL-V4200
-
Housing Colour Scheme:
-
Black or Silver
-
Attendance Registration:
-
by IC Card or Mic Key Press
-
Video camera supported:
-
Up to 4
-
Language Interpretation:
-
1+5 Channels
-
Voting and Election:
-
5 buttons
-
Video camera:
-
supported Up to 4
-
Mic stem length:
-
standard: 41cm
-
Simultaneous Interpretation:
-
Yes
-
Mounting type:
-
Fixed or portable tabletop
-
Sound quality:
-
super good
GONSIN TL-4200 conference table microphone video conference conference room sound system
GONSIN TL-VCB4200 digital conference system offers a multi-functional integrated conferencing solution.

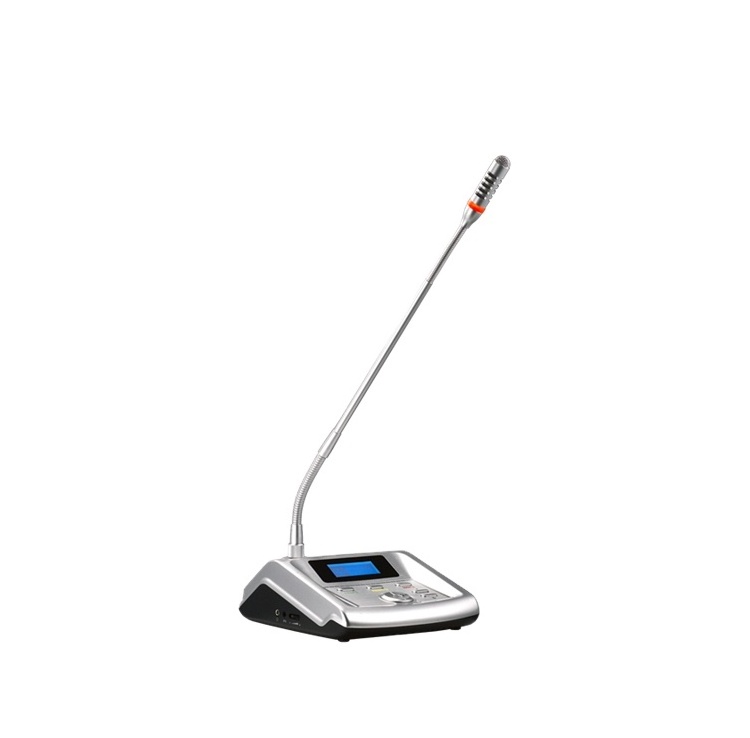

TL-VDCB4200 Delegate Unit
- Push button switch for MIC ON/OFF
- 1/2/3/4/5 numkeys for voting and attendee registration
- Red ring luminant to identify live unit
- Unidirectional electret condenser microphone
- Built-in chipcard reader for user identification
- Back-lit LCD screen for dynamic status display
- Up/down channel selectors for six languages
- Dual 3.5mm headphone jacks with level control
- Automatic gain control (AGC) to prevent acoustic feedback
- Supports automatic video camera tracking
- Frequency response: 50Hz to 18kHz
- S/N ratio at 1mV input level: -95 dB
- Sensibility: -46±4dB
- Power input: 24 VDC
- Effective pick-up range: up to 60 cm
- Microphone stem length: 41cm
- ABS base dimensions: 150x135x50 mm (L*W*H)
- Dual-shielded captive cable length: 50 cm
- Portable or fixed tabletop mounting
TL-VXCB4200 Chairman Unit
- Push button for MIC ON/OFF
- Priority button to override/mute all active delegate units
- 1/2/3/4/5 numkeys for voting and attendee registration
- Unidirectional electret condenser microphone
- Red ring luminant to identify live unit
- Built-in chipcard reader for user identification
- Back-lit LCD screen for dynamic status display
- Up/down channel selectors for six languages
- Dual 3.5mm headphone jacks with level control
- Automatic gain control (AGC) to prevent acoustic feedback
- Supports automatic video camera tracking
- Frequency response: 50Hz to 18kHz
- Sensibility: -46±4dB
- Power input: 24VDC
- Effective pick-up range: 60 cm
- Microphone stem length: 41 cm
- ABS base dimensions: 150x135x50 mm (L*W*H)
- Dual-shielded captive cable length: 50 cm
- Portable or fixed tabletop mounting
TC-F06 Interpreter Console
The TC-F06 interpreter console is a digitally-controlled workstation allowing two interpreters to work in turn.
-
Designed to be used for 6-channel simultaneous interpretation
-
Gooseneck microphone and headset microphone can be used
-
Built-in loudspeaker with volume level control
-
LCD screen for specific information display
-
3.5mm jacks on both sides for MIC input and headphone/recording output
-
3 incoming languages can be preset, with pre-select A/B/C keys.
-
Automatic channel interlocking prevents interpreters from using same outgoing channel
-
Relay interpretation allows the interpreters to work from an active channel other than the floor
-
MUTE key to enable a brief muting of the microphone for cough cut
-
SLOW key to alert the current speaker to speak slowly
-
Loudspeaker is automatically switched off when MIC is on or headset is used
-
The floor signal goes to each output channel after the microphone is switched off
-
Multiple interpreter consoles can be connected in a daisy-chain
-
Designed to comply with all related international standards & requirements.
-
Frequency response: 50Hz-18kHz
-
Distortion at 1 kHz: < 0.1%
-
Channel separation: > 85 dB
-
Signal-to-noise ratio: > 90 dB
-
Max. input power level: 7.5V
-
Operating voltage: 24V
-
Power consumption: 2.5W
- 8Ω/2W built-in loudspeaker
- Operating temperature: 0-50
- Standard mic stem length: 425 mm
- 128x64 backlit LCD screen
- 3/5/10m cable with DB25 connectors
- 3.5mm jacks for mic, headphone, recorder
- ABS base: 247 X 145 X 95 mm
-
-
TC-ZB4 Central Control Unit
Main Functions
•In compliance with IEC60914 international standard
•With full digital audio technology, built-in high-speed CPU and high-performance DSP digital audio processor, CD sound quality.
•Supports 48KHz audio sample rate, acoustic frequency response can up to 20Hz~20KHz.
•Black tempered glass panel design, simple and high-end design. All the function divisions are clearly layout and easy to operate.
•The sever comes with built-in OLED panel to display system status, active mic, speaking mode.
•Language supports Chinese/ English. Russia, Spanish can be customized.
•Navigation knob for more convenient operation and management
•4 route port to connect conference units, the system has auto-repair function, support hot plug- and-play.
•One central control unit is able to accommodate 60-70 microphones. By cascading extension units,
•the system can support upto 4096 conference units.
•Universal voltage power switch for wider usable range and sufficient power supply.
•Support USB auto recording: after the front panel is inserted U disk, audio recording can be set automatically or manually. The recording status can be displayed in real time.
•Supports automatic video tracking (SD and HD), with preset panoramic position. Built-in 4×1 SD
•video matrix, to support SD video tracking without adding more device
•Input port for external audio signal: for alarm audio, PA, and other audio systems, the conference units can output audio signals synchronously.
•Internal clock and calendar, it will be displayed on central control unit, conference units.
•Built-in auto-detection fo conference units; before conferences, self-test can be run for each conference units.
•TCP/IP PC communication between central control unit and PC, which can achieve control
•management, remote fault diagnosis and remote update.
Stand-alone Mode Functions:
•ID number writing: the conference system supports automatically or manually assign ID to the corresponding equipment.
•All or individual units' VOX sensitivity are adjustable (apply to 5600 series)
•LCD screen contrast of Unit is adjustable (apply to 4200 series)
•Speaking mode: Operator, Auto, FIFO, VOX, request to speak (with software).
•VOX function: in VOX mode, the unit will be activated when user speaks; VOX sensitivity can be adjust by the server ( high, middle, low); microphone time-out is adjustable ( 6-180 seconds).
•1-4 delegate unit can be used simultaneously (except chairman unit); chairman/vice chairman unit
are not subject to active mic limit, it’s allowed to open at any time.
•The system can have multiple chairman units; delegate unit can be set as vice-chairman units. There are unlimited chairman and vice-chairman units.
Extended functions under PC and software control
•Register function and real-time participants statistics.
•Centralized conference management, operator can allow or reject delegate request to talk.
•Speaking time limit can be preset for conference units; After the speaking time is up, the conference unit will be off.
•Conference audio recording and video recording(need audio video capture card)
•Delegate unit can be set to be vice-chairman units by software; vice-chairman unit is not subject to active mic limit.
•Support management software dual-system hot backup function; One control computer can be set
as backup and connect to the system; if the current computer has faults, the backup computer can be automatically hosted to ensure the smooth and continuous meeting.
•Conference management software can be customized.
Based on functions of Central Control Unit TL-Z4, Central Control Unit TL-ZB4 has functions below:
Extended functions under PC and software control
- Voting: Yes, No, Abstain . Vote counting and result display are enabled automatically by PC
- Single-choice and multiple-choice voting
- First key-press and final key-press voting
- Election: elect one or more out of N candidates, with 'competitive election', 'equal number election' and 'quick election’
- 4-key evaluation: Good, Fair, Poor, Abstain.
- Utilize multi-level error correction and data encryption technique to ensure information security.
- Customized voting options and voting methods, support customized language mode or display screen.
