Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Xinda Machinery
-
Voltage:
-
380V 50Hz
-
Power:
-
6.33 KW
-
Dimension(L*W*H):
-
2544*2600*2020mm
-
Weight:
-
2000 kg
-
Name:
-
High Speed Paper Napkin Packing Machine
-
Packing speed:
-
25~60 packages/min
-
Power of heating:
-
3 KW
-
Power of main driving moto:
-
0.75 KW
-
Pressure air:
-
0.6MPa
-
Packing material:
-
CPP OPP double-side hot sealing-film
-
Thickness:
-
0.035~0.05mm
-
Type:
-
packing machine
-
Packing range:
-
100~180 W:100~180 H:15~50
Quick Details
-
Production Capacity:
-
100 sets per year
-
Product Type:
-
napkin paper machine
-
Processing Type:
-
packing machine
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Xinda Machinery
-
Voltage:
-
380V 50Hz
-
Power:
-
6.33 KW
-
Dimension(L*W*H):
-
2544*2600*2020mm
-
Weight:
-
2000 kg
-
Name:
-
High Speed Paper Napkin Packing Machine
-
Packing speed:
-
25~60 packages/min
-
Power of heating:
-
3 KW
-
Power of main driving moto:
-
0.75 KW
-
Pressure air:
-
0.6MPa
-
Packing material:
-
CPP OPP double-side hot sealing-film
-
Thickness:
-
0.035~0.05mm
-
Type:
-
packing machine
-
Packing range:
-
100~180 W:100~180 H:15~50
Product Overview

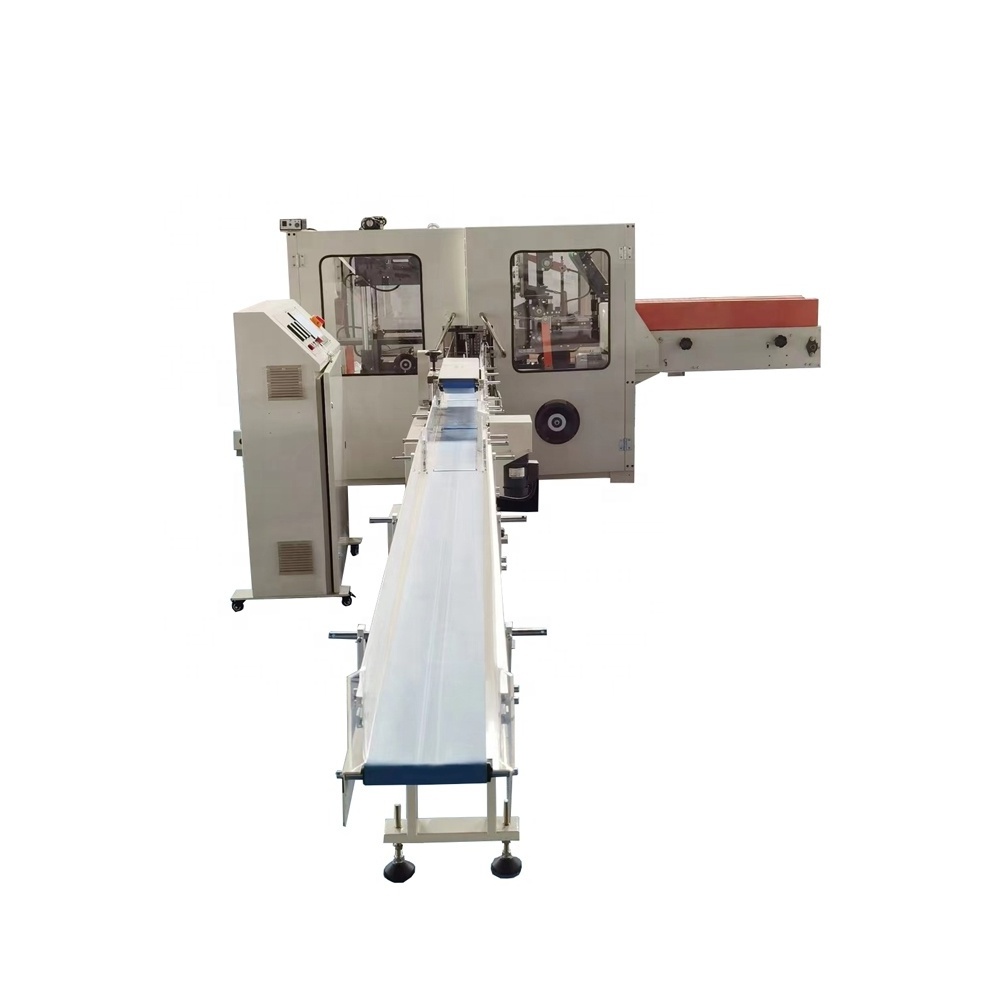

High Speed Napkin Tissue Paper Packing Machine
CIL-NP-602
High Speed Napkin Tissue Paper Packing Machine
CIL-NP-602
Characteristic:
1. This machine suitable for the packing of thin napkins and square tissues.
2. Adopt multi-function digital frequency control, PLC to make the control more advanced, easy to adjust and maintains.
3. Touch screen human-machine operation interface ,easy to set the parameter.
4. Alarm automatically when there is no film, malfunction alarm display, to make operation and maintains easier and faster.
5. The control of length of film has been set with two model, one is the setting of length ,the other is color code tracking.
6. Main electric elements adopts international famous brand, the quality is more stable and reliable.
7. Vacuum film feeding system to make the feeding of film more smoothly and running more stable.
8. The machine can equip with coding unit and code printing unit.
9. Change the specification more easy and faster. Using range and technical parameter
This machine suitable for the packing of printed napkin which thickness is more thin and corresponding size square tissue, also
suitable for the transparent film three-dimensional outside packing of other square type of corresponding specification. This
machine has the feature of tight structure, graceful outline, easy operation, convenient for maintenance, high degree
autoimmunization and other advantages. This is a ideal automatic packing equipment for printed napkin paper. Also, it is the most
advanced automatic napkin paper packing machine in domestic presently.
1. This machine suitable for the packing of thin napkins and square tissues.
2. Adopt multi-function digital frequency control, PLC to make the control more advanced, easy to adjust and maintains.
3. Touch screen human-machine operation interface ,easy to set the parameter.
4. Alarm automatically when there is no film, malfunction alarm display, to make operation and maintains easier and faster.
5. The control of length of film has been set with two model, one is the setting of length ,the other is color code tracking.
6. Main electric elements adopts international famous brand, the quality is more stable and reliable.
7. Vacuum film feeding system to make the feeding of film more smoothly and running more stable.
8. The machine can equip with coding unit and code printing unit.
9. Change the specification more easy and faster. Using range and technical parameter
This machine suitable for the packing of printed napkin which thickness is more thin and corresponding size square tissue, also
suitable for the transparent film three-dimensional outside packing of other square type of corresponding specification. This
machine has the feature of tight structure, graceful outline, easy operation, convenient for maintenance, high degree
autoimmunization and other advantages. This is a ideal automatic packing equipment for printed napkin paper. Also, it is the most
advanced automatic napkin paper packing machine in domestic presently.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
|
|
1
|
Packing range
|
L:100~200 W:100~230 H:50~100mm
|
|
|
|
2
|
Power of heating
|
6.33 KW
|
|
|
|
3
|
Packing speed
|
25~80 packages/min
|
|
|
|
4
|
Thickness
|
0.035~0.05mm
|
|
|
|
5
|
Packing material
|
CPP ,OPP double-side hot sealing-film
|
|
|
|
6
|
Overall size(L×W×H)
|
6.5 ×2.6×2.1m
|
|
|
|
7
|
Weight
|
3000kg
|
|
|
|
8
|
Power supply
|
380V 50Hz
|
|
|
PRODUCT CONFIGURATION
HEIGH POWER ENGINE
SIEMENS HTM
SIEMENS SERVO
