Quick Details
-
Range of Spindle Speed(r.p.m):
-
5 - 160 r.p.m
-
Width of bed (mm):
-
0
-
Max. Turned Length (mm):
-
0 mm
-
Place of Origin:
-
China
-
Brand Name:
-
RICHON
-
Model Number:
-
CX5116
-
Voltage:
-
380V or 220V selectable
-
Dimension(L*W*H):
-
2830*2670*2810
-
Weight (KG):
-
12000 KG
-
CNC or Not:
-
Normal
-
After-sales Service Provided:
-
Online support
-
Table diameter:
-
1400mm
-
Max. Swing Diameter:
-
1600mm
-
Weight:
-
12500
-
Certification:
-
ISO9001
-
Power:
-
22
Quick Details
-
Max. Length of Workpiece (mm):
-
3000
-
Machining Capacity:
-
Heavy Duty
-
Spindle Bore(mm):
-
0
-
Range of Spindle Speed(r.p.m):
-
5 - 160 r.p.m
-
Width of bed (mm):
-
0
-
Max. Turned Length (mm):
-
0 mm
-
Place of Origin:
-
China
-
Brand Name:
-
RICHON
-
Model Number:
-
CX5116
-
Voltage:
-
380V or 220V selectable
-
Dimension(L*W*H):
-
2830*2670*2810
-
Weight (KG):
-
12000 KG
-
CNC or Not:
-
Normal
-
After-sales Service Provided:
-
Online support
-
Table diameter:
-
1400mm
-
Max. Swing Diameter:
-
1600mm
-
Weight:
-
12500
-
Certification:
-
ISO9001
-
Power:
-
22
Products Description

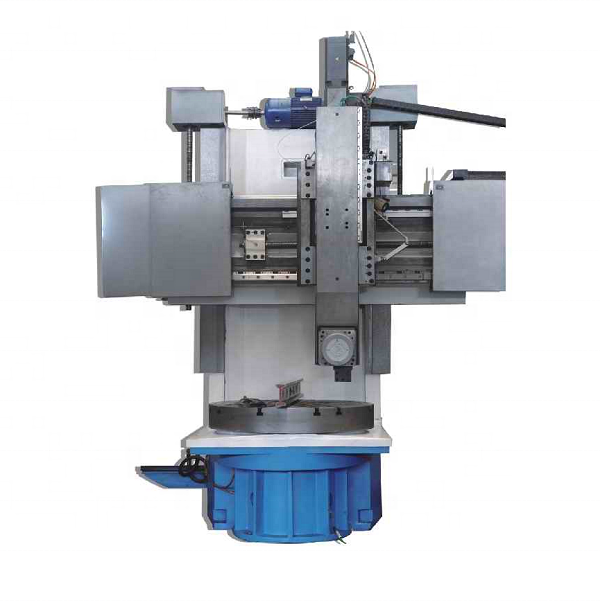

SINGLE COLUMN VERTICAL LATHE CX5116
|
Name
|
Value
|
|
Max. turning diameter (mm)
|
1600
|
|
Max. working height (mm)
|
1000
|
|
Max. weight of workpiece (t)
|
5
|
|
Table diameter (mm)
|
1400
|
|
Speed range of table (r/min)
|
5~160
|
|
Speed-step of table
|
16
|
|
Max. torque of table (KN.m)
|
25
|
|
Max. cutting resistance of railhead (KN)
|
25
|
|
Max. cutting resistance of sidehead (KN)
|
20
|
|
Total cutting resistance (KN)
|
40
|
|
Travel of railhead (Horizontal) (mm)
|
915
|
|
Travel of railhead (Vertical) (mm)
|
800(turret)/1000(ram)
|
|
Travel of sidehead (Horizontal) (mm)
|
630
|
|
Travel of sidehead (Vertical) (mm)
|
900
|
|
Travel of crossbeam (mm)
|
650
|
|
Feeding range of railhead and sidehead (mm/min)
|
0.8~86
|
|
Rapid moving speed of railhead and sidehead (mm/min)
|
1800
|
|
Moving degrees limit of railhead(°)
|
±30
|
|
Moving speed of crossbeam (mm/min)
|
440
|
|
Power of main motor (kw)
|
22
|
|
Overall dimensions (L×W×H) (mm)
|
2830×2670×2810
|
|
Weight of machine (t)
|
12.5t
|
|
Name
|
Amount
|
Remarks
|
|
Chuck jaw
|
4
|
|
|
toolholder
|
1
|
|
|
Square socket wrench
|
1
|
Chuck jaw
|
|
Square socket bent spanner
|
1
|
Railhead,sidehead
|
|
Nut
|
7
|
Foundation
|
|
foundation bolt
|
7
|
Foundation
|
|
Eyes spanner
|
1
|
|
