Quick Details
-
Production Capacity:
-
15-60 bags/min
-
Weight (KG):
-
210
-
Voltage:
-
customized
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
LPMIE
-
Dimension(L*W*H):
-
850*1150*1860
-
Core Components:
-
Other
-
Product name:
-
Automatic Vertical Packing Machine
-
Bag type:
-
Seal Bag
-
Main Function:
-
Weighting Packing
-
Automaticity:
-
Fully Auto
-
Packing material:
-
Composite Film
-
Packing Machine Function:
-
Weighing Sealing Bag Packing
-
Packing type:
-
Stand-up
-
Usage:
-
ice bag/ketchup/shampoo etc.
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing
-
Packaging Type:
-
Bags, Film
-
Packaging Material:
-
polypropylene/polyethylene, aluminum foil, polyester/aluminum plated, nylon
-
Production Capacity:
-
15-60 bags/min
-
Weight (KG):
-
210
-
Voltage:
-
customized
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
LPMIE
-
Dimension(L*W*H):
-
850*1150*1860
-
Core Components:
-
Other
-
Product name:
-
Automatic Vertical Packing Machine
-
Bag type:
-
Seal Bag
-
Main Function:
-
Weighting Packing
-
Automaticity:
-
Fully Auto
-
Packing material:
-
Composite Film
-
Packing Machine Function:
-
Weighing Sealing Bag Packing
-
Packing type:
-
Stand-up
-
Usage:
-
ice bag/ketchup/shampoo etc.
Product Feature
1. Suitable for the measurement packaging of liquid materials in industries such as food, cosmetics, and chemicals, as well as the packaging of biological ice bags, aviation ice bags, and fresh-keeping ice bags
2. The equipment can automatically complete bag making, measuring, cutting, sealing, and bag cutting, and can be equipped with functions such as printing batch numbers according to customer requirements
3. The machine adopts touch screen operation, stepper motor film pulling control bag length, PLC control machine operation, and intelligent temperature controller to control sealing temperature. The entire machine is easy to operate, with stable performance and precise detection
4. Packaging material: polypropylene/polyethylene, aluminum foil, polyester/aluminum plated, nylon
5. All material contact surfaces are made of 304 stainless steel material
6. The feeding pipeline adopts an anti dripping device to better ensure the dripping and wire drawing of various materials
7. The horizontal sealing mold adopts a more stable anti drip mold, making the sealing more flat and firm

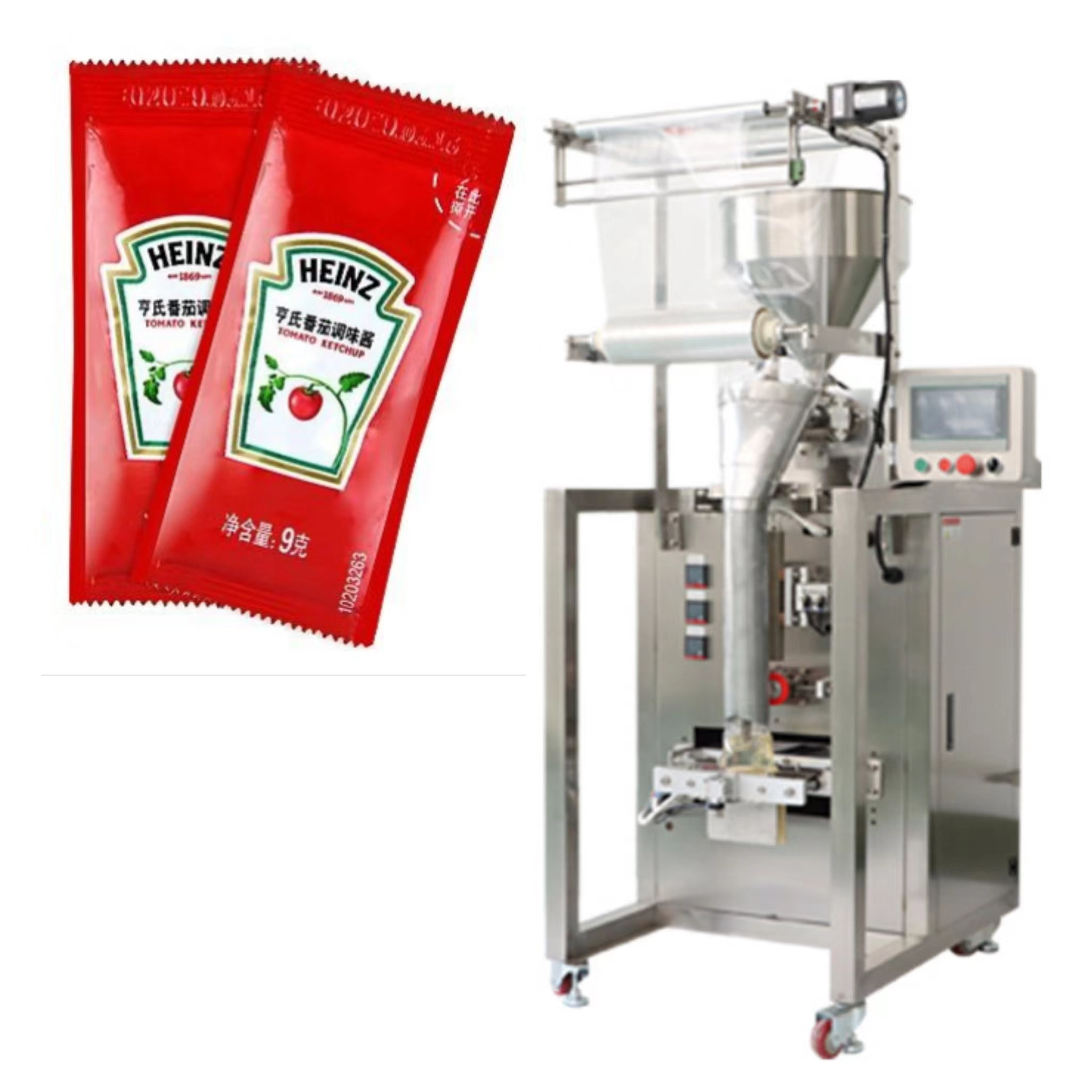

Equipment reference diagram (equipment pictures are for reference only, and specific information shall be subject to the customized)
Technical Parameters
| Model type | 80J |
| Power | 2 kw |
| Power supply | 220V 50hz |
| packing speed | 15-60 bags/min,depend on the film width and material weight |
| Packaging accuracy | ±1% |
| product size | L850*W1150*H1860 mm |
| Measurement method&range | Piston cylinder metering pump 0.1-1000g |
| bag size | L50-270mm*W50-190mm(customized support) |
| Packaging film | polypropylene/polyethylene, aluminum foil, polyester/aluminum plated, nylon |
| product weight | 210kg |
Packing:
Whole machine and every parts wrapped by plastic film for dusting-proof. Packed in export standard wooden case with pallet, conducive to forklift handling.
Shipping:
Shipping method: by sea, by air, by international express company.
Delivery time: 30-45 days after order confirm.
Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.
Guarantee:
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
