Aluminum plate is used to make LED PCB circuit board, the shape is round, and the size can be customized according to customer
needs.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Maike
-
Copper Thickness:
-
1oz
-
Min. Hole Size:
-
0.20mm
-
Min. Line Width:
-
0.1mm
-
Min. Line Spacing:
-
0.1mm
-
Surface Finishing:
-
HASL Lead Free
-
Board Size:
-
HASL, 50mm/65m/80mm
-
Product name:
-
94vo Multilayer pcb Board/aluminum led pcb board
-
Type:
-
customized
-
MOQ:
-
1pcs
-
Color:
-
white/blue/green
-
Sample:
-
OEM/ODM
-
Certificate:
-
ISO9001/ROHS
-
Service:
-
One-stop Service
-
Number of Layers:
-
6-layer
Quick Details
-
Base Material:
-
FR4 aluminum, Aluminum Base
-
Board Thickness:
-
1.6mm
-
Model Number:
-
MK-LED
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Maike
-
Copper Thickness:
-
1oz
-
Min. Hole Size:
-
0.20mm
-
Min. Line Width:
-
0.1mm
-
Min. Line Spacing:
-
0.1mm
-
Surface Finishing:
-
HASL Lead Free
-
Board Size:
-
HASL, 50mm/65m/80mm
-
Product name:
-
94vo Multilayer pcb Board/aluminum led pcb board
-
Type:
-
customized
-
MOQ:
-
1pcs
-
Color:
-
white/blue/green
-
Sample:
-
OEM/ODM
-
Certificate:
-
ISO9001/ROHS
-
Service:
-
One-stop Service
-
Number of Layers:
-
6-layer
Product Description
Title goes here.
Number of Layer:
1,2,4 or 6,upto 18 layerOrder
Quantity:
1 to 50,000
BoardShape:
Retangular,round,slots,cutouts,complex,irregular
Board Type:
Rigid, Flexible, Rigid-flexible
Board Material:
FR-4 glass epoxy, FR-4 high Tg, Rohs compliant,Aluminum,Rogers,etc.
Board Cutting:
Shear,V-score,Tab-routed
Board Thickness:
0.2-4.0mm, Flex 0.01-0.25mm
Copper Weight:
1.0, 1.5, 2.0 oz
Solder Mask:
Double-sided green
LPI,Also support Red,White,Yellow,Blue,Black
LPI,Also support Red,White,Yellow,Blue,Black
Silk Screen:
Double-sided or single-sided in white,yellow,black,or negative
Silk Screen Min Line Width:
0.006'' or 0.15mm
Max Board Dimensions:
20 inch*20inch or 500mm*500mm
Min Trace/Gap:
0.10mm, or 4mils
Min Drill Hole Diameter:
0.01'',0.25mm, or 10mils
Surface Finish:
HASL,Nickle,Immersion Gold,Immersion Tin,Immersion Silver,OSP,etc.
Board Thickness Tolerance:
±10%
Copper Weight Tolerance:
± 0.25 oz
Minimal Slot Width:
0.12'', 3.0mm, or 120mils
V-Score Depth:
20-25% of board thickness
Design File FormateGerber :
RS-274,274D,Eagle and AutoCAD's DXF,DWG
Detailed Images
Make materials
LED pcb board size
LED PCB board diameter can be customized according to customer needs
Lamp bead patch production
Customize different number of lamp bead patches according to customer needs,
The lamp bead color is available in white or warm yellow.
The lamp bead color is available in white or warm yellow.
Finished product display
LED PCB boards can be made driverless or with drive
Product Presentation
|
|

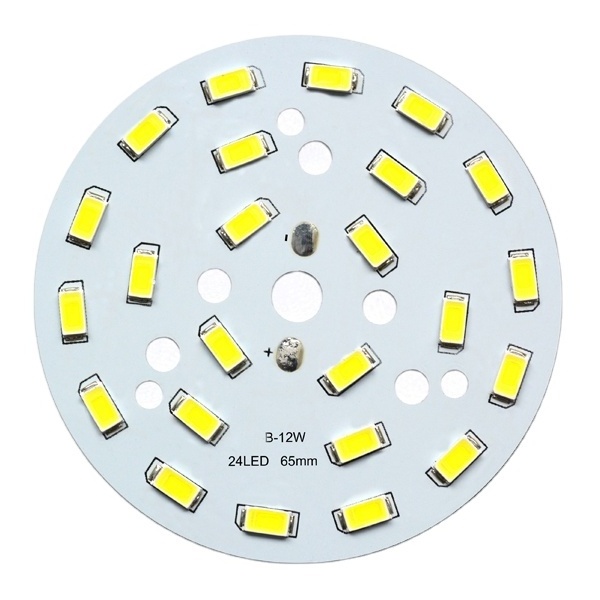

LED round aluminum pcb board
|
|
|
Aluminum
|
|
|
5/7/9/12/15
|
|
|
220v
|
|
|
white/Warm yellow
|
|
|
B-15W
|
|
Style
|
round
|
-
Size introduction and size picture
|
Power
|
Insulation
|
Number of layers
|
Diameter
|
Driver
|
LED lamp beads
|
|
5W
|
Metal based
|
double-sided
|
50mm
|
Customized
|
10pcs
|
|
7W
|
Metal based
|
double-sided
|
50mm
|
Customized
|
14pcs
|
|
9W
|
Metal based
|
double-sided
|
65mm
|
Customized
|
18pcs
|
|
12w
|
Metal based
|
double-sided
|
65mm
|
Customized
|
24pcs
|
|
15w
|
Metal based
|
double-sided
|
80mm
|
Customized
|
30pcs
|
