Quick Details
-
Brand Name:
-
Gxcom Technology
-
Model Number:
-
TS8208P-1G1F, TS8208P-2G, TS8208P-2F, TS8216P-2F, TS8224P-2F
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Gigabit PoE Switch
-
Port Density:
-
8/16/24
-
PoE Ports:
-
8/16/24*100Mbps RJ45
-
Uplink Ports:
-
RJ45/SFP
-
Applications:
-
Support PoE IP Cameras
-
Power Supply:
-
48V/52V DC,AC100-240V
-
Device Type:
-
100% original
-
Manufacturer:
-
GXCOM Technology
-
Certificate:
-
CE FCC RoHS
-
Warranty:
-
1 Years
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
16Gbps
-
Brand Name:
-
Gxcom Technology
-
Model Number:
-
TS8208P-1G1F, TS8208P-2G, TS8208P-2F, TS8216P-2F, TS8224P-2F
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Gigabit PoE Switch
-
Port Density:
-
8/16/24
-
PoE Ports:
-
8/16/24*100Mbps RJ45
-
Uplink Ports:
-
RJ45/SFP
-
Applications:
-
Support PoE IP Cameras
-
Power Supply:
-
48V/52V DC,AC100-240V
-
Device Type:
-
100% original
-
Manufacturer:
-
GXCOM Technology
-
Certificate:
-
CE FCC RoHS
-
Warranty:
-
1 Years
Product Description
Full 802.3af at gigabit Ethernet PoE switch 48V 8 16 24 port 10/100/1000Mbps
PoE network switch for IP Camera

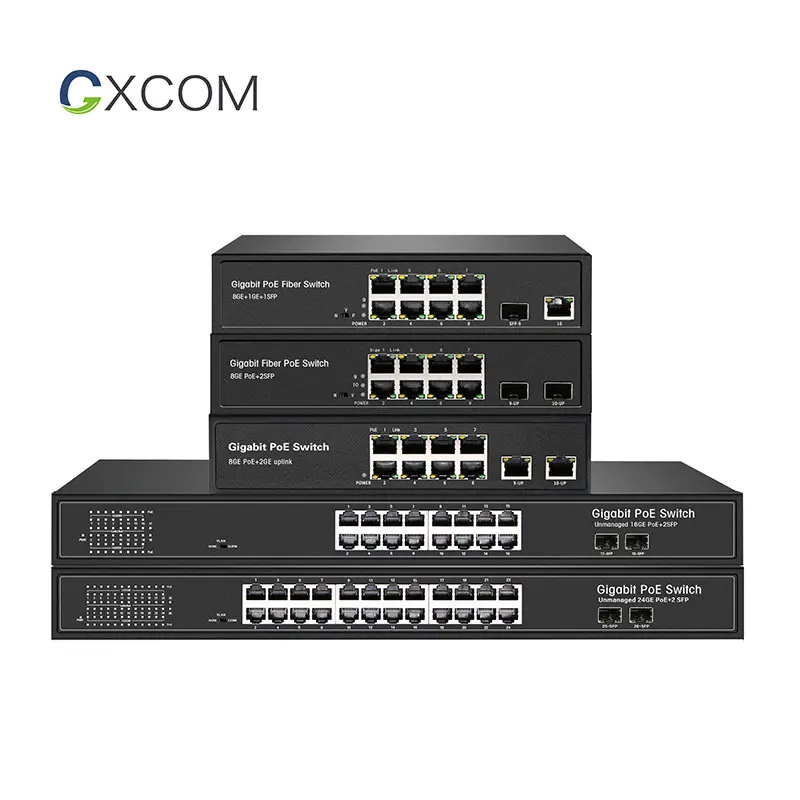

TS8200 series are 10/100/1000Mbps full gigabit Ethernet PoE switch. The series offer 8 /16/24 port 10/100/1000Mbps auto negotiation PoE port,and gigabit uplink RJ45/fiber SFP. As PoE power supply device,they can automatically detect and supply power for powered devices suitable for PoE standard.Having the features of "play and plug",no need of configuration and easier and more convenient usage,the series is satisfied in network environment required high-density PoE supplying power and adapts to construction of economic and efficient network in hotels ,schools,factory areas,domitories and small enterprises.
TS8208P-1G1F
8*10/100/1000Mbps PoE Ports+1*1Gb(RJ45+SFP) Uplink
TS8208P-2G
8*10/100/1000Mbps PoE Ports+2*1Gb RJ45 Uplink
TS8208P-2F
8*10/100/1000Mbps PoE Ports+2*1Gb SFP Uplink
TS8216P-2F
16*10/100/1000Mbps PoE Ports+2*1Gb SFP Uplink
TS8224P-2F
24*10/100/1000Mbps PoE Ports+2*1Gb SFP Uplink
Main Features
* Full gigabit access
* PoE Standard:IEEE802.3af/at PoE+, support all ports standard detection.
* Flow control method: full duplex adopts IEEE 802.3x, half duplex adopts Back pressure.
* Port supports Auto MDI/MDIX.
* Port supports lightning protection(secondary level requirements).
* Single port supports PoE power Max.30W .
* Exchanging Mechanism: Store and forward.
* All ports support exchange at wire speed.
* Zero-configuration: automatically supply for adaptive devices.
* Panel indicator monitors operating status and helps fault analysis.
* Full gigabit access
* PoE Standard:IEEE802.3af/at PoE+, support all ports standard detection.
* Flow control method: full duplex adopts IEEE 802.3x, half duplex adopts Back pressure.
* Port supports Auto MDI/MDIX.
* Port supports lightning protection(secondary level requirements).
* Single port supports PoE power Max.30W .
* Exchanging Mechanism: Store and forward.
* All ports support exchange at wire speed.
* Zero-configuration: automatically supply for adaptive devices.
* Panel indicator monitors operating status and helps fault analysis.
Application
* CCTV IP Camera
* IP Phone
* VoIP
* Wireless AP
...
* CCTV IP Camera
* IP Phone
* VoIP
* Wireless AP
...
|
Model
|
TS8208P-1G1F
|
|
Interface
|
8*10/100/1000Mbps PoE ports
1*1Gb (RJ45+SFP) uplink ports |
|
Switch Capacity
|
Bandwidth: 20Gbps
|
|
Power Input
|
AC100~240V
|
|
PoE Standard
|
IEEE802.3af/at (PoE+)
|
|
Weight
|
1.5kg
|
|
Model
|
TS8208P-2G
|
|
Interface
|
8*10/100/1000Mbps PoE ports
2*1Gb RJ45 uplink ports |
|
Switch Capacity
|
Bandwidth: 20Gbps
|
|
Power Input
|
AC100~240V
|
|
PoE Standard
|
IEEE802.3af/at (PoE+)
|
|
Weight
|
1.5
|
|
Model
|
TS8208P-2F
|
|
Interface
|
8*10/100/1000Mbps PoE ports
2*1Gb SFP uplink ports |
|
Switch Capacity
|
Bandwidth: 20Gbps
|
|
Power Input
|
AC100~240V
|
|
PoE Standard
|
IEEE802.3af/at (PoE+)
|
|
Weight
|
1.5kg
|
|
Model
|
TS8216P-2F
|
|
Interface
|
16*10/100/1000Mbps PoE ports
2*1Gb SFP uplink ports |
|
Switch Capacity
|
56Gbps
|
|
Power Input
|
AC100~240V
|
|
PoE Standard
|
IEEE802.3af/at (PoE+)
|
|
Weight
|
4.5kg
|
|
Model
|
TS8224P-2F
|
|
Interface
|
24*10/100/1000Mbps PoE ports
2*1Gb SFP uplink ports |
|
Switch Capacity
|
56Gbps
|
|
Power Input
|
AC100~240V
|
|
PoE Standard
|
IEEE802.3af/at (PoE+)
|
|
Weight
|
5kg
|
Packing & Delivery
Package Type:
1.ESD bag+ Kraft Paper Box+ Carton Box
2.One standard set including 1 device, 1 manual instruction, 1 warranty card.
3. Shipping terms: DHL/UPS/TNT/FedEx/EMS etc.., please contact supplier to get latest shipping time to your country.
4. Enough Stocks, but for large quantities, please contact supplier to get accurate leading time
