Quick Details
-
Warranty:
-
1 year
-
After-sales Service Provided:
-
Overseas service center available
-
Product Name:
-
B5032 competitive price vertical metal slotting machine
-
Name:
-
B5032 Slotting machine
-
Type:
-
horizontal
-
Keyword:
-
slotting
-
Maximum cutting length(mm):
-
320
-
Ram vertical adjustment distance:
-
315
-
Table rotary feed range:
-
0.052-0.783
-
Motor speed:
-
1430
-
Model:
-
B5032
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Weight:
-
3000
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
luyoung
-
Dimension(L*W*H):
-
2261*1495*2245
-
Warranty:
-
1 year
-
After-sales Service Provided:
-
Overseas service center available
-
Product Name:
-
B5032 competitive price vertical metal slotting machine
-
Name:
-
B5032 Slotting machine
-
Type:
-
horizontal
-
Keyword:
-
slotting
-
Maximum cutting length(mm):
-
320
-
Ram vertical adjustment distance:
-
315
-
Table rotary feed range:
-
0.052-0.783
-
Motor speed:
-
1430
-
Model:
-
B5032
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Weight:
-
3000
-
Certification:
-
CE

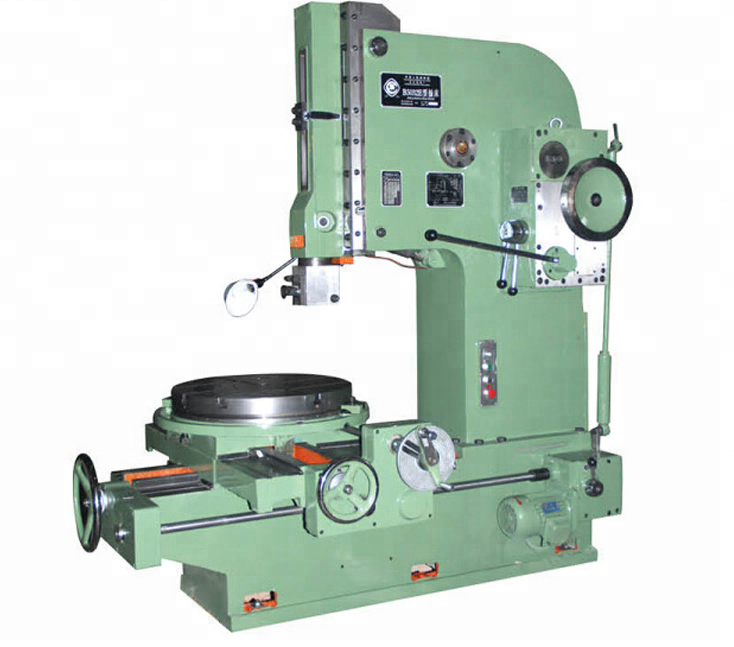

B5032 competitive price vertical metal slotting machine
|
Specification |
Unit |
B5032 |
B5020 |
|
Max. Slotting length |
mm |
320 |
220 |
|
Worktable size |
mm |
630*560 |
200 |
|
Ram motion frequency |
times/min |
20.32.50.80 |
32.50.80.125 |
|
Ram tilt angle |
° |
0-8 |
0-8 |
|
Ram vertical adjustment distance |
mm |
315 |
230 |
|
Cutter head bearing surface to the distance between the forearm bed |
mm |
600 |
485 |
|
Table Diameter |
mm |
630 |
500 |
|
The distance between the lower end of the sliding frame to work table |
mm |
490 |
320 |
|
Max. longitudinal moving distance of working table |
mm |
630 |
500 |
|
Max. transverse moving distance of working table |
mm |
560 |
500 |
|
Table maximum rotation angle |
° |
360 |
360 |
|
Vertical and horizontal table power feed range |
mm |
0.08-1.21 |
0.08-1.21 |
|
Table rotary feed range |
mm |
0.052-0.783 |
0.052-0.783 |
|
Motor power |
kw |
4 |
3 |
|
Motor speed |
r/min |
960 |
1430 |
|
Machine weight |
kg |
3000 |
2200 |
|
Outline dimension |
mm |
2261*1495*2245 |
1916*1305*1995 |
