Quick Details
-
Operating voltage:
-
400V AC
-
Insulation resisitance:
-
>1000MΩ(DC500V)
-
Therminal temperature rise:
-
<50K
-
Withstand voltage:
-
2000V
-
Contact impedance:
-
0.5mΩ Max
-
Vibration resistance:
-
Meet JDQ53.36.1.1-53.36.1.2 requirements
-
Mechanical life:
-
no-load socket in/pull out >10000 times
-
Operating temperature:
-
-30°C ~ +50°C
-
Body charged:
-
V0 non flammable plastics
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
Type 2 EV cable
-
Brand Name:
-
duosida
-
Operating voltage:
-
400V AC
-
Insulation resisitance:
-
>1000MΩ(DC500V)
-
Therminal temperature rise:
-
<50K
-
Withstand voltage:
-
2000V
-
Contact impedance:
-
0.5mΩ Max
-
Vibration resistance:
-
Meet JDQ53.36.1.1-53.36.1.2 requirements
-
Mechanical life:
-
no-load socket in/pull out >10000 times
-
Operating temperature:
-
-30°C ~ +50°C
-
Body charged:
-
V0 non flammable plastics
Product Parameters

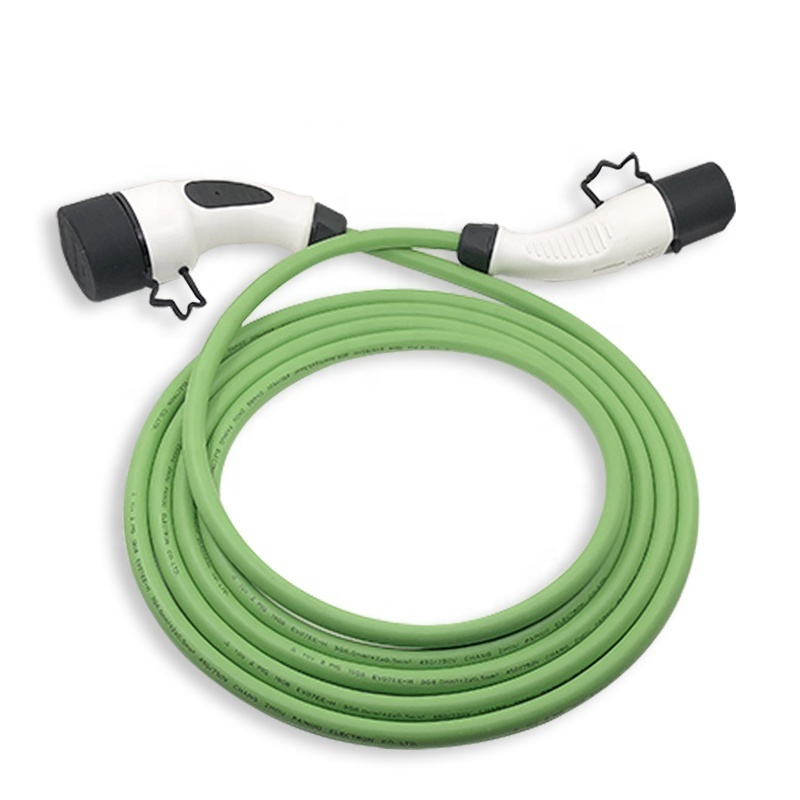

32A 3 phase Type 2 EV cable electric car charger cable 22kw T2-T2 charging cable
32A 3 phase EV cable electric car charger cable 22kw T2-T2 charging cable
Type 2 to Typ 2 | 32A | 3 phase | 22KW | 380V AC | 5m
|
Product Name
|
EV Charging cables cords / Mode 3 EV charger
|
|
EV connector
|
Type 2 to Type 2
|
|
Rated voltage
|
380V AC
|
|
Current
|
32A 3P
|
|
Power
|
22KW
|
|
Cable
|
5m / customizable
|
|
Cable specifications
|
5*6mm²+2*0.5mm²
|
|
Cable shape
|
straight ( acquiescent ) / Coiled
|
|
Cable colour
|
Black ( acquiescent ) / Green / Orange / customizable
|
|
Warranty
|
12 months
|
|
Certificate
|
TUV-CE
|
|
Waterproof grade
|
IP54
|
|
Operating Temperature
|
-30C ~ +50C
|
