Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Touyinger
-
Model Number:
-
H96 Max H616
-
Product Name:
-
Touyinger H96 Max 2gb 4gb Ram 16gb 32gb 64gb Smart Tv Box
-
OS:
-
Android 10.0
-
RAM:
-
2GB/4GB
-
ROM:
-
16GB/32GB/64GB
-
CPU:
-
Allwinner H616 Quad Core ARM Cortex A53
-
GPU:
-
G31MP2 Supports OpenGL ES 3.2/2.0/1.0, Vulkan 1.1, OpenCL 2.0
-
Support:
-
Support H.265, 4K 60pfs, HD 2.0, USB3.0
-
BT:
-
BT 4.0
-
Keywords:
-
Tvbox
-
Power:
-
DC 5V/2A Power ON blue
Quick Details
-
Processor Core:
-
Quad Core
-
Support Resolution:
-
1920 x 1080
-
WiFi:
-
802.11n 2.4G/5GHz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Touyinger
-
Model Number:
-
H96 Max H616
-
Product Name:
-
Touyinger H96 Max 2gb 4gb Ram 16gb 32gb 64gb Smart Tv Box
-
OS:
-
Android 10.0
-
RAM:
-
2GB/4GB
-
ROM:
-
16GB/32GB/64GB
-
CPU:
-
Allwinner H616 Quad Core ARM Cortex A53
-
GPU:
-
G31MP2 Supports OpenGL ES 3.2/2.0/1.0, Vulkan 1.1, OpenCL 2.0
-
Support:
-
Support H.265, 4K 60pfs, HD 2.0, USB3.0
-
BT:
-
BT 4.0
-
Keywords:
-
Tvbox
-
Power:
-
DC 5V/2A Power ON blue
Recommend Products
Product Description

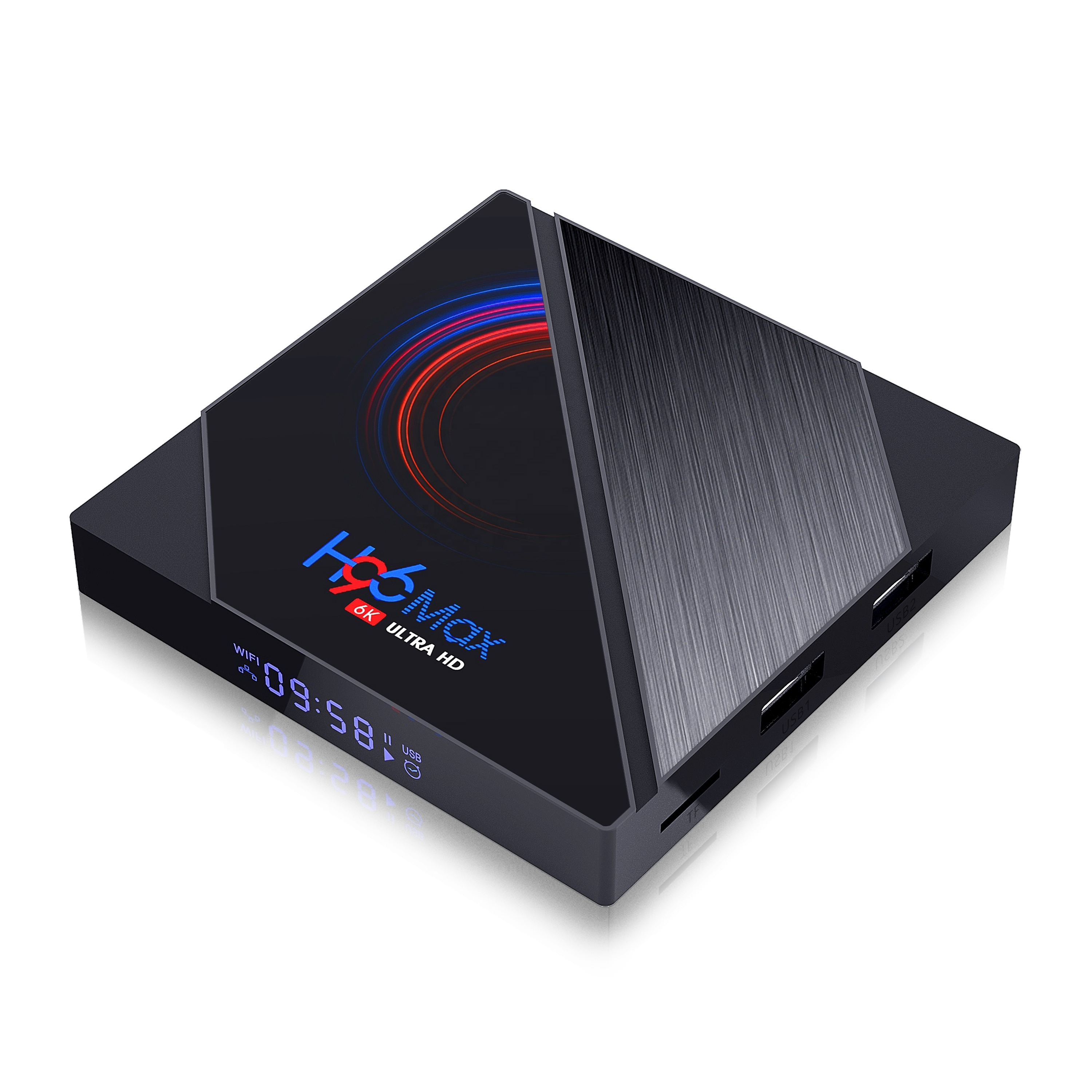

Touyinger H96 Max Android 10.0 Allwinner H616 2gb 4gb Ram 16gb 32gb 64gb Smart tvbox iptv set top box Android Box
|
Product Name
|
Touyinger H96 Max Android 10.0 Allwinner H616 2gb 4gb Ram 16gb 32gb 64gb Smart tvbox iptv set top box Android Box
|
|
CPU
|
Allwinner H616 Quad Core ARM Cortex A53
|
|
GPU
|
G31MP2 Supports OpenGL ES 3.2/2.0/1.0, Vulkan 1.1, OpenCL 2.0
|
|
Memory
|
2GB/4GB DDR3L
|
|
Flash
|
16G/32GB/64GB eMMC
|
|
WIFI
|
2.4GHz+5GHz
|
|
Blue-tooth
|
BT 4.0
|
|
I/O
|
1*HDMI, 1*AV OUT, 2*USB, 1*IR Receiver, 1*RJ45, 1*RJ45
|
|
Power
|
DC 5V/2A Power ON blue
|
|
|
Video Engine (AVE) with dedicated hardware decoders and encoders
|
|
|
Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps
|
|
|
Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
|
|
|
Video Decoding
|
|
|
VP9 Profile 2 up to 4Kx2K@60fps
|
|
|
H.265 Main10@L5.1 up to 4Kx2K@60fps,or 6K@30fps
|
|
|
AVS2-P2 Profile up to 4Kx2K@60fps
|
|
|
H.263 BP up to 1080P@60fps
|
|
|
H.264 BP/MP/HP@L4.2 up to 4Kx2K@30fps
|
|
|
MPEG-4 SP/ASP@L5 up to 1080P@60fps (ISO-14496)
|
|
|
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
|
|
|
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
|
|
|
Xvid up to 1080P@60fp
|
|
|
Sorenson Spark up to 1080P@60fps
|
|
|
VP8 up to 1080P@60fps
|
|
|
AVS/AVS+ JiZhun Profile up to 1080P@60fps
|
|
|
WMV9/VC1 SP/MP/AP up to 1080P@60fps
|
|
|
JPEG HFIF file format up to 45MPPS
|
|
|
Multiple language and multiple format sub-title video support
|
|
|
MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
|
|
|
Supports JPEG thumbnail, scaling, rotation and transition effects
|
|
|
Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
|
|
|
Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
|
|
|
Audio Codec
|
|
|
Two audio digital-to-analog(DAC) channels
|
|
|
Support 16-bit and 20-bit sample rate
|
|
|
8kHz to 192kHz DAC sample rate
|
|
|
95+/-2dB SNR@A-weight,-80+/-dB THD+N,output Level more than 0.55Vrms
|
|
|
One128*24-bits FIFO for DAC data transmit
|
|
|
Built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x32bits x 8ch
|
|
|
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
|
|
|
Built-in stereo audio DAC
|
|
|
Supports concurrent dual audio stereo channel output with a combination of analog+PCM or I2S+PCM
|
|
|
JPG,JPEG,BMP,GIF,PNG,TIF
|
|
Language
|
English French German Spanish Italian etc multilateral languages
|
|
Accessories
|
HDMI cable *1, IR Remote *1, User Manual *1, Package box *1, Power adapter *1
|
