Quick Details
-

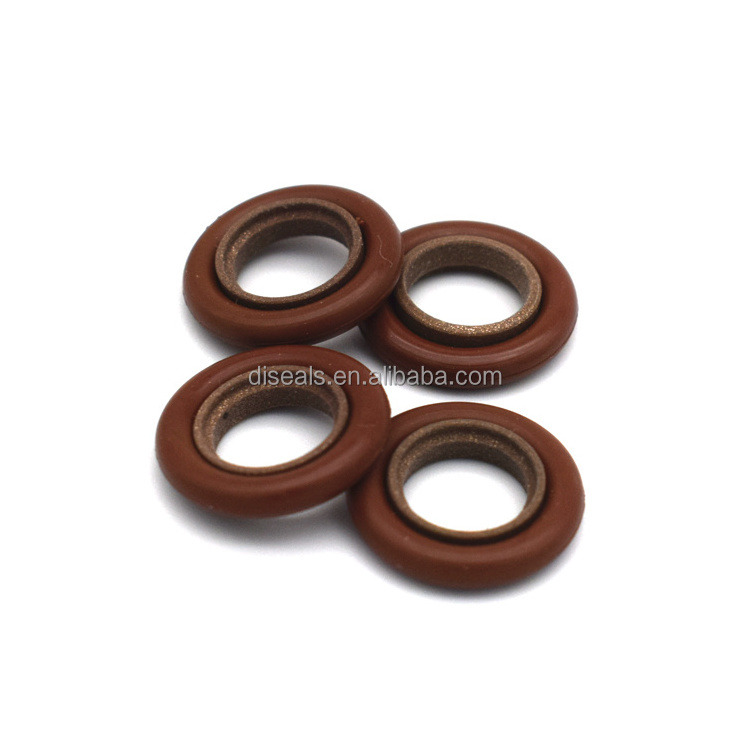

Product name:
-
Step seal
-
Type:
-
Hydraulic rod seal
-
Material:
-
PTFE filled Bronze+NBR
-
Color:
-
Brown+Black
-
Hardness:
-
65shore D
-
Working temperature:
-
35~+80℃
-
Application:
-
Hydraulic cylinder
-
Pressure:
-
80 MPa
Quick Details
-
Size:
-
8x15.3x3.2mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
BSJ/GSJ/STEP Seal
-
Product name:
-
Step seal
-
Type:
-
Hydraulic rod seal
-
Material:
-
PTFE filled Bronze+NBR
-
Color:
-
Brown+Black
-
Hardness:
-
65shore D
-
Working temperature:
-
35~+80℃
-
Application:
-
Hydraulic cylinder
-
Pressure:
-
80 MPa
Products Description
Description Of Hydraulic Cylinder Seals
Hydraulic cylinder seals are used to seal the opening between various components in the hydraulic cylinder. They are designed to retain hydraulic fluids, exclude solid or liquid contaminants, and maintain hydraulic pressure. These tasks require a variety of different seal designs and performance-enhancing features. Seal material must conform to irregularities in metal surfaces to block fluid passage. To adjust to clearance gap size changes, the seal must expand or compress rapidly to follow dimensional variations. Finally, to resist being extruded into gaps, the seal must have sufficient modulus and hardness to withstand shear stress produced by system pressure.
Successful sealing involves containment of fluid within fluid power systems and components while excluding contaminants. The surfaces in contact with a seal determine what type to use. The surface can either be static or dynamic—in motion or without movement. Static seals are typically used when there is no relative motion between mating surfaces. Dynamic seals are the opposite. They are used when there is motion between surfaces. This can be either reciprocating or oscillating motions.
Hydraulic Rod Seals-GSJ Step Seals
Rod seals may have the most difficult task in sealing hydraulic cylinders because they must keep hydraulic oil from leaking into the surrounding environment while maintaining a thin coating of oil on the rod surface.
Rod seals may have the most difficult task in sealing hydraulic cylinders because they must keep hydraulic oil from leaking into the surrounding environment while maintaining a thin coating of oil on the rod surface.
Rod seals act as a pressure barrier to keep the operating fluid inside the cylinder. They also provide a thin lubrication film on the piston rod that lubricates the rod seals and wiper seals. The lubricant also inhibits corrosion of the piston rod surface. However, the lubrication film must be thin enough so it returns internal to the cylinder during the return stroke. Selecting profiles and materials for a rod sealing system is a complex task, considering all possible cylinder designs and application criteria. Rod and buffer seals come in many different profiles and in a wide range of materials, series, and sizes to perform under a variety of operating conditions and applications.
The fields of application
Construction Machinery：
Excavator /Bull Dozers /Graders/Skid Loaders
Dump Trucks /Wheel loaders
Hydraulic Equipment/Press Cutting Machines
Hydraulic Equipment：
Press/Cutting Machines
Bending Machines/Excavator
Injection Molding Machines
The limit of application
Pressure (MPa):0~35
Temperature (℃):-35~100(NBR)/-20~150(FKM)
Compatibility of hydraulic fluid oil
NBR and FKM are good at Oil+Water Emulation Type
NBR and FKM are good at Water+Glycol Type
NBR is good at Silicon Oil
FKM is good at Phosphate Ester Type
FKM is very good at Silicon Oil and Torque Converter Oil
Details Images
Recommend Products
Rod Seals-A1 PU 93+/-2 ShoreA
Rod Seals-BS PU93+/-2 ShoreA
Rod Seals-Hallite605 PU Orange
Rod Seals- Hallite621-42984
Rod Seals-R2 PU93+/-2 ShoreA
Rod Seals-U2 PU93+/-2 ShoreA
Workshop
Packing&Shipping
New Cartons and Woodend Case are our Standard Packing of Seals Rings.
The Shipping ways we have DHL,UPS,TNT,FedEX or other Specified Shipping Way for Seals Rings.
