Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2620X2000X1320MM
-
Weight (KG):
-
585
-
Power (kW):
-
7.5
-
Warranty:
-
One Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Effective working area:
-
1800mm*1300mm
-
Cutting speed:
-
0-1200mm/s
-
Cutting thickness:
-
0-25mm ( customized cutting machine can up to 50mm)
-
Method of fixing material:
-
Divisional vacuum absorption
-
Knifes:
-
Oscillating blade head, Milling Cutter, Hobbing Cutter, Creasing Wheel
-
Pen types:
-
Common signing pen, Oil pen, ball-point pen, Silver pen
-
Machine resolution:
-
0.01mm
-
Software resolution:
-
0.025mm
-
Motor:
-
Servo motor
-
Certification:
-
CE ISO
Quick Details
-
No-load Speed(rpm):
-
1200 rpm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RUIZHOU
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2620X2000X1320MM
-
Weight (KG):
-
585
-
Power (kW):
-
7.5
-
Warranty:
-
One Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Effective working area:
-
1800mm*1300mm
-
Cutting speed:
-
0-1200mm/s
-
Cutting thickness:
-
0-25mm ( customized cutting machine can up to 50mm)
-
Method of fixing material:
-
Divisional vacuum absorption
-
Knifes:
-
Oscillating blade head, Milling Cutter, Hobbing Cutter, Creasing Wheel
-
Pen types:
-
Common signing pen, Oil pen, ball-point pen, Silver pen
-
Machine resolution:
-
0.01mm
-
Software resolution:
-
0.025mm
-
Motor:
-
Servo motor
-
Certification:
-
CE ISO
Ruizhou Automatic CNC Carbon Fiber Sheet Cutting Machine Factory

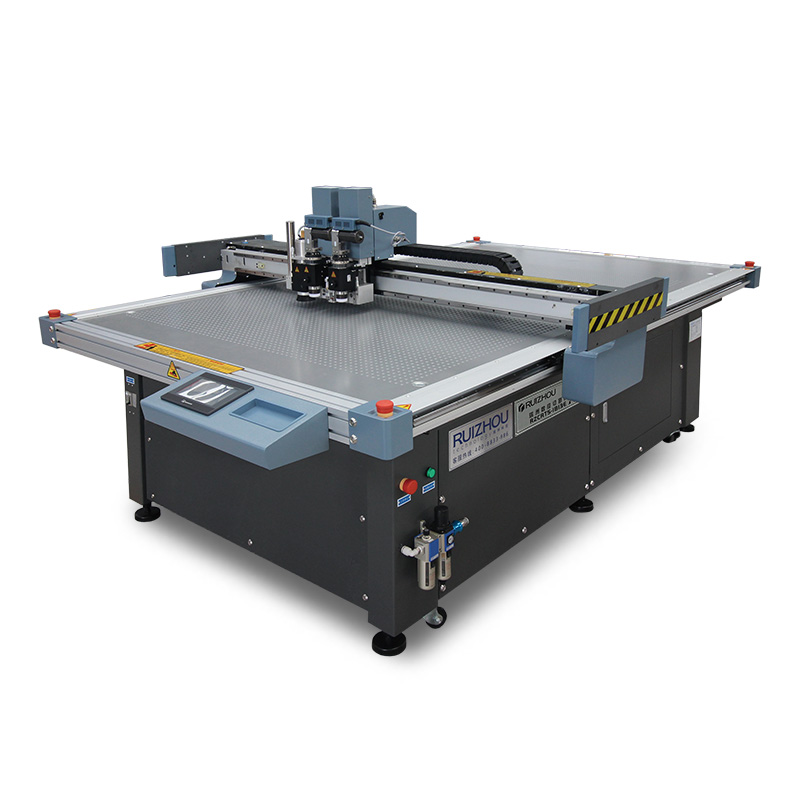

Brief introduction of RZCRT5-1813E Carbon Fiber Cutting Machine
Brand name: RUIZHOU
Model: RZCRT5-1813E computer control carbon fiber cutting machine
Applicable cutting materials: gasket, composite material, cardboard, corrugated board, grey board, honeycomb board, KT board, plastic sheet, cloth fabric, car mats, PVC, PU, etc.
Application industries: composite materials, automotive, package, advertisement, cloth, bag, footwear, construction industries.
Functions: oscillating knife cutting, and pen drawing
Equipments: multi-functional combined cutting tools(oscillating blade,), CCD positioning system.
Advantages: easy for users to handle; suitable for samples making because of its’ small size.
Parameter of RZCRT5-1813E Carbon Fiber Cutting Machine
| Model of cutting machine | RZC RT-1813E |
| RZC RT-1813E | 18 00mm× 13 00mm |
| Cutting speed | 0-1200 mm/s |
| Cutting thickness | 0-25 mm ( customized cutting machine can up to 50mm) |
| Method of fixing material | Divisional vacuum absorption |
| Knifes | Oscillating blade head, Milling Cutter, Hobbing Cutter, Creasing Wheel |
| Pen types | Common signing pen, Oil pen, ball-point pen, Silver pen |
| Human Machine Interface (HMI) | Touch screen LCD |
| Machine resolution | 0.01mm |
| Software resolution | 0.025mm |
| Interface of transmission | Network port |
| Gearing | Linear guide and gear rack |
| Motor | Servo motor |
| Machine voltage | 220v |
| Air pump power | 7.5KW |
| Energy saving device | Frequency converter |
| Safety device | Automatic laser device |
| Software system | Independent research and development CNC software |
| Control system | Cutting table and computer display |
Cutting samples of RZCRT5-1813E Carbon Fiber Cutting Machine
Other Material Cutting Samples
Six advantages of Carbon Fiber Cutting Machine
Packaging of Our CNC C utting Machine
RUIZHOU computer control fabric cutting machines are packaged with standard export wooden case which can guarantee your machine safety.
