Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Jeta
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
2170X2160X1510mm
-
Weight:
-
2600 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Driving force:
-
Hydraulic Automatic Paper Processing Machinery
-
Driving mode:
-
Worm gear drive
-
Name:
-
paper cutter machine guillotine
-
Model:
-
JT-QZYK920DH-10 Used Paper Cutter
-
Automatic Grade:
-
Munual Hydraulic Packaging Machines
-
Power:
-
4kw Easy To Operate Paper Cutter
-
Usage:
-
Wide Usage Automatic Post-press Equipment
-
Advantage:
-
High Cutting Precision
-
After-sales service:
-
Online Paper Embossing Machine
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
45cycles/min
-
Max. workable width:
-
920mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Jeta
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
2170X2160X1510mm
-
Weight:
-
2600 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Driving force:
-
Hydraulic Automatic Paper Processing Machinery
-
Driving mode:
-
Worm gear drive
-
Name:
-
paper cutter machine guillotine
-
Model:
-
JT-QZYK920DH-10 Used Paper Cutter
-
Automatic Grade:
-
Munual Hydraulic Packaging Machines
-
Power:
-
4kw Easy To Operate Paper Cutter
-
Usage:
-
Wide Usage Automatic Post-press Equipment
-
Advantage:
-
High Cutting Precision
-
After-sales service:
-
Online Paper Embossing Machine
Products Description
Features:
*
Usage:
Continuous Easy Maintenance Guillotine/ Paper Cutter/ Paper Cutting Machine
is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.
* Computer: It is equipped with imported whole set computer controlling system. The computer can do self-diagnose while malfunction, and do self-protection while wrong operation. The paper sending motor power controlled by imported transducer, the speed of paper sending reaches 6-12m/min, and the position accuracy can be 0.05 mm.
* Single Hydraulic and Single Worm Wheel Device: The hydraulic device pass CE certificate.
* Double Guide Device: the paper pusher adopts imported double linear guide and roller ball screw.,which can prolong the machine use life, and can bear the high speed paper delivering.
* Photo Cell: it is equipped with a photo cell safety protection device.
* Over Load Protection Device: convenient knife changing device.
* Worktable Chrome Treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.
* Air Ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.
* Cutting Controller: both of the user’s hands operate the machine. It can cut paper in one time.
* Electronic Knife Lock: when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.
* Main Electric Device are imported from Germany, French, Japan, etc.
* Computer: It is equipped with imported whole set computer controlling system. The computer can do self-diagnose while malfunction, and do self-protection while wrong operation. The paper sending motor power controlled by imported transducer, the speed of paper sending reaches 6-12m/min, and the position accuracy can be 0.05 mm.
* Single Hydraulic and Single Worm Wheel Device: The hydraulic device pass CE certificate.
* Double Guide Device: the paper pusher adopts imported double linear guide and roller ball screw.,which can prolong the machine use life, and can bear the high speed paper delivering.
* Photo Cell: it is equipped with a photo cell safety protection device.
* Over Load Protection Device: convenient knife changing device.
* Worktable Chrome Treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.
* Air Ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.
* Cutting Controller: both of the user’s hands operate the machine. It can cut paper in one time.
* Electronic Knife Lock: when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.
* Main Electric Device are imported from Germany, French, Japan, etc.
Specification
|
Model
|
|
JT-QZK920DH-10
|
|
|
Max cutting width
|
cm
|
92
|
|
|
Max cutting length
|
cm
|
100
|
|
|
Max cutting height
|
cm
|
13
|
|
|
Max clamping pressure
|
N
|
30000
|
|
|
Cutting speed
|
cycles/min
|
45
|
|
|
Cutting motor power
|
kw
|
3
|
|
|
Wind pump motor power
|
kw
|
0.55
|
|
|
Sending paper motor power
|
kw
|
0.55
|
|
|
Net weight
|
Kg
|
2600
|
|
|
Outline dimension (LXWXH)
|
mm
|
2170x2160x1510
|
|
|
Packing dimension(LXWXH)
|
mm
|
2290x1320x1800
|
|
Details Images
Product packaging

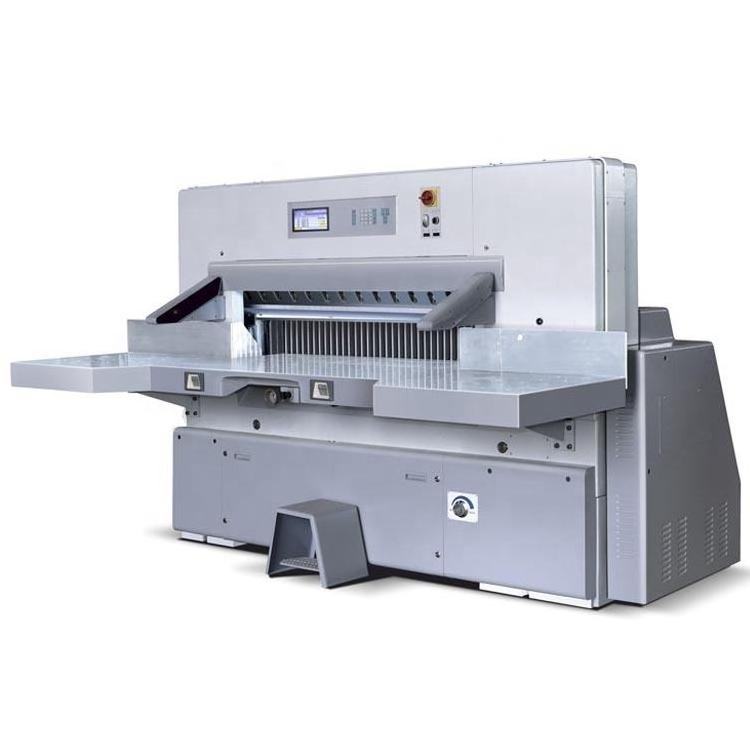

![[JT-QZYK920DH-10]CE Hydraulic Guillotine Machine Paper Office Cutter A3 Guillotine Electric Paper Cutter Cutting Machine](https://cdn.bestsuppliers.com/seo_products_img/jeta/7fc8da1f5feb3b4b93fcf3b93101c9e8.jpg!/rotate/180/sq/300)
