Quick Details
-
Voltage:
-
3PH-380V-50Hz or according to customer need
-
Dimension(L*W*H):
-
2300*750*1500mm
-
Weight:
-
660 KG
-
Power:
-
22KW
-
Working Temperature Range:
-
-5~35degreeC
-
Product name:
-

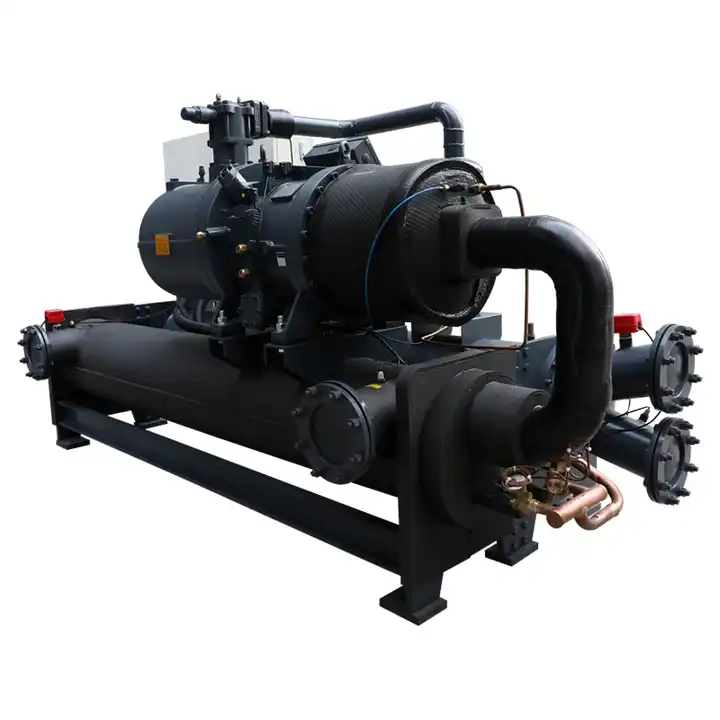

Water Cooled Screw Chiller
-
Application:
-
Industrial Cooling Solutions
-
Keyword:
-
Water Chiller System
-
Cooling capacity:
-
58kw
-
Cooling type:
-
Screw Air Chiller
-
Compressor:
-
Hanbell
-
Refrigerant:
-
R134a/R407c/R404a
-
Usage:
-
Plant Cooling Equipment
-
After Warranty Service:
-
Online Technical Support
-
After-sales Service Provided:
-
Online Support
Quick Details
-
Condition:
-
new
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TAICH
-
Voltage:
-
3PH-380V-50Hz or according to customer need
-
Dimension(L*W*H):
-
2300*750*1500mm
-
Weight:
-
660 KG
-
Power:
-
22KW
-
Working Temperature Range:
-
-5~35degreeC
-
Product name:
-
Water Cooled Screw Chiller
-
Application:
-
Industrial Cooling Solutions
-
Keyword:
-
Water Chiller System
-
Cooling capacity:
-
58kw
-
Cooling type:
-
Screw Air Chiller
-
Compressor:
-
Hanbell
-
Refrigerant:
-
R134a/R407c/R404a
-
Usage:
-
Plant Cooling Equipment
-
After Warranty Service:
-
Online Technical Support
-
After-sales Service Provided:
-
Online Support
Products Description
TAICH Water cooled chiller with the follow performance which can ensure your future use feel happy.
3. System configuration of water flow, overload protection, always protect the safety of user equipment.
1. This industrial water chiller can alternate operation automatically according to load change, to balancing the operating load of the compressor, greatly extending the working life of the chillers, with trouble-free working life of more than 45,000 hours.
2. Equipped with one HANBELL or BITZER screw compressor, suitable for the cooling capacity 30 Ton to 300 Ton needs.
3. System configuration of water flow, overload protection, always protect the safety of user equipment.
4. Standard high and low pressure detection sensor, flow switch, fusible plug design, overload protection device, exhaust temperature is too high, water temperature detection and temperature difference is too large.
Product Paramenters
|
Model
|
|
TC-90WE
|
|
|
Cooling capacity
|
0°C kw
|
75
|
|
|
|
-5°C kw
|
63
|
|
|
|
-10°C kw
|
52
|
|
|
Power Supply
|
|
3PH-380V-50Hz or Customized according to customer needs
|
|
|
refrigerant
|
Type
|
R22/R407c/R134a/R507
|
|
|
|
Control
|
Thermostatic expansion valve
|
|
|
Compressor
|
Type
|
Semi-hermetic screw type
|
|
|
|
kw Power
|
22
|
|
|
|
Start
|
Y-Δ
|
|
|
|
Capacity
|
25-50-75-100（%）
|
|
|
Evapoirator
|
Type
|
High effciency copper tube shell and tube type
|
|
|
|
0° m³/h Flow
|
12.9
|
|
|
|
-5° m³/h Flow
|
10.8
|
|
|
|
-10° m³/h Flow
|
8.9
|
|
|
|
Inlet/Outlet
|
DN50
|
|
|
Condenser
|
Type
|
High efficiency threaded copper tube shell and tube type
|
|
|
|
m³/h Flow
|
18.3
|
|
|
|
Inlet/Outlet
|
DN50
|
|
|
Protection System
|
|
Compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen
protection. |
|
|
Dimension
|
mm L
|
2300
|
|
|
|
mm W
|
750
|
|
|
|
mm H
|
1500
|
|
|
Weight
|
kg
|
660
|
|
