Quick Details
-
Place of Origin:
-
Guangdong, China
-
Application:
-
led mirror strip
-
Brand:
-
touch key button
-
Size / Dimension:
-
OD 10MM
-
Color:
-
blue
-
Operating Temperature:
-
-20c to 60c
-
Voltage Rating - DC:
-
3V to 5V
-
Sensing distance:
-
3mm
-
3V to 5V:
-
Touch level output
Quick Details
-
Brand Name:
-
Taidacent
-
Model Number:
-
led mirror touch button
-
Type:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Application:
-
led mirror strip
-
Brand:
-
touch key button
-
Size / Dimension:
-
OD 10MM
-
Color:
-
blue
-
Operating Temperature:
-
-20c to 60c
-
Voltage Rating - DC:
-
3V to 5V
-
Sensing distance:
-
3mm
-
3V to 5V:
-
Touch level output
Taidacent 3V 5V Led Light Mirror Touch Sensor Switch Round On Off Capacitive Touch PCB Module Capacitive Touch Switch Button
Product Description
A\B\C three custom I function descriptions
The factory default state is:

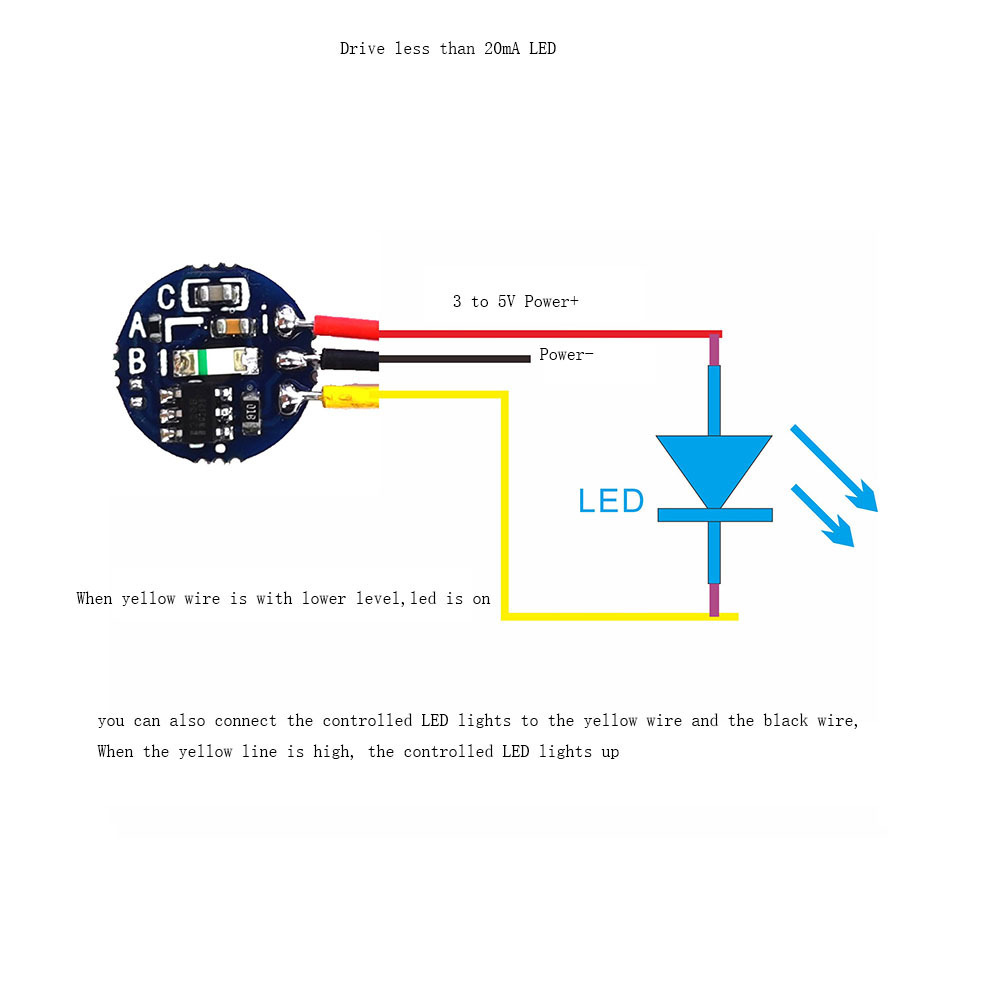

In the jog mode, the yellow wire outputs a high level when powered on, and the indicator light is on after touching the
The yellow wire goes low.
(point A has resistance, point B has no resistance, point C has 6pF capacitor)
A
(default 0R resistor)
this module when the yellow line is |
Output state selection after power-on
The indicator light is on when the level is low
When there is an OR resistance at point A:
After power-on, the yellow line outputs high level, and after touch, it outputs low level
When there is no 0R resistor at point A"
After power on, the yellow line outputs a low level, and when touched, it outputs a high level
B
(No OR resistor by default)
Latch mode, jog mode
Latch mode when there is an OR resistor at point B
(click on/off again)
When there is no OR resistance at point B, it is in jog mode
(action when touched, recovery when released)
C
Sensitivity adjustment
Adjust the distance of touch sensing, the default installation of 6PF is the maximum distance (3mm)
If you want to reduce the sensitivity, you can install 1 ~ 50PF according to the actual situation
Capacitance, the smaller the capacitance, the higher the sensitivity, the larger the capacitance, the lower the sensitivity
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Taidacent
|
|
Model Number
|
led mirror touch button
|
|
Type
|
Other
|
|
Application
|
led mirror strip
|
|
Supplier Type
|
ODM
|
|
Brand
|
touch key button
|
|
Features
|
|
|
Mounting Feature
|
Front of Panel
|
|
Size / Dimension
|
OD 10MM
|
|
Color
|
blue
|
|
Operating Temperature
|
-20c to 60c
|
|
Mounting Type
|
|
|
Current Rating (Amps)
|
|
|
Voltage Rating - DC
|
3V to 5V
|
|
Sensing distance
|
3mm
|
|
3V to 5V
|
Touch level output
|
Packing & Delivery
box
