Quick Details
-
Max Sewing Thickness:
-
1200gsm
-
Voltage:
-
220V
-
Power:
-
2KW, 2KW
-
Dimension(L*W*H):
-
2.8*2.9*1.15m
-
Weight:
-
500, 500
-
Maximum manufacturing size:
-
2200*2400mm
-
Maximum drop needle size:
-
2000*2200mm
-
Spindle speed:
-
1500-2000r/min
-
Quilting Thickness:
-
1200gsm
-
Warranty period:
-
one year
-
Needle works:
-
Needle beam
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KIVAS
-
Max Sewing Speed:
-
1500r/min
-
Max Sewing Thickness:
-
1200gsm
-
Voltage:
-
220V
-
Power:
-
2KW, 2KW
-
Dimension(L*W*H):
-
2.8*2.9*1.15m
-
Weight:
-
500, 500
-
Maximum manufacturing size:
-
2200*2400mm
-
Maximum drop needle size:
-
2000*2200mm
-
Spindle speed:
-
1500-2000r/min
-
Quilting Thickness:
-
1200gsm
-
Warranty period:
-
one year
-
Needle works:
-
Needle beam
Product Display
This machine is widely used in various quilts, sleeping bags, bed covers, curtains and other products.
The machine head adopts high precision servo motor, the latest version of touch screen computer, synchronization system, so as to achieve high stability, low noise high speed quilting; Display quilting status and stitch regularly. Automatically return to unloading area when power is off. Automatically remember function when power is off.
Covering only 3/5 of the area of other quilting machines, suitable for stores and malls.
Video Description
Parameter
|

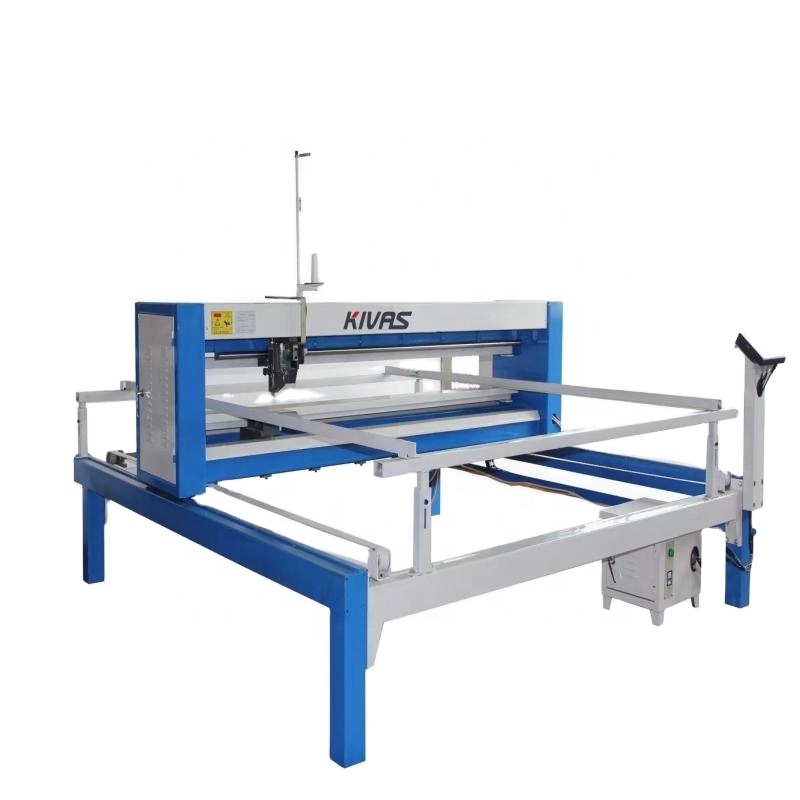

Single-pin computer quilting machine KWS-DF-5P
|
|
|
|
Quilting size
|
2200*2400mm
|
|
|
Maximum needle drop size
|
2000*2200mm
|
|
|
Machine size
|
2800*2900*1150mm
|
|
|
Total Weight（KG）
|
500
|
|
|
Head drive
|
servo motor
|
|
|
X and Y axis
|
stepper motor
|
|
|
Quilting thickness
|
≈1200gsm
|
|
|
Spindle speed
|
500-2500r/min step2-7mm
|
|
|
Voltage（V/Hz）
|
220V/50HZ
|
|
|
Power
|
2000w
|
|
|
volume after packing
|
2.95*0.88*1100mm/600kg
|
|
|
needle type
|
18- 23#
|
|
|
Single-pin computer quilting machine KWS-DF-5PJ
|
|
|
|
Quilting size
|
2400*2600mm
|
|
|
Maximum needle drop size
|
2200*2400mm
|
|
|
Machine size
|
3000*3100*1150mm
|
|
|
Total Weight（KG）
|
600
|
|
|
Head drive
|
servo motor
|
|
|
X and Y axis
|
stepper motor
|
|
|
Quilting thickness
|
1200gsm
|
|
|
Spindle speed
|
500-2000r/min step2-7mm
|
|
|
Voltage（V/Hz）
|
220V/50HZ
|
|
|
Power
|
2000w
|
|
|
volume after packing
|
3150*880*1150mm/700kg
|
|
|
needle type
|
18-23#
|
|
Products Application
Single-pin computer quilter KWS-DF-5P, mainly used for quilting quilts, bed covers, bedcovers and other bedding. The machine has good stability, low price and simple operation.
The computer contains all the patterns on the market, the pattern size can be adjusted,users can choose to add patterns according to the needs.
Packaging & Shipping
FAQ
1. How long is the warranty for this machine?
Non-human factor damage is guaranteed for one year.
2. After-sales service?
We can provide high quality after-sales service, video online after-sales, can send engineers to your factory for training and installation.
3. How to control the quality?
We have professional engineers and inspectors to make sure that every part of the machine works well before leaving the factory.
4. How can I contact you?
You can contact us through TM, Skype, Whatsapp, Wechat, QQ, Email
5. What are the terms of payment?
Telegraphic transfer, Western Union, Paypal, cash, letters of credit, trade guarantees, etc.
6. Is your company a manufacturer or a trading company?
We are a professional manufacturer with our own international trade department so that we can better understand the needs of our customers and offer reasonable prices.
